Siemens 6ES7131-7RF00-0AB0

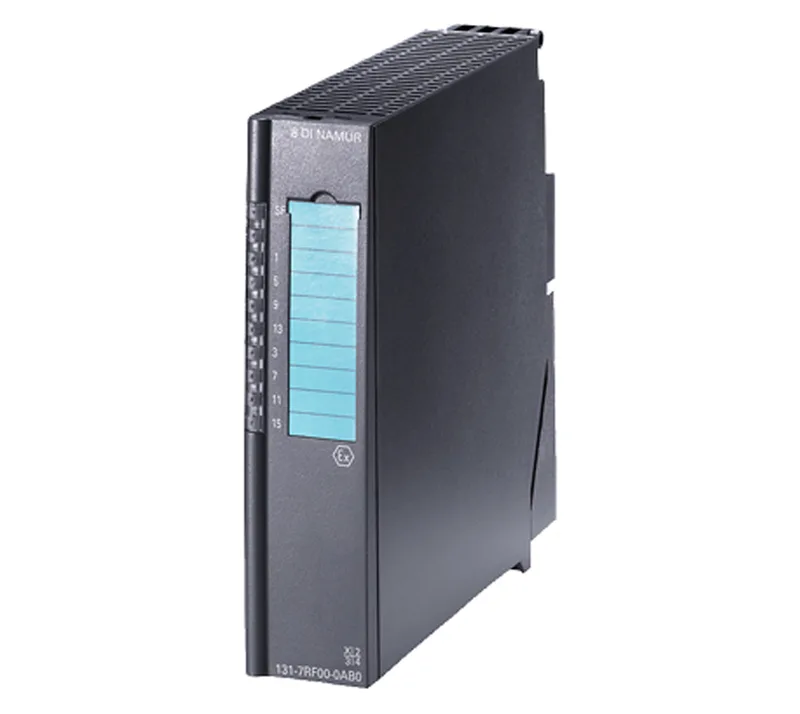

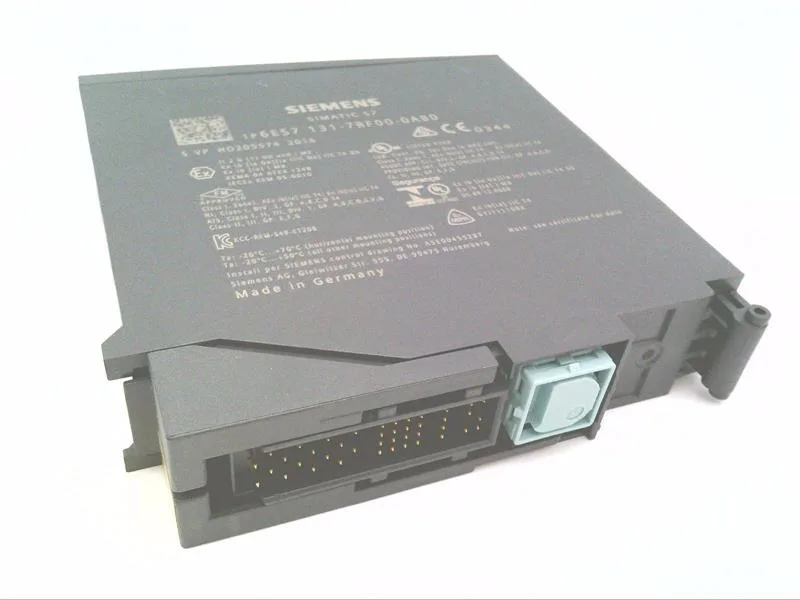

Siemens 6ES7131-7RF00-0AB0 ET200iSP 8DI NAMUR, Ex ib

MPN 6ES7131-7RF00-0AB0
Active

SIMATIC DP ET200iSP, 8 DI NAMUR Ex ib (ia Ga) IIC T4 Gb, order code 6ES7131-7RF00-0AB0, 30 mm wide, 5 kHz counting frequency.

$247.65 – $501.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7131-7RF00-0AB0 specifications
ParameterValue
Depth136.5 mm
Width30 mm
Height129 mm

Product details

The Siemens 6ES7131-7RF00-0AB0 is an ET200iSP electronic module providing 8 intrinsically safe NAMUR digital inputs for hazardous area applications, certified Ex ib (ia Ga) IIC T4 Gb and Ex ib [ia IIIC Da] IIC T4 Gb for gas and dust zones. Each channel can count at up to 5 kHz with a 20 m cable; drop to 1 kHz at 100 m and 500 Hz at 200 m — keep this in mind for encoder runs longer than a couple meters. Diagnostics include parameterizable alarms and a group error LED, with wire-break and short-circuit detection built in for NAMUR sensors.

Specs that matter for the BOM

Shielded cable max 500 m per channel; unshielded is shorter, but the datasheet doesn't give a number — treat 500 m as the hard ceiling with shielded twisted pair. Counting modes: normal and periodic count function, plus frequency measurement with gate times 50 ms, 200 ms, or 1 s — enough for flow or speed inputs.

Isolation and power

500 V DC isolation between channels and backplane bus, and 60 V DC / 30 V AC between different circuits — safe for mixed-voltage panels. Typical current draw 80 mA, maximum 90 mA from the supply L+ — light on the backplane power budget.

MPN
6ES7131-7RF00-0AB0
