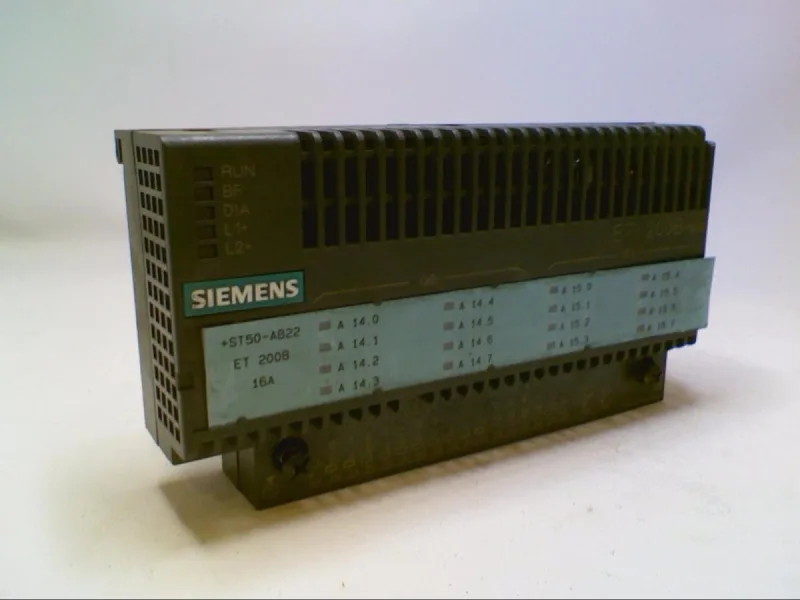

6ES7132-0BH01-0XB0 - Siemens
MPN6ES7132-0BH01-0XB0
*** SPARE PART*** SIMATIC DP, ELECTRONIC MODULE DIGITAL, FOR ET 200B, W=160MM, 16DO 24V DC, (12X0.5A; 4X2A), DEGR. OF PROTECT. IP20,STANDARD
$217.17Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current, max. per circuit / per module | 2 A; 2x 2 A and 6x 0.5 A |
| Permissible range, upper limit (DC) | 30.2 V |
| Permissible range, lower limit (DC) | 18.5 V |
| Output voltage at signal "1" (min.) | UE -3 V |
| Residual current at signal "0", max. | 1 mA |
| Output current up to 60 °C, max. | 4 A |
| Inductive shutdown voltage clamp | typ. (L1+, L2+) -55 V |
| Isolation, channels in groups of | 8 |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Electronic |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 8 Hz |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 60 °C; 40°C for other mountings |
| Operating temperature, horizontal mount, min. | 0 °C |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 100 m |
| Width | 160 mm; EB and TB |
| Height | 130 mm; EB and TB |
| Depth | 60 mm; EB and TB |
| Weight (approx.) | 600 g; EB and TB |
MPN
6ES7132-0BH01-0XB0
