Siemens 6ES7132-4HB01-0AB0 — Digital Output Modules

Siemens 6ES7132-4HB01-0AB0 SIMATIC DP 2 DO Relay 5A

MPN6ES7132-4HB01-0AB0

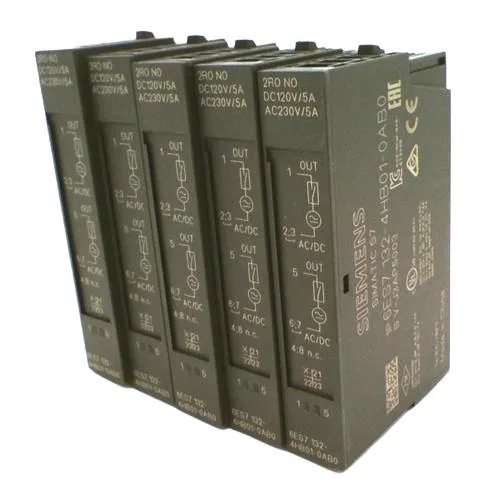

Siemens SIMATIC DP, 5 electronic modules for ET 200S, 2 DO relay 24 V DC-230 V AC/5 A, 15 mm width, Substitute value output with LED SF (group fault) 5 units per packing unit.

$44.44Ref. price · indicative, final on quote
Siemens 6ES7132-4HB01-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-4HB01-0AB0 — Outputs
ParameterValue
Digital outputs2
Output typeRelays
6ES7132-4HB01-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V; From power module
Output current, resistive load, max.2 Hz
Output current at signal "1" (rated)5 A
Power dissipation (typ.)0.6 W
Inductive shutdown voltage clampNo
Isolation between channelsYes
Isolation between channels and backplane busYes
6ES7132-4HB01-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo
Reverse polarity protectionYes
Diagnostics functionNo
Output can drive a digital inputYes
6ES7132-4HB01-0AB0 — Performance
ParameterValue
Switching frequency, inductive load, max.0.5 Hz
Switching frequency, lamp load, max.2 Hz
6ES7132-4HB01-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width15 mm
Height81 mm
Depth52 mm
Weight (approx.)50 g

Product details

Integrator note

The 6ES7132-4HB01-0AB0: Outputs are relay type, isolating between channels and between channels and backplane bus. Short-circuit protection is not built in; external fusing must be provided per channel or per module depending on load.

On CPU/master STOP, the module can substitute a value or keep the last value. Substitute values are connectable as 0 or 1. Diagnostics function is not available, so channel monitoring relies on the green status LED.

Slides into an ET 200S terminal module; 15 mm width matches a single slot. Reverse polarity protection is present on the supply. Inductive load switching is limited to 0.5 Hz; resistive load or lamp load to 2 Hz. Minimum load current for reliable contact wetting is 8 mA. Status indicator per channel shows signal state via green LED. No short-circuit protection onboard; coordinate external fusing per the load type.

Frequently asked questions

What are the width and depth of this module?

Width is 15 mm, depth is 52 mm.

Does this module include diagnostics?

No, it does not have a diagnostics function.

Can this module switch inductive loads?

Yes, but at a maximum switching frequency of 0.5 Hz.

Is the 6AG1123-2DB03-2AX0 a functional substitute?

No, that is an HMI panel with a completely different form factor and function. It is not an ET 200S digital output module.

MPN
6ES7132-4HB01-0AB0
