Siemens 6ES7132-4HB12-0AB0

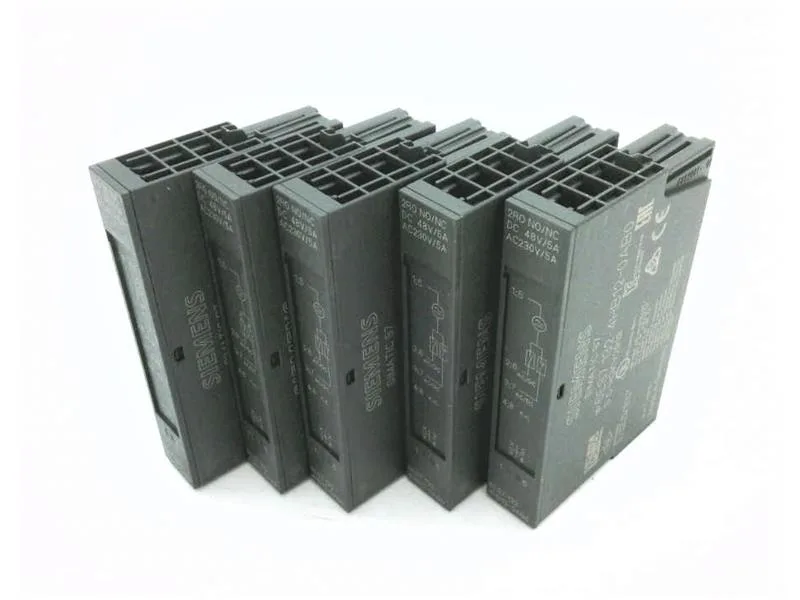

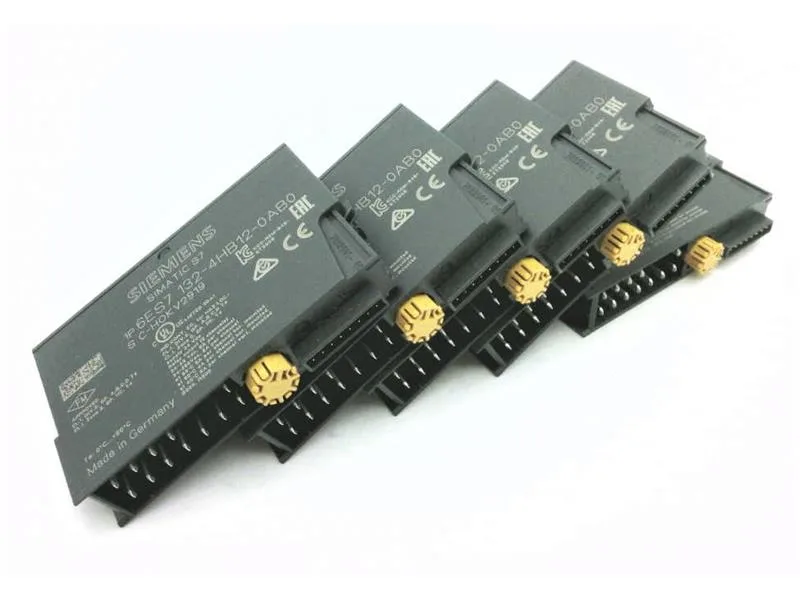

Siemens 6ES7132-4HB12-0AB0 2 DQ Relay, 5 A

MPN 6ES7132-4HB12-0AB0

Siemens SIMATIC DP ET 200S, 2 DQ relay (changeover contact), 24 V – 48 V DC / 5 A, 24 V – 230 V AC / 5 A, 15 mm width, spare part.

$192.02 – $387.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7132-4HB12-0AB0 specifications
ParameterValue
Temp operating max20 °C
Temp operating min10 °C
Depth52 mm
Width15 mm
Height81 mm

Product details

The Siemens 6ES7132-4HB12-0AB0 is a 2-channel relay output module for the ET 200S distributed I/O system. Each channel provides a changeover contact rated for 5 A, switchable from 24 V DC up to 230 V AC per the datasheet. The 15 mm width is noticeably narrow for a relay module, so it packs two isolated outputs into a single slot without crowding adjacent terminals. It is designed for loads where semiconductor outputs would be insufficient—higher inrush or mixed AC/DC circuits—and where the switching frequency stays within the module's limits: 2 Hz maximum for resistive or lamp loads, 0.5 Hz for inductive loads. Below those rates the contacts' mechanical life dominates.

The 5 A rating per output holds for 24 V DC circuits. Minimum load current for reliable contact wetting is 8 mA. Thermal continuous current is also 5 A, so the rating is not a surge-only figure. Short-circuit protection is not built in—an external fuse or breaker is required on each output circuit. The module lacks diagnostics and short-circuit detection, so fault indication must come from the load side or a higher-level diagnostic block. Power loss is 0.6 W typical, which is low enough that the module does not require forced cooling in a standard enclosure. Maximum cable lengths are 1 000 m shielded and 600 m unshielded, adequate for most distributed layouts.
