16 outputs at 120/230 V AC — what it handles

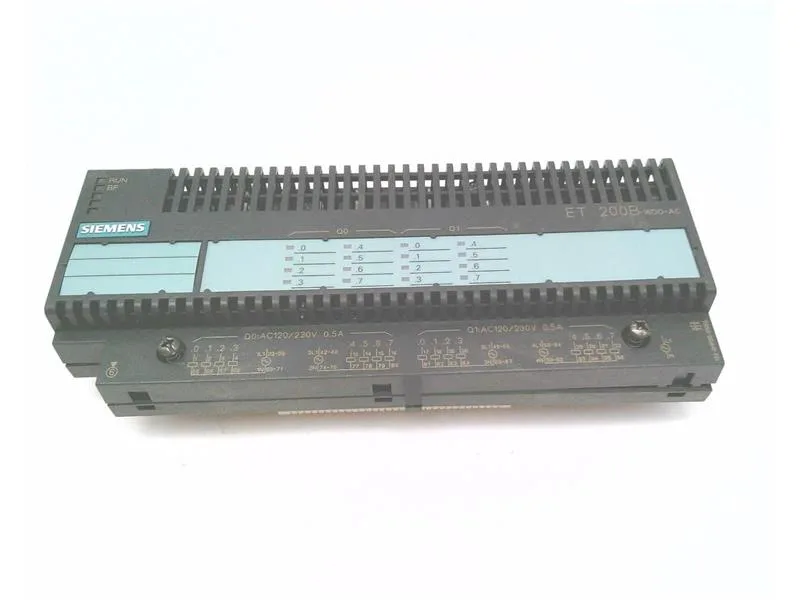

The 6ES7132-0HF00-0XB0: This is the 16-channel digital output submodule for the ET200B distributed I/O family, marked as a spare part. Each channel switches 120/230 V AC at up to 0.35 A at 60 °C, with a total module power loss of 11 W. The outputs are grouped in sets of four with optocoupler isolation between groups. The module communicates over PROFIBUS DP at up to 12 Mbit/s. It draws 150 mA from the backplane bus.
The submodule is 235 mm wide, 130 mm high, and 60 mm deep. It mounts in the ET200B station and uses the TB6/AC terminal block with screw-type or spring-loaded connections for 3- and 4-wire field wiring. Rated for 0 to 60 °C horizontal installation, derated to 40 °C for other mounting orientations. Operates from 795 to 1080 hPa atmospheric pressure.
Listed as current production.
