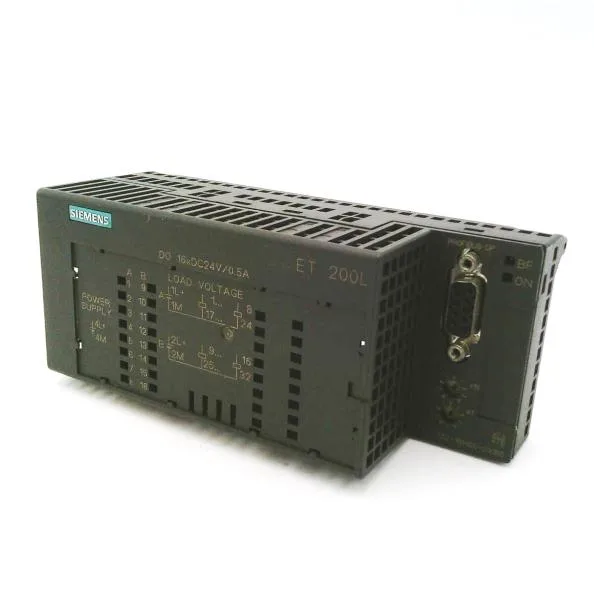

Siemens 6ES7132-1BH00-0XB0 IO module
MPN6ES7132-1BH00-0XB0
***Spare part*** SIMATIC DP, electronic module for ET 200L 16 DO, 24 V DC/0.5 A
$954.71Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current, max. per circuit / per module | 0.5 A |
| Output voltage at signal "1" (min.) | Ua - 3 V |
| Residual current at signal "0", max. | 1 mA |
| Output current up to 60 °C, max. | 2 000 mA |
| Power dissipation (typ.) | 5 W |
| Inductive shutdown voltage clamp | Typ. (L1+ or L2+ / L3+) -55 V |
| Load resistance, upper limit | 28 000 Ω |
| Load resistance, lower limit | 41 Ω |
| Isolation between channels | No |
| Isolation test voltage | 500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Diagnostics function | Yes |
| Short-circuit response threshold (typ.) | 0.7 A |
| Redundant load control | Yes; only outputs of the same group |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 50 µs |
| Output switching delay 1 to 0, max. | 200 µs |
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 8 Hz |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 60 °C; 40°C for other mountings |
| Operating temperature, horizontal mount, min. | 0 °C |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 145 mm |
| Height | 60 mm |
| Depth | 60.5 mm |
| Weight (approx.) | 130 g |
MPN
6ES7132-1BH00-0XB0
