Siemens SIMATIC ET 200SP, Digital Output Module, 32 channels, 24 V DC, 4 A, width 145 mm, depth 60.5 mm, diagnostics and SYNC capability.
| Parameter | Value |
|---|---|
| Digital outputs | 32 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current, max. per circuit / per module | 0.5 A |
| Output voltage at signal "1" (min.) | Ua - 3 V |
| Residual current at signal "0", max. | 1 mA |
| Output current up to 60 °C, max. | 2 000 mA |
| Power dissipation (typ.) | 7 W |
| Inductive shutdown voltage clamp | Typ. (L1+ or L2+ / L3+) -55 V |
| Load resistance, upper limit | 28 000 Ω |
| Load resistance, lower limit | 41 Ω |
| Isolation between channels | No |
| Isolation test voltage | 500 V DC |
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Diagnostics function | Yes |
| Short-circuit response threshold (typ.) | 0.7 A |
| Redundant load control | Yes; only outputs of the same group |
| Output can drive a digital input | Yes |
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 50 µs |
| Output switching delay 1 to 0, max. | 200 µs |
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 8 Hz |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 60 °C; 40°C for other mountings |
| Operating temperature, horizontal mount, min. | 0 °C |
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 145 mm |
| Height | 60 mm |
| Depth | 60.5 mm |
| Weight (approx.) | 150 g |

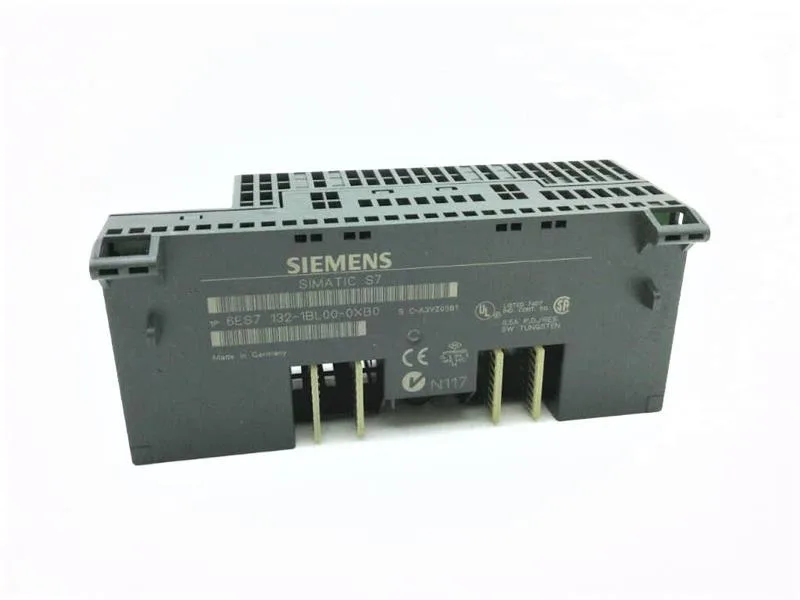

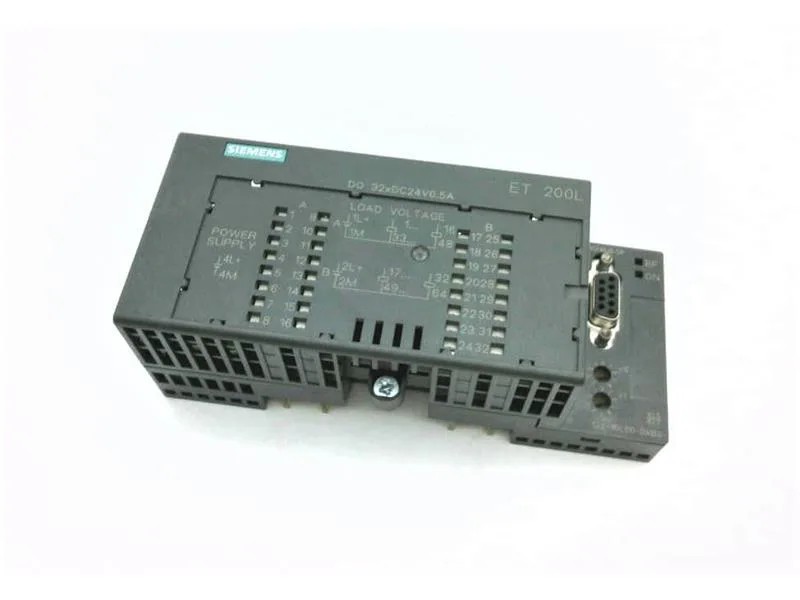

The 6ES7132-1BL00-0XB0: The module carries diagnostics including bus fault BF LED and channel-level fault reporting. SYNC capability is supported, and the unshielded cable length reaches 600 m, shielded to 1 000 m.
Power loss is typically 7 W. The module draws up to 70 mA from the backplane supply L+ (L4+/L5+). Reverse polarity protection is included.
Width 145 mm, height 60 mm, depth 60.5 mm. It mounts on a DIN rail with IP20 protection.
