Siemens 6ES7132-4BB00-0AA0

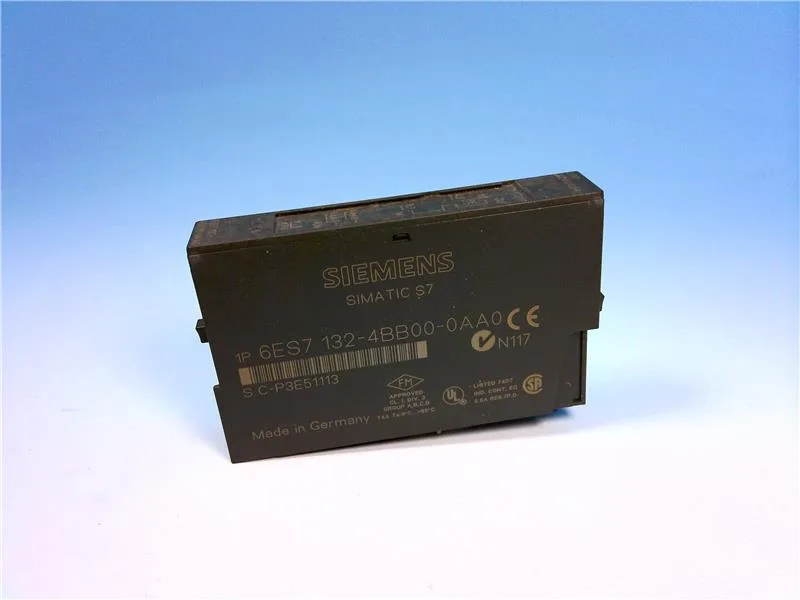

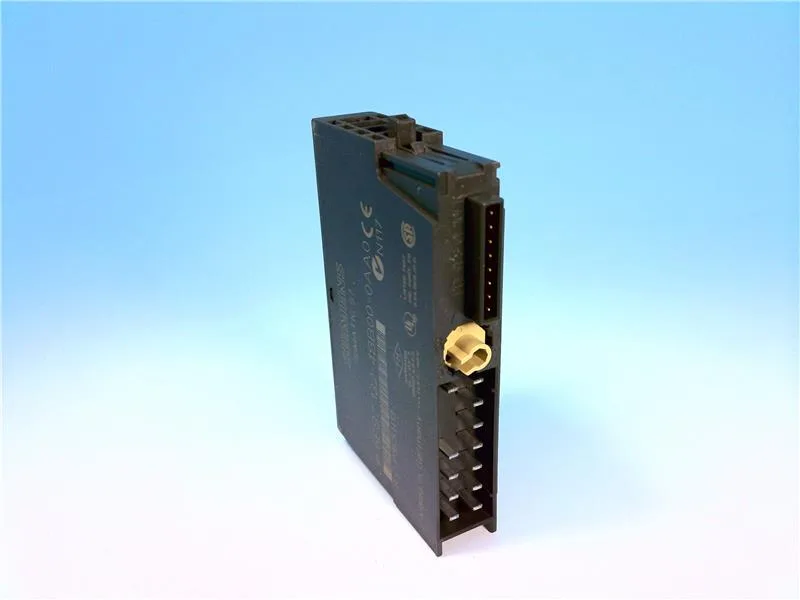

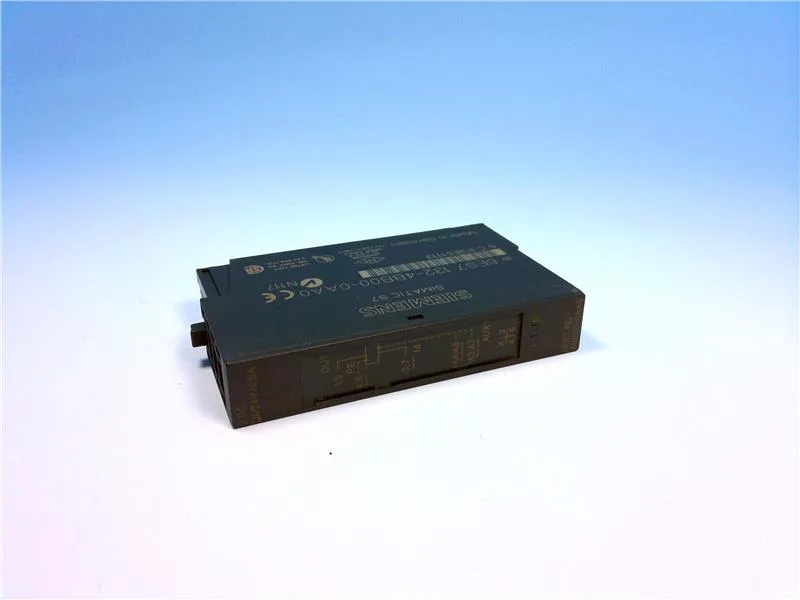

Siemens 6ES7132-4BB00-0AA0 ET 200S 2DO DC 24V/0.5A

MPN 6ES7132-4BB00-0AA0

Siemens SIMATIC DP ET 200S, 5 electronic modules, 2 DO standard DC 24V/0.5A, 15 mm width, 5 pieces per packaging unit.

$78.02 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7132-4BB00-0AA0 specifications
ParameterValue
Depth52 mm
Width15 mm
Height81 mm

Product details

Two outputs, 0.5 A each, in a 15 mm slice

The 6ES7132-4BB00-0AA0: It ships as a pack of 5 identical modules — the packaging unit is 5 pieces, so a single order line covers five 15 mm-wide slices for the ET 200S terminal block.

Switching performance and load limits

Resistive load switching is rated up to 100 Hz; inductive loads drop to 2 Hz, and lamp loads to 10 Hz. The output turns on in 200 µs max and off in 1.3 ms max, with a response threshold of 0.7 to 1.8 A for short-circuit detection. Inductive shutdown voltage is clamped to -55 to -60 V, and reverse polarity protection is present when the load voltage matches the power module supply.

Each module occupies 15 mm width on the ET 200S terminal block, with a depth of 52 mm and height of 81 mm — the slim profile leaves room for adjacent I/O slices in a dense cabinet. Unshielded cable runs up to 600 m; shielded runs up to 1 000 m. The module draws 10 mA max from the backplane bus and 5 mA max from L+ (unloaded). A green LED per channel indicates output status; diagnostics are not provided on this standard module.

MPN
6ES7132-4BB00-0AA0
