Siemens 6ES7132-4BB31-0AA0 — Digital Output Modules

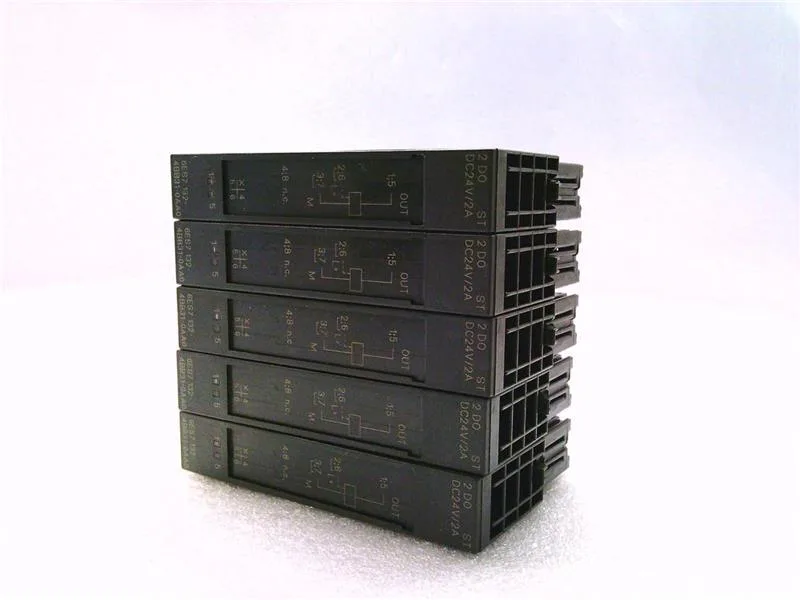

Siemens 6ES7132-4BB31-0AA0 ET 200S Digital Output Module, 2A

MPN6ES7132-4BB31-0AA0

Siemens ET 200S, digital output module, order code 6ES7132-4BB31-0AA0, 2 outputs, source (PNP), 2 A rated per channel, 24 V DC, width 15 mm.

$312.00Ref. price · indicative, final on quote
Siemens 6ES7132-4BB31-0AA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-4BB31-0AA0 — Outputs
ParameterValue
Digital outputs2
Output typeSource output (PNP, current-sourcing)
6ES7132-4BB31-0AA0 — Electrical
ParameterValue
Rated value (DC)24 V; From power module
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)2 A
Output current, max. per circuit / per module2.4 A
Total output current per module, max.4 A
Output voltage at signal "1" (min.)L+ (-1 V)
Residual current at signal "0", max.0.5 mA
Power dissipation (typ.)1.4 W
Inductive shutdown voltage clamp-55 to -60 V, typ. L+( )
Load resistance, upper limit3 400 Ω
Load resistance, lower limit12 Ω
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation test voltage500 V DC
6ES7132-4BB31-0AA0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes; polarity reversal can lead to the digital outputs being connected through
Diagnostics functionNo
Short-circuit response threshold (typ.)2.8 to 7.2 A
Redundant load controlYes; per module
Output can drive a digital inputYes
6ES7132-4BB31-0AA0 — Performance
ParameterValue
Output switching delay 0 to 1, max.200 µs
Output switching delay 1 to 0, max.1.3 ms
Switching frequency, inductive load, max.2 Hz; 0,5 H
Switching frequency, lamp load, max.10 Hz
6ES7132-4BB31-0AA0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width15 mm
Height81 mm
Depth52 mm
Weight (approx.)40 g

Product details

Output module for ET 200S – what it fits

The 6ES7132-4BB31-0AA0 is a current-production ET 200S digital output slice. Two source outputs (PNP), each rated 2 A at 24 V DC, max 4 A per module. No diagnostics onboard – the green LED per channel is your only state indication. It's a clean, low-level valve and indicator driver for standard 24 V DC loads.

Panel fit – the 15 mm slot

Width 15 mm, depth 52 mm, height 81 mm. Cable reach: unshielded 600 m, shielded 1 000 m.

Switching performance and cable limits

Resistive load switching up to 100 Hz; inductive loads limited to 2 Hz with 0.5 H inductance – enough for small contactor coils. Short-circuit protection is built in, trip threshold typ 2.8 to 7.2 A. Response time: 0→1 in 200 µs, 1→0 in 1.3 ms. No inter-channel isolation, but output groups are isolated from the backplane bus (500 V DC test).

Frequently asked questions

Will the SIPLUS 6AG1123-2DB03-2AX0 drop in without rewiring?

Yes, the SIPLUS variant is functionally identical – same 2 DO, PNP, 2 A rating, same ET 200S footprint. It uses the same backplane connector and wiring scheme. The swap is mechanical and electrical plug-in; the difference is extended environmental tolerance.
