Siemens 6ES7132-4BD00-0AA0

Siemens 6ES7132-4BD00-0AA0 4DO Module, 24V DC 0.5A, 15mm

MPN 6ES7132-4BD00-0AA0

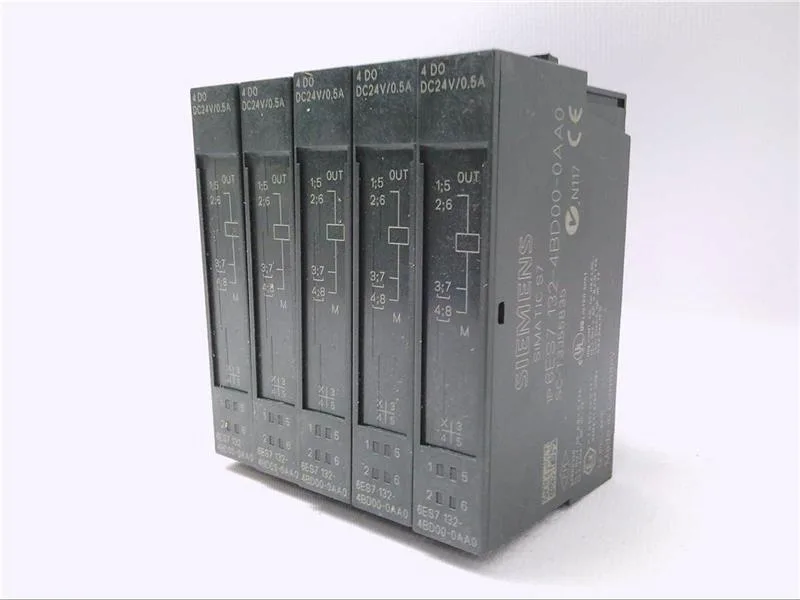

Siemens 6ES7132-4BD00-0AA0 SIMATIC DP ET 200S electronic module, 4 digital outputs, 24 V DC, 0.5 A, 15 mm width, in a packaging unit of 5.

$91.44 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7132-4BD00-0AA0 specifications
ParameterValue
Depth52 mm
Width15 mm
Height81 mm

Product details

The Siemens 6ES7132-4BD00-0AA0 is a 4-output digital module for the ET 200S — a standard DO slice running at 24 V DC from the backplane bus, rated 0.5 A per channel. It is current-production and a direct replacement for this order code. Width 15 mm and depth 52 mm allow dense cabinet packing. Thermal load is 0.8 W typical, so modules can be placed close together.

Each output sources 0.5 A nominal — switching resistive loads up to 100 Hz, inductive loads limited to 2 Hz. The clamp voltage from inductive kickback is internally limited to –55 to –60 V, so no external flyback diode needed if you use the same load voltage as the power module. No per-channel diagnostics, so for fault-prone loads you'll want to add a DI feedback. Reverse-polarity and reverse-voltage protection are built in, but only when sharing the power module's load voltage. Power draw from the backplane bus is 10 mA max, plus 5 mA per channel from load voltage — negligible for bus budgeting.

MPN
6ES7132-4BD00-0AA0
