Siemens 6ES7132-4BD00-0AB0 — Digital Output Modules

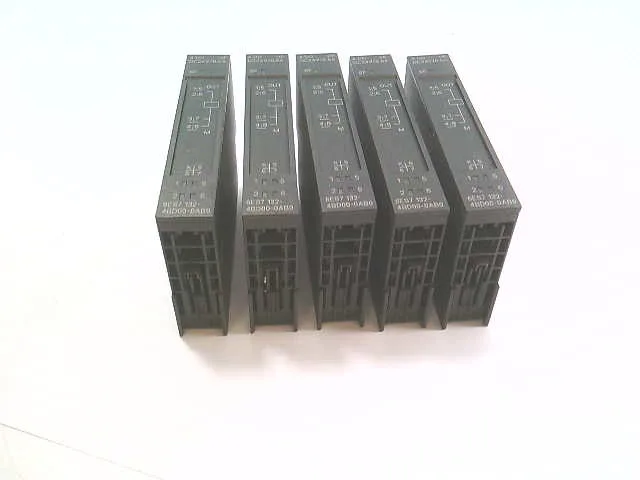

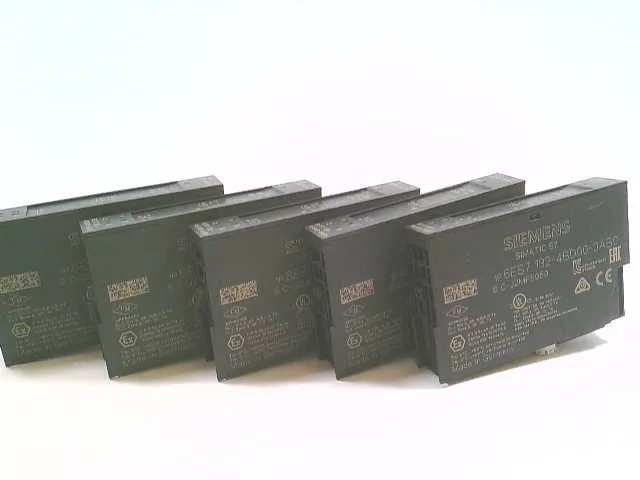

Siemens 6ES7132-4BD00-0AB0, 4-ch digital output, 0.5 A, 24 V

MPN6ES7132-4BD00-0AB0

Siemens SIMATIC ET200S, 6ES7132-4BD00-0AB0, 4-channel digital output module, 24 V DC, 0.5 A per channel, transistor, diagnostics, 15 mm width.

$133.33Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-4BD00-0AB0 — Outputs
ParameterValue
Digital outputs4
Output typeTransistor
6ES7132-4BD00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V; From power module
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)0.5 A
Output current, max. per circuit / per module600 mA
Total output current per module, max.2 A
Output voltage at signal "1" (min.)L+ (-1 V)
Residual current at signal "0", max.0.3 mA
Power dissipation (typ.)0.8 W
Inductive shutdown voltage clamp-55 to -60 V, L+( )
Load resistance, upper limit3 400 Ω
Load resistance, lower limit48 Ω
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation test voltage500 V DC
6ES7132-4BD00-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes; polarity reversal can lead to the digital outputs being connected through
Diagnostics functionYes
Short-circuit response threshold (typ.)0.7 to 1.5 A
Short-circuit detectionYes; Module-wise
Redundant load controlYes; per module
Output can drive a digital inputYes
6ES7132-4BD00-0AB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.100 µs
Output switching delay 1 to 0, max.300 µs
Switching frequency, inductive load, max.2 Hz
Switching frequency, lamp load, max.10 Hz
6ES7132-4BD00-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width15 mm
Height81 mm
Depth52 mm
Weight (approx.)40 g

Product details

The Siemens 6ES7132-4BD00-0AB0 is a 4-channel transistor output module rated for 24 V DC supply. Each channel drives 0.5 A continuous, with a 2 A total per module ceiling.

Switching limits: resistive load up to 100 Hz, inductive load up to 2 Hz, lamp load up to 10 Hz. That 100 Hz on resistive loads covers fast pulse outputs for simple counters or strobes, but for solenoid banks you will be limited by the 2 Hz inductively — plan your duty cycle accordingly. Turn-on delay 100 µs, turn-off 300 µs; that asymmetry matters if you are driving a fast-acting clamp circuit.

Isolation tested at 500 V DC between channels and backplane. No galvanic separation between channels themselves — that is typical for a group output module, so plan your wiring accordingly if you need per-channel isolation. Reverse polarity protection is present when the load voltage matches the power module supply; a polarity reversal can cause the outputs to be connected through, which is a installation note to flag on the panel label.

Frequently asked questions

What are the key dimensions of this module?

The module width is 15 mm, depth 52 mm, and height 81 mm. It fits a single ET200S slot.
