Siemens 6ES7132-4BD02-0AA0
MPN6ES7132-4BD02-0AA0

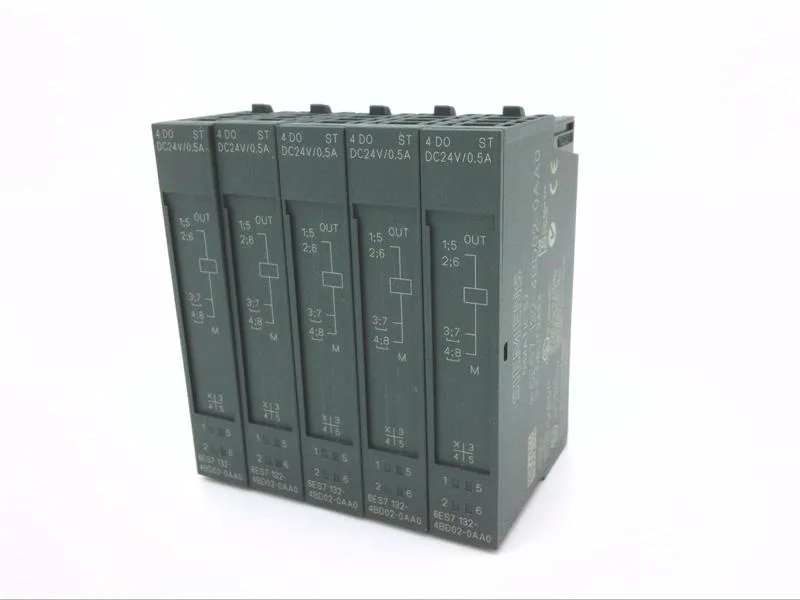

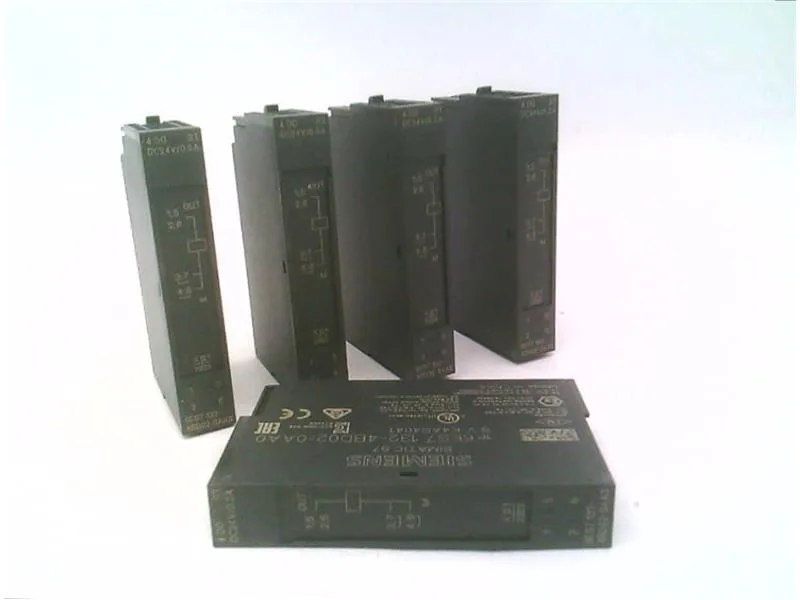

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO standard 24 V DC/0.5 A, 15 mm width, 5 units per packing unit
$49.51Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Digital outputs | 4 |
| Output type | Source output (PNP, current-sourcing) |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Output current, resistive load, max. | 800 Hz |
| Output current at signal "1" (rated) | 0.5 A |
| Output current, max. per circuit / per module | 600 mA |
| Total output current per module, max. | 2 A |
| Output voltage at signal "1" (min.) | L+ (-1 V) |
| Residual current at signal "0", max. | 0.3 mA |
| Power dissipation (typ.) | 0.8 W |
| Inductive shutdown voltage clamp | L+ (-55 to -60 V) |
| Load resistance, upper limit | 3 400 Ω |
| Load resistance, lower limit | 48 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 500 V DC |
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes; polarity reversal can lead to the digital outputs being connected through |
| Diagnostics function | No |
| Short-circuit response threshold (typ.) | 1 to 1.5 A |
| Redundant load control | Yes; per module |
| Output can drive a digital input | Yes |
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 50 µs |
| Output switching delay 1 to 0, max. | 120 µs |
| Switching frequency, inductive load, max. | 2 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight (approx.) | 40 g |
