The Siemens 6ES7132-4BD30-0AB0 is a current-production SIMATIC ET 200S digital output module with four transistor outputs, each rated 2 A continuous for a module total of 4 A. It operates at 24 V DC supplied from the ET 200S power module. For resistive loads it switches at up to 100 Hz, for inductive loads at 2 Hz max, and for lamp loads at 10 Hz max. The 0-to-1 turn-on time is 250 µs worst-case; turn-off is 400 µs. Each output includes electronic short-circuit protection with module-wise fault indication via the red SF-LED and a response threshold of 5 to 10 A. Reverse voltage protection is present when the load voltage matches the power module supply; reverse polarity protection also guards against accidental reverse connection. The module carries diagnostics function and galvanic isolation tested at 500 V DC between channels and backplane bus.

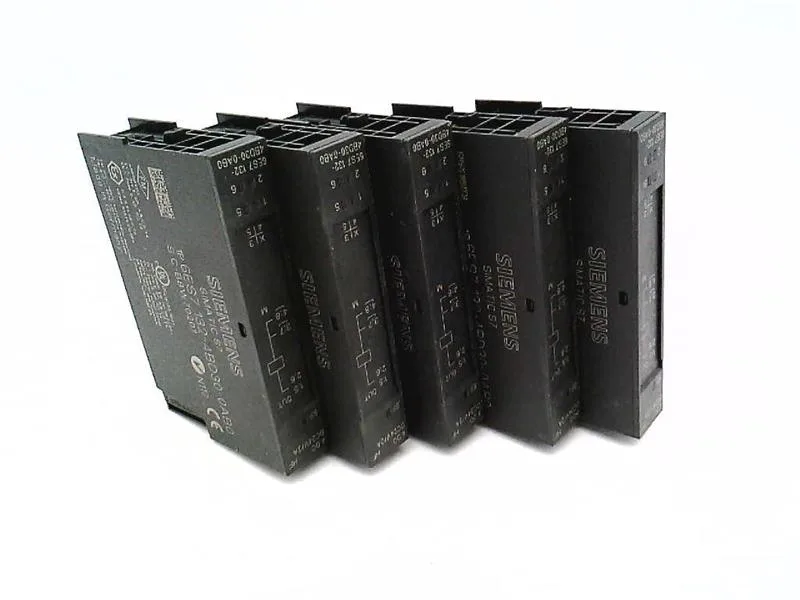

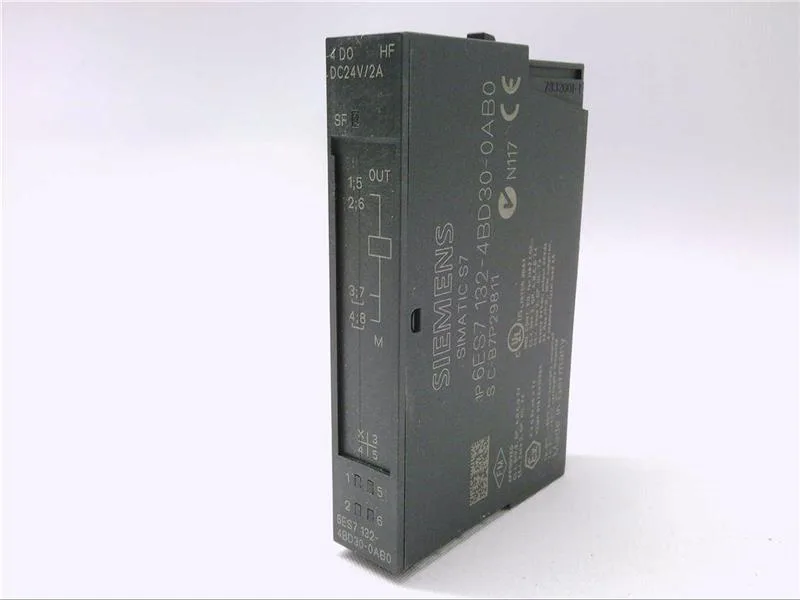

Siemens 6ES7132-4BD30-0AB0 ET 200S 4 DO, 2 A
MPN6ES7132-4BD30-0AB0
Siemens SIMATIC ET 200S, 4-channel digital output module (transistor), 6ES7132-4BD30-0AB0, 24 V DC, 2 A per output, 100 Hz resistive load.
$381.76 – $561.00Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 4 |
| Output type | Transistor |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 2 A |
| Output current, max. per circuit / per module | 2.4 A |
| Total output current per module, max. | 4 A |
| Output voltage at signal "1" (min.) | L+ (-1.0 V) |
| Residual current at signal "0", max. | 0.5 mA |
| Power dissipation (typ.) | 1.6 W |
| Inductive shutdown voltage clamp | L+ -(37 to 41V) |
| Load resistance, upper limit | 3 400 Ω |
| Load resistance, lower limit | 12 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes; polarity reversal can lead to the digital outputs being connected through |
| Diagnostics function | Yes |
| Short-circuit response threshold (typ.) | 5 to 10 A |
| Short-circuit detection | Yes; Module-wise |
| Redundant load control | Yes; per module |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 250 µs |
| Output switching delay 1 to 0, max. | 400 µs |
| Switching frequency, inductive load, max. | 2 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight (approx.) | 40 g |
Product details
Frequently asked questions
What are the module dimensions?
The module measures 15 mm wide, 81 mm high, and 52 mm deep. These dimensions are for the electronics module only, not including optional terminal blocks or labeling strips.
What is the per-channel current rating and maximum switching frequency?
Each output is rated for 2 A continuous with a module total of 4 A. Switching is limited to 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.
