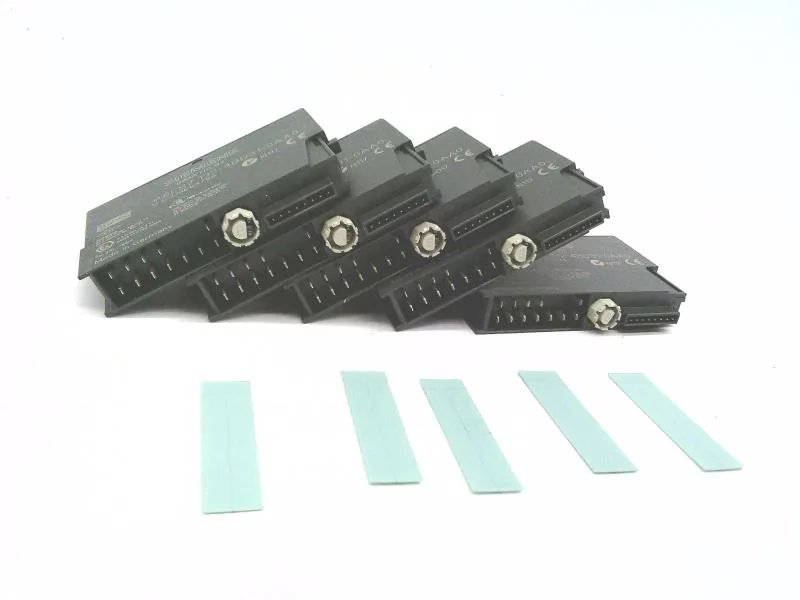

Siemens 6ES7132-4BD31-0AA0 ET 200SP DO 4x24VDC/2A

MPN6ES7132-4BD31-0AA0
Obsolete

Siemens ET 200SP, digital output module, 6ES7132-4BD31-0AA0, 4 outputs, 2 A per channel, 24 VDC, width 15 mm, depth 52 mm.

$196.60Ref. price · indicative, final on quote
Siemens 6ES7132-4BD31-0AA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7132-4BD31-0AA0 — Outputs
ParameterValue
Digital outputs4
6ES7132-4BD31-0AA0 — Electrical
ParameterValue
Rated value (DC)24 V; From power module
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)2 A
Output current, max. per circuit / per module2.4 A
Total output current per module, max.4 A
Output voltage at signal "1" (min.)L+ (-1 V)
Residual current at signal "0", max.0.5 mA
Power dissipation (typ.)1.6 W
Inductive shutdown voltage clamp-55 to -60 V, L+( )
Load resistance, upper limit3 400 Ω
Load resistance, lower limit12 Ω
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation test voltage500 V DC
6ES7132-4BD31-0AA0 — Performance
ParameterValue
Output switching delay 0 to 1, max.200 µs
Output switching delay 1 to 0, max.1.3 ms
Switching frequency, inductive load, max.2 Hz; 0,5 H
Switching frequency, lamp load, max.10 Hz
6ES7132-4BD31-0AA0 — Protection & Diagnostics
ParameterValue
Reverse polarity protectionYes; polarity reversal can lead to the digital outputs being connected through
Diagnostics functionNo
Short-circuit response threshold (typ.)2.8 to 7.2 A
Redundant load controlYes; per module
Output can drive a digital inputYes
6ES7132-4BD31-0AA0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width15 mm
Height81 mm
Depth52 mm
Weight (approx.)40 g

Product details

Device identification and basic fit

The Siemens 6ES7132-4BD31-0AA0 is an ET 200SP electronic module providing four digital outputs. Each channel is rated at 2 A for a 24 VDC load drawn from the power module, not an external supply. The module occupies 1 byte of address space and a 15 mm slice on the DIN rail.

Switching performance and protection

Resistive loads switch at up to 100 Hz, inductive loads with a 0.5 H coil at up to 2 Hz. The response threshold for overcurrent sits between 2.8 A and 7.2 A typical; above that the channel shuts down. Isolation is tested at 500 V DC between channels and the backplane bus. The module offers reverse-voltage protection when sharing the load voltage with the power module.

MPN
6ES7132-4BD31-0AA0
