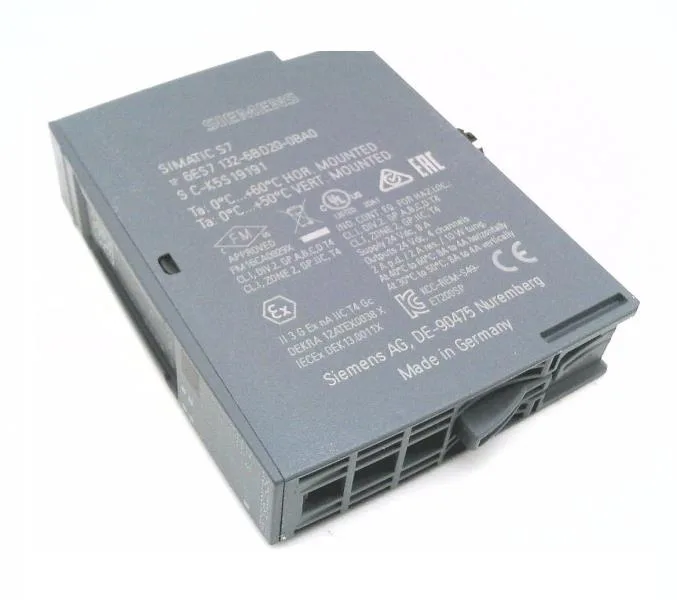

Siemens 6ES7132-6BD20-0BA0

Siemens 6ES7132-6BD20-0BA0 ET 200SP DQ 8x24VDC/0.5A ST, 8 A

MPN 6ES7132-6BD20-0BA0
Active

Siemens SIMATIC ET 200SP, digital output module DQ 8x24VDC/0.5A ST, 8 channels, 24 V DC, 0.5 A per channel, current-sourcing, diagnostics, BU type A0.

$53.34 – $151.55 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7132-6BD20-0BA0 specifications
ParameterValue
Depth58 mm
Width15 mm
Height73 mm

Product details

The 6ES7132-6BD20-0BA0: Per-channel current is 0.5 A, but the module's total current is thermally limited: 8 A up to 30 °C, 6 A up to 40 °C, 4 A up to 50 °C, and 4 A up to 60 °C. That means at 40 °C ambient you can't run all eight channels at 0.5 A simultaneously — you'd hit 6 A total. Plan your load distribution accordingly, especially in a crowded panel. Switching times are 50 µs typical for turn-on, 100 µs typical for turn-off — fast enough for most valve banks and indicator arrays, but not for high-speed PWM or isochronous motion (MSO and PWM are both No, isochronous mode is No). Module-wide diagnostics cover short-circuit and wire-break, plus a diagnostic alarm and group error. That saves troubleshooting time on the line — the CPU knows which module faulted, not just which rack.

Width is 15 mm — one of the narrowest in the ET 200SP family. Depth is 58 mm, height 73 mm. It snaps onto a BU type A0 base unit; that base unit handles 1-, 2-, 3-, and 4-wire connections. For 3-wire you need a base unit with AUX terminals or a separate potential distributor module; 4-wire adds a potential distributor module. Plan the base unit order alongside the module. Cable lengths: unshielded up to 600 m, shielded up to 1000 m. For most factory-floor runs that's plenty of headroom.

Lifecycle status is current — no end-of-life notice, no last-time-buy pressure. Firmware is V1.1 and field-updatable, so you can standardize on this revision across the plant. Power draw is 1 W typical, negligible for backplane budgeting.

MPN
6ES7132-6BD20-0BA0
