Siemens ET 200SP, digital output module, 8x24VDC/4A, source output (PNP), 8 channels, diagnostics, BU type A0 base unit required.
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
| Output type | Source output (PNP, current-sourcing) |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 0.5 A |
| Total output current per module, max. | 4 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Residual current at signal "0", max. | 5 µA |
| Output current up to 60 °C, max. | 4 A |
| Power dissipation (typ.) | 1.5 W |
| Inductive shutdown voltage clamp | Typ. 47 V |
| Load resistance, upper limit | 3 400 Ω |
| Load resistance, lower limit | 48 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Short-circuit response threshold (typ.) | 1.5 A |
| Short-circuit detection | No |
| Wire-break detection | No |
| Redundant load control | Yes |
| Output can drive a digital input | Yes |
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 300 µs |
| Output switching delay 1 to 0, max. | 600 µs |
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight (approx.) | 30 g |

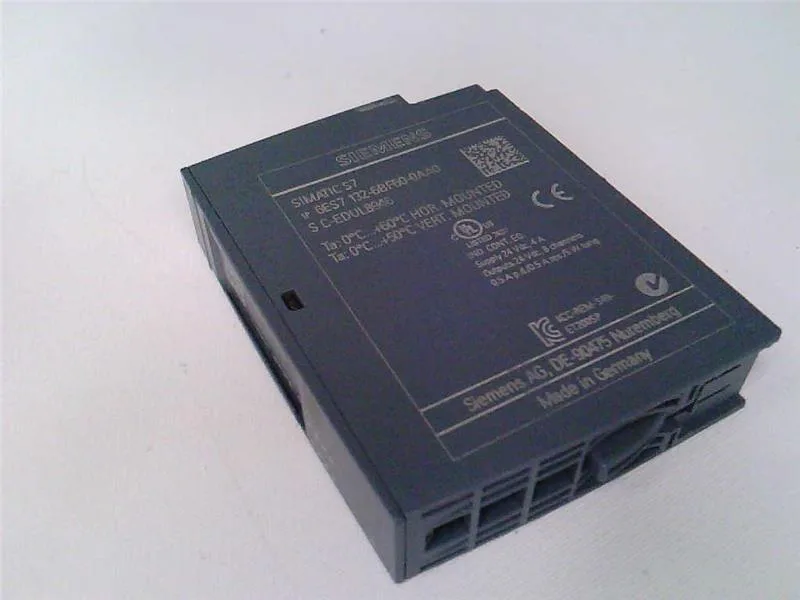

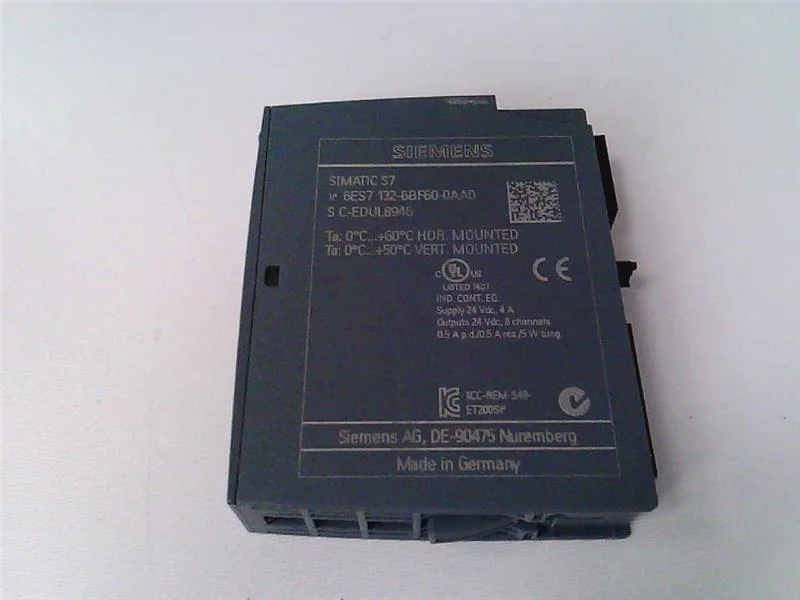

Siemens 6ES7132-6BF60-0AA0 is an ET 200SP digital output module with 8 source-type (PNP) outputs rated 4 A at 24 VDC. It occupies 1 byte in the I/O map and provides diagnostic alarm and group error indication via the green/red DIAG LED. The module requires a BU type A0 base unit; shielded cable runs up to 1 000 m, unshielded up to 600 m.
This module fits the ET 200SP platform with BU type A0 base units. It occupies 1 byte in the I/O map.
Digital output function is confirmed (DQ Yes). It is a source output (PNP) type.
MSO (Motor Starter Output) is not supported; listed as No.
Alternative models and sibling configurations in the same Siemens series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
