Siemens 6ES7132-6HD00-0BB1 — Digital Output Modules

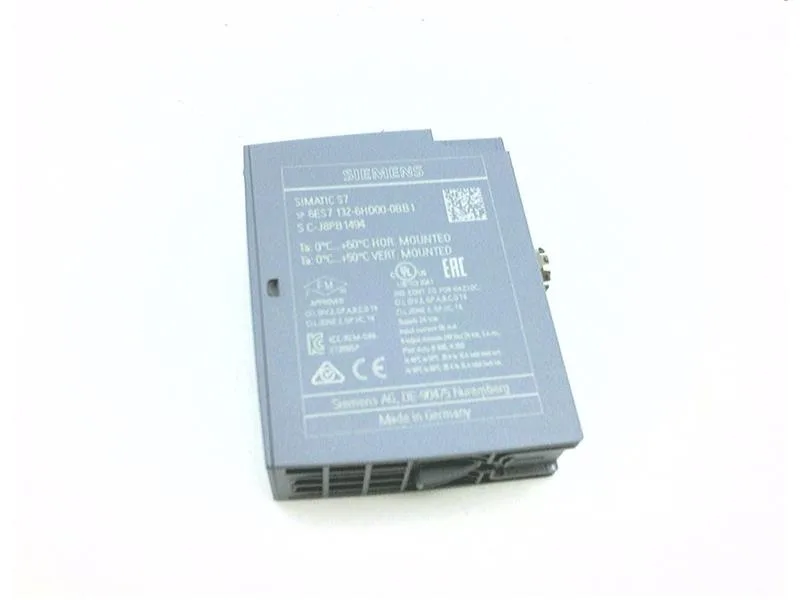

Siemens 6ES7132-6HD00-0BB1 ET 200SP Relay Output, 4x5A

MPN6ES7132-6HD00-0BB1

Siemens 6ES7132-6HD00-0BB1, ET 200SP digital output module, 4 relay outputs, 5 A per channel, 24 V DC, diagnostics, I&M data, firmware V1.1.

$138.00 – $171.45Ref. price · indicative, final on quote
Siemens 6ES7132-6HD00-0BB1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-6HD00-0BB1 — Outputs
ParameterValue
Digital outputs4
Output typeRelays
6ES7132-6HD00-0BB1 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.5 A; see additional description in the manual
Total output current per module, max.20 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Output current up to 60 °C, max.20 A
Power dissipation (typ.)1.5 W
Isolation between channelsYes
Isolation between channels and backplane busYes
Isolation test voltage2 500 V DC (type test)
6ES7132-6HD00-0BB1 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo
Reverse polarity protectionYes
Diagnostics functionYes
Diagnostic alarmYes
Short-circuit detectionNo
Wire-break detectionNo
6ES7132-6HD00-0BB1 — Performance
ParameterValue
Switching frequency, inductive load, max.2 A; see additional description in the manual
Switching frequency, lamp load, max.2 Hz
6ES7132-6HD00-0BB1 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.200 m
Cable length, shielded, max.1 000 m
Width20 mm
Height73 mm
Depth58 mm
Weight (approx.)40 g

Product details

The Siemens 6ES7132-6HD00-0BB1 is a 4-channel relay output module for the ET 200SP system, rated 5 A per channel and 20 A total at 24 V DC. It provides diagnostics, I&M data up to I&M3, and firmware update capability (V1.1). Relay outputs are isolated between channels, with a minimum switching current of 100 mA at 5 V DC. Module draws 100 mA from the backplane without load. Channel status via green LED; module diagnostics via green/red DIAG LED. Supports diagnostic alarm and group error. No short-circuit protection or wire-break detection — external fusing needed for load circuits.

Firmware version V1.1 is loaded from the factory. Field updates are possible if needed, ensuring alignment across a multi-module station.

Mounts on BU type B0 or B1 base units in the ET 200SP system. Width 20 mm fits the standard slice footprint. Shielded cable run up to 1 000 m; unshielded up to 200 m. Power dissipation typ. 1.5 W per module. Rated 24 V DC supply. For commissioning: map the 1-byte output data with QI (quality information) in the process image.

Frequently asked questions

Does it have diagnostics?

Yes. It supports diagnostic alarm, group error, and a module diagnostics LED. Channel status is indicated by green LEDs.

Can this module replace a 6ES7522-5HF00-0AB0?

No. The 6ES7522-5HF00-0AB0 is an ET 200MP digital output module with a different physical form factor and base unit system. The 6ES7132-6HD00-0BB1 fits only ET 200SP base units (BU B0 or B1) and cannot be installed in an ET 200MP rack without rewiring and changing the entire I/O station.

What base units are compatible?

BU type B0 and B1.
