Siemens 6ES7132-6HD00-2BB1 — Digital Output Modules

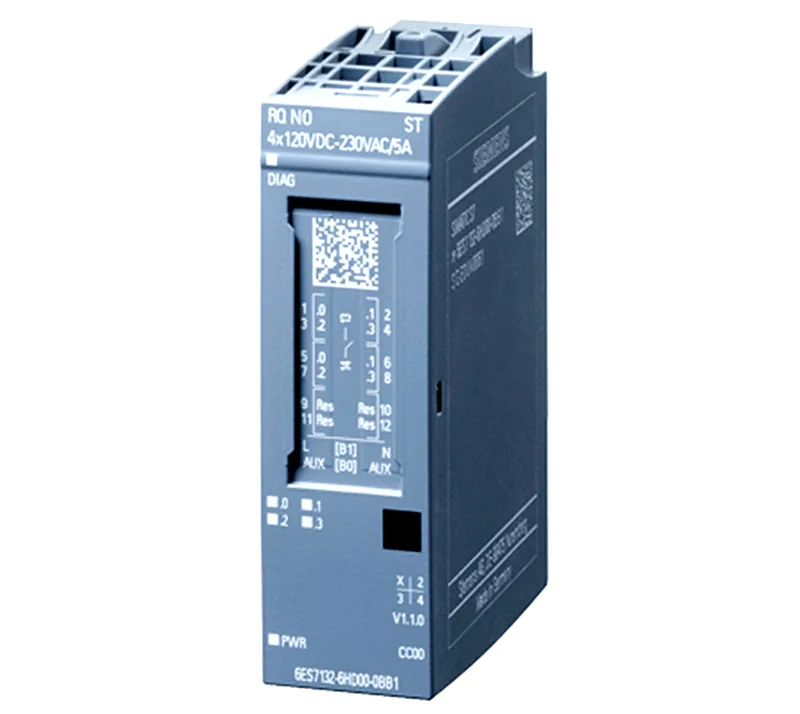

Siemens 6ES7132-6HD00-2BB1 ET 200SP 4x Relay Output, 20 A Mo

MPN6ES7132-6HD00-2BB1

Siemens ET 200SP, 6ES7132-6HD00-2BB1, 4-channel relay output module, 24 V DC, 20 A module max at 40°C, 58 x 20 x 73 mm.

Siemens 6ES7132-6HD00-2BB1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-6HD00-2BB1 — Outputs
ParameterValue
Digital outputs4
Output typeRelays
6ES7132-6HD00-2BB1 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.5 A; see additional description in the manual
Total output current per module, max.20 A
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Output current up to 60 °C, max.16 A
Power dissipation (typ.)1.5 W
Isolation between channelsYes
Isolation between channels and backplane busYes
Isolation test voltage2 500 V DC (type test)
6ES7132-6HD00-2BB1 — Protection & Diagnostics
ParameterValue
Short-circuit protectionNo
Reverse polarity protectionYes
Diagnostics functionYes
Diagnostic alarmYes
Short-circuit detectionNo
Wire-break detectionNo
6ES7132-6HD00-2BB1 — Performance
ParameterValue
Switching frequency, inductive load, max.2 A; see additional description in the manual
Switching frequency, lamp load, max.2 Hz
6ES7132-6HD00-2BB1 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.200 m
Cable length, shielded, max.1 000 m
Width20 mm
Height73 mm
Depth58 mm
Weight (approx.)40 g

Product details

Four relay outputs on the ET 200SP backplane

The 6ES7132-6HD00-2BB1: Diagnostics include a group error indication and a diagnostic alarm; channel status is shown by a green LED per output. The green/red DIAG LED reports module-level faults. Firmware version V1.1 is field-updatable.

System family check: not a drop-in for S7-1500

The failsafe sibling 6ES7136-6AB00-0CA1 shares the same ET 200SP mechanical footprint but integrates safety functions (e.g., PROFIsafe). The 6ES7132-6HD00-2BB1 has no oversampling, no isochronous mode, and no MSO or PWM capability—it is a straightforward relay output slice for standard automation.

Frequently asked questions

What is MSO No indicating?

MSO No means the module does not support Multiple Switching Outputs—each channel operates independently and cannot be grouped in an MSO safety context.
