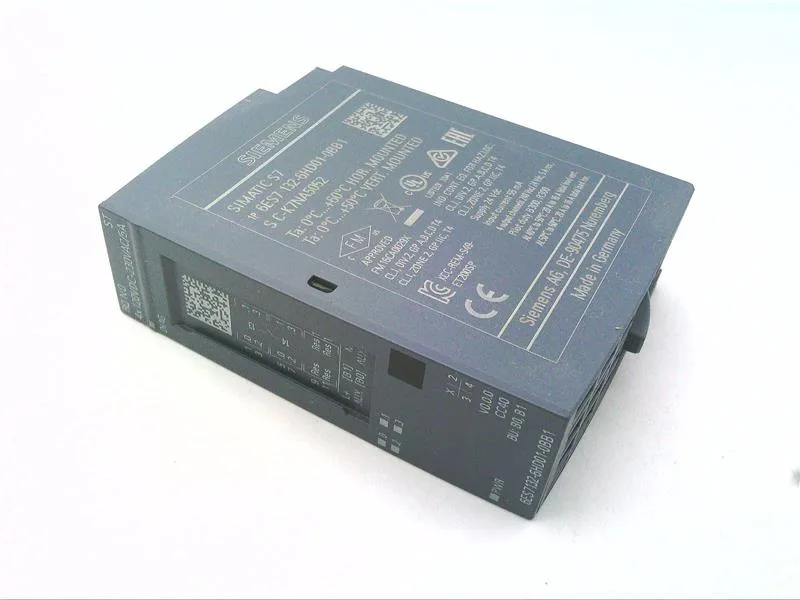

The Siemens 6ES7132-6HD01-0BB1 is a digital output module for the ET 200SP distributed I/O system. It provides one byte of digital outputs with DQ capability (per the evidence, DQ is Yes), meaning it supports direct query of the output state for diagnostic feedback. The module is rated for both 24 V DC and 230 V AC supply, with a maximum output current of 20 A at up to 40 °C, derating to 16 A at 50 °C and 60 °C. This current derating is a key selection parameter: if your panel ambient exceeds 40 °C, the 16 A limit governs the load you can switch per module.
Integration and Mounting
The module measures 58 mm deep, 20 mm wide, and 73 mm high, and mounts on an ET 200SP base unit. It is compatible with BU type B0 for 3-wire connections and BU type B1 for 2-wire connections. Automatic encoding is supported, so the base unit identifies the module without manual addressing. The isolation is tested at 2,500 V DC (type test) between the channels and the backplane bus.
Cable Length and Diagnostics
Maximum cable length is 1,000 m for shielded cables and 200 m for unshielded runs. The module supports diagnostic alarms and a diagnostics function, with hardware functional status from FS02. It also supports I&M data (I&M0 to I&M3) for identification and maintenance records. Typical power loss is 1.5 W.
