Siemens 6ES7132-7RD00-0AB0 — Digital Output Modules

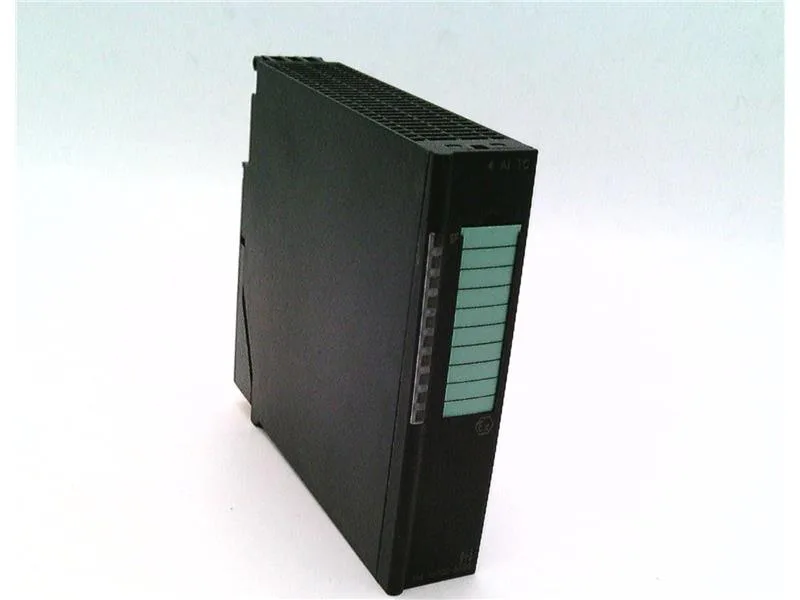

6ES7132-7RD00-0AB0 SIMATIC DP 4 DQ, 23.1 V/20 mA

Q: What are the key dimensions?

Depth 136.5 mm, width 30 mm (one slot), height 129 mm.

Q: Can the peer 6ES7314-1AF10-0AB0 serve as a second-source?

No. That part is a CPU module with integrated I/O and different form factor, not a functional substitute for this output module.

MPN6ES7132-7RD00-0AB0

Siemens SIMATIC DP ET200iSP, 4 DQ, 23.1 V DC/20 mA, 6ES7132-7RD00-0AB0.

$196.25Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7132-7RD00-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7132-7RD00-0AB0 — Outputs
Parameter	Value
Digital outputs	4

6ES7132-7RD00-0AB0 — Electrical
Parameter	Value
Output current, resistive load, max.	100 Hz
Power dissipation (typ.)	2.5 W
Isolation between channels	No
Isolation between channels and backplane bus	Yes

6ES7132-7RD00-0AB0 — Performance
Parameter	Value
Output switching delay 0 to 1, max.	2 ms
Output switching delay 1 to 0, max.	1.5 ms
Switching frequency, inductive load, max.	2 Hz

6ES7132-7RD00-0AB0 — Protection & Diagnostics
Parameter	Value
Diagnostic alarm	Yes; Parameterizable
Short-circuit detection	Yes; R< 800 ohms (one output), R< 40 ohms (outputs connected in parallel)
Wire-break detection	Yes; R > 10 kohms, I < 100 µA

6ES7132-7RD00-0AB0 — Mechanical & Connection
Parameter	Value
Cable length, unshielded, max.	200 m
Cable length, shielded, max.	200 m
Width	30 mm
Height	129 mm
Depth	136.5 mm
Weight (approx.)	255 g

Product details

The 6ES7132-7RD00-0AB0: SIMATIC DP electronics module for the ET200iSP intrinsically safe distributed I/O system. Four digital outputs rated at 23.1 V DC no-load voltage and 20 mA output current, with an internal resistor of 275 Ω that defines the loop characteristic for hazardous-area circuits.
