Siemens 6ES7132-7RD11-0AB0 — Digital Output Modules

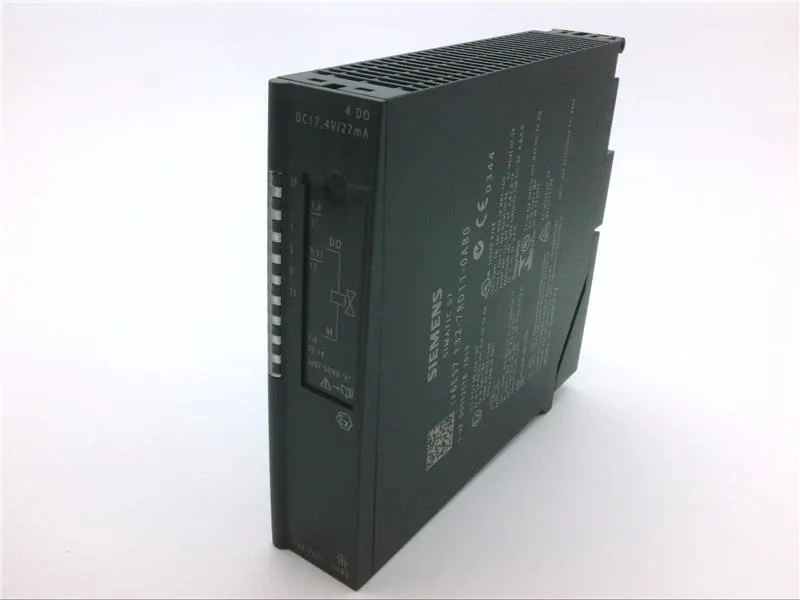

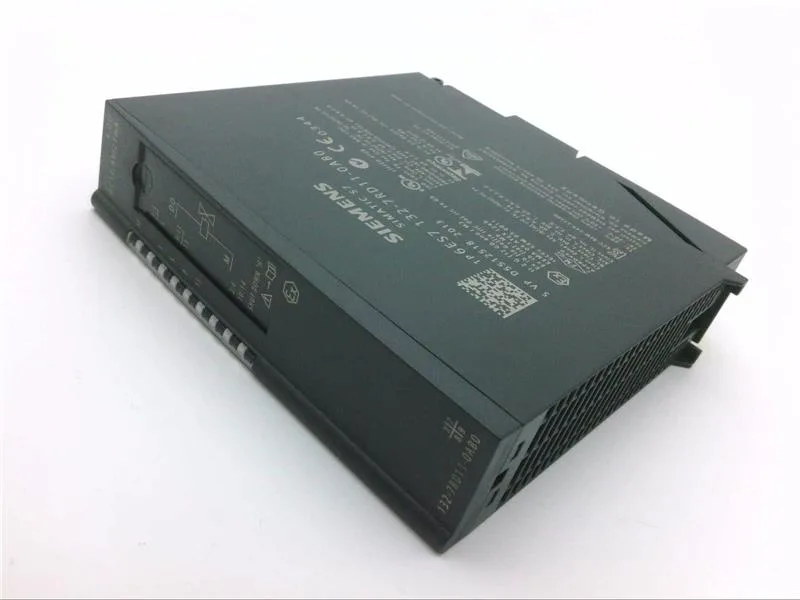

Siemens 6ES7132-7RD11-0AB0 ET200iSP 4 DQ Ex Module, 27 mA

MPN6ES7132-7RD11-0AB0
Active

Siemens SIMATIC DP electronic module for ET200iSP, 6ES7132-7RD11-0AB0, 4 digital transistor outputs at 17.4 V DC/27 mA with H-shutdown, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb.

$331.47 – $678.00Ref. price · indicative, final on quote
Siemens 6ES7132-7RD11-0AB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7132-7RD11-0AB0 — Outputs
ParameterValue
Digital outputs4; additionally 1 intrinsically-safe input for H shutdown
Output typeTransistor
6ES7132-7RD11-0AB0 — Electrical
ParameterValue
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)0.027 A
Power dissipation (typ.)2.1 W
Isolation between channelsNo
Isolation between channels and backplane busYes
6ES7132-7RD11-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Diagnostics functionYes
Diagnostic alarmYes; Parameterizable
Short-circuit detectionYes
Wire-break detectionYes
6ES7132-7RD11-0AB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.2 ms
Output switching delay 1 to 0, max.1.5 ms
Switching frequency, inductive load, max.2 Hz
6ES7132-7RD11-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.500 m
Cable length, shielded, max.500 m
Width30 mm
Height129 mm
Depth136.5 mm
Weight (approx.)255 g

Product details

Ex-rated output slice for ET200iSP

The Siemens 6ES7132-7RD11-0AB0 is a SIMATIC DP electronic module for the ET200iSP distributed I/O system, delivering 4 digital transistor outputs at a no-load voltage of 17.4 V DC and a rated signal current of 27 mA per channel, plus one intrinsically-safe input for H-shutdown. It carries Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb approvals.

Output ratings and diagnostics

Each output switches resistive loads at up to 100 Hz and inductive loads at up to 2 Hz, with a signal transition time of 2 ms from 0 to 1 and 1.5 ms from 1 to 0. The module includes short-circuit protection, wire-break detection, and a parameterizable diagnostic alarm, with a group error indicator (SF red LED) and per-channel green status LEDs. Typical power loss is 2.1 W, drawing 260 mA from the load voltage L+ and 10 mA from the backplane bus.

Frequently asked questions

Is 6ES7132-7RD11-0AB0 an intrinsically safe module?

Yes, it carries Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb approvals for use in hazardous areas with an associated intrinsically-safe barrier.
