Siemens 6ES7133-0BN01-0XB0 — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 1 000 Hz |
| Output current, max. per circuit / per module | 0.5 A; in one group |
| Permissible range, upper limit (DC) | 30.2 V |
| Permissible range, lower limit (DC) | 18.5 V |
| Output voltage at signal "1" (min.) | UE -3 V |
| Residual current at signal "0", max. | 1 mA |
| Output current up to 60 °C, max. | 2 A |
| Inductive shutdown voltage clamp | typically (L1+) -55 V |
| Isolation, channels in groups of | 8 |
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Electronic |
| Output can drive a digital input | Yes |
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 20 µs |
| Output switching delay 1 to 0, max. | 0.5 ms |
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 8 Hz |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 60 °C; 40°C for other mountings |
| Operating temperature, horizontal mount, min. | 0 °C |
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 100 m |
| Width | 235 mm; EB and TB |
| Height | 130 mm; EB and TB |
| Depth | 60 mm; EB and TB |
| Weight (approx.) | 800 g; EB and TB |

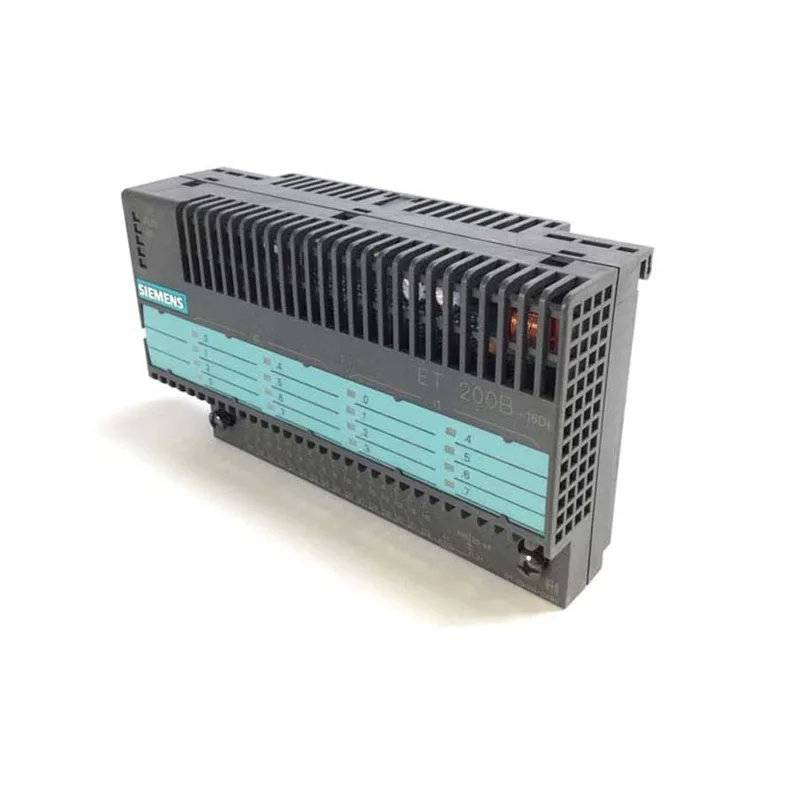

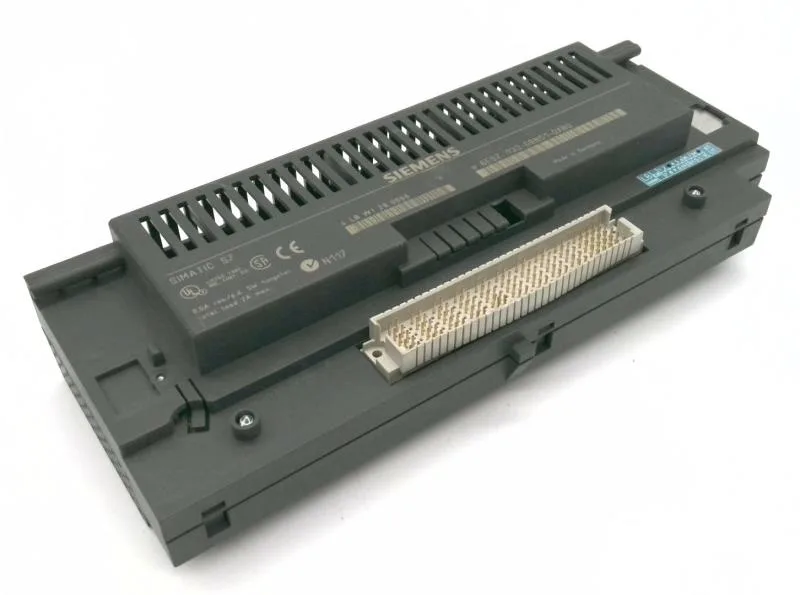

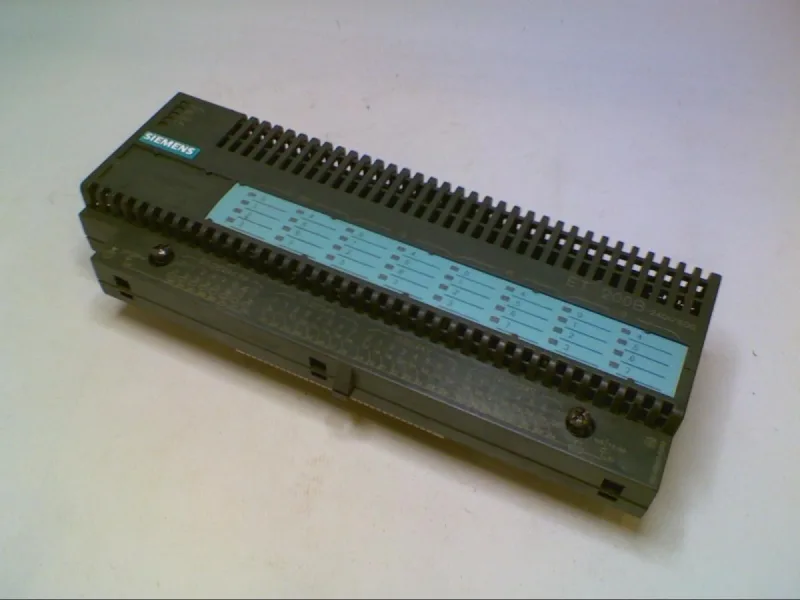

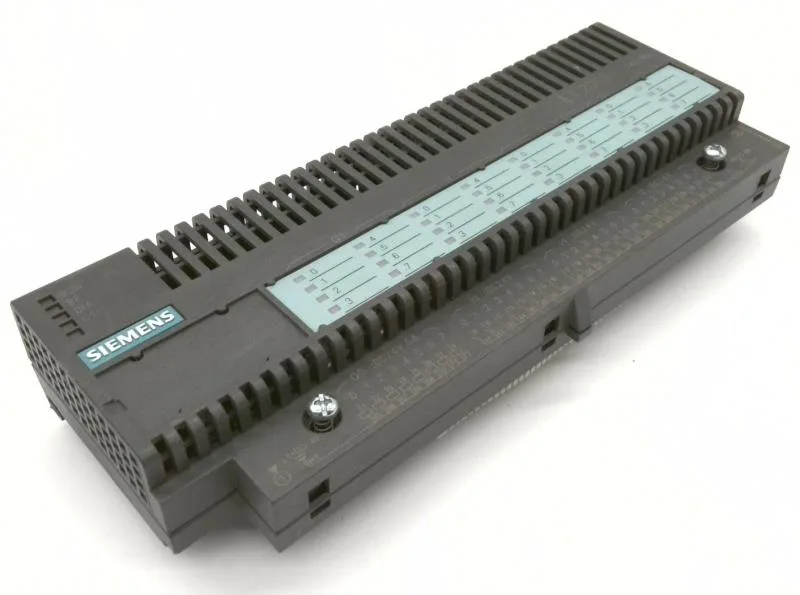

The 6ES7133-0BN01-0XB0 is a Siemens SIMATIC DP electronic module for the ET 200B remote I/O family, providing 24 digital inputs and 8 digital outputs at 24V DC, with a per-output rating of 0.5A. Communication is via PROFIBUS DP at up to 12 Mbit/s. The module measures 235 x 130 x 60 mm and draws 5.5 W.
