The 6ES7133-0HH01-0XB0: This SIMATIC DP electronic module, a designated spare part for the ET200B distributed I/O family, gives you 8 digital inputs and 8 digital outputs — 2 of those outputs are high-current relays, 6 are low-current. It accepts 120/230 V AC on the input side and also handles 24 to 150 V DC. Communication runs on PROFIBUS DP at up to 12 Mbit/s, with green status indicators for each input and output and a red bus fault LED. It's designed for the TB6/AC terminal block, keeping the same footprint as the original ET200B module.

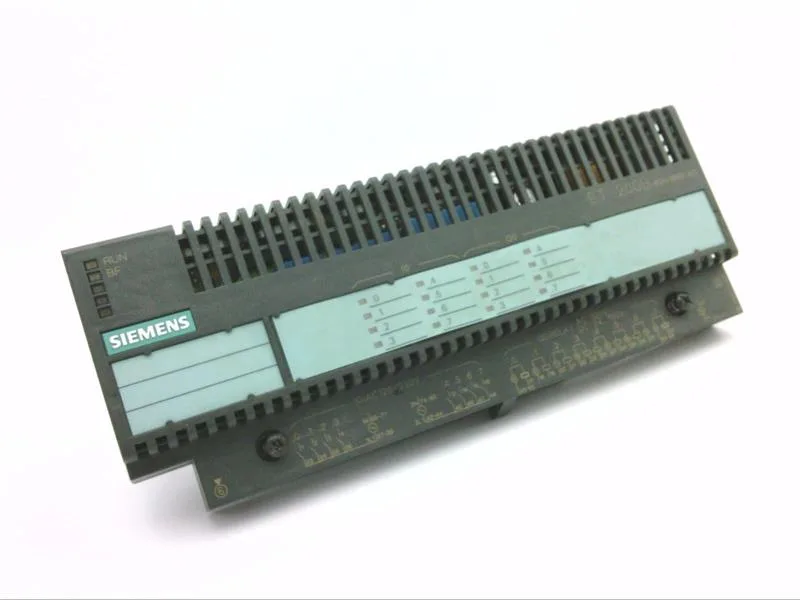

Siemens 6ES7133-0HH01-0XB0 SIMATIC DP 8DI/8RO Module
MPN6ES7133-0HH01-0XB0
SIMATIC DP, electronic module for ET200B, 8DI/8RO, 120/230V AC, applicable on TB6/AC, spare part.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 8; 2 high and 6 low current relays |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V DC to 150 V DC |
| Output current, resistive load, max. | 10 Hz |
| Output current, max. per circuit / per module | 4 A; 4 A (2 ports); 2 A (6 ports) |
| Output current up to 60 °C, max. | 2 A |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Electronic |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 2 Hz |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 60 °C; 40°C for other mountings |
| Operating temperature, horizontal mount, min. | 0 °C |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 100 m |
Product details
MPN
6ES7133-0HH01-0XB0
