Siemens 6ES7133-1BL01-0XB0 — Digital Output Modules

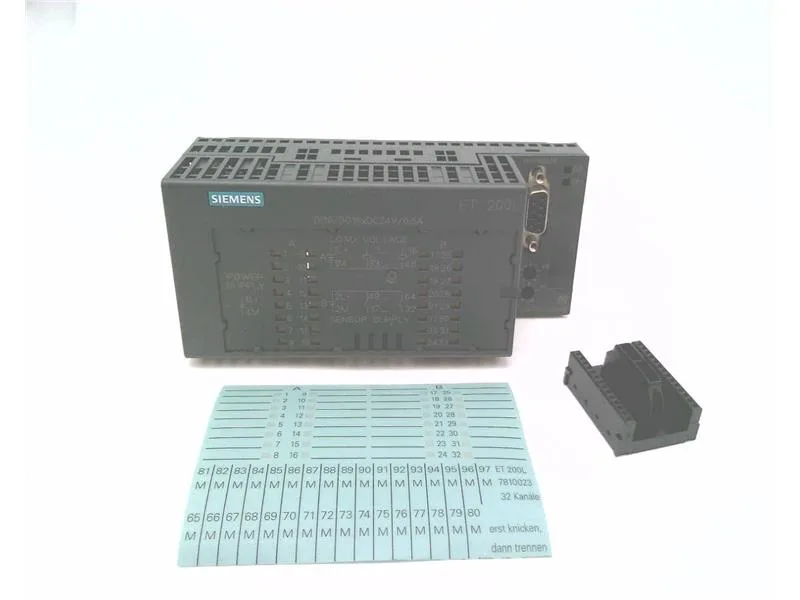

Siemens 6ES7133-1BL01-0XB0 Unclassified Module, 16 DI/16 DO, PROFIBUS DP

MPN6ES7133-1BL01-0XB0

Siemens 6ES7133-1BL01-0XB0. Full specifications and sourcing options are below.

$155.55 – $280.67Ref. price · indicative, final on quote
Siemens 6ES7133-1BL01-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6ES7133-1BL01-0XB0 — Outputs
ParameterValue
Digital outputs16
6ES7133-1BL01-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.100 Hz
Output current, max. per circuit / per module0.5 A
Output voltage at signal "1" (min.)Ua - 3 V
Residual current at signal "0", max.1 mA
Output current up to 60 °C, max.2 A
Power dissipation (typ.)5 W
Inductive shutdown voltage clampTyp. (L1+ or L2+ / L3+) -55 V
Load resistance, upper limit28 kΩ
Load resistance, lower limit41 Ω
Isolation between channelsNo
Isolation test voltage500 V DC
6ES7133-1BL01-0XB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes
Diagnostics functionYes
Short-circuit response threshold (typ.)0.7 A
Redundant load controlYes
Output can drive a digital inputYes
6ES7133-1BL01-0XB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.50 µs
Output switching delay 1 to 0, max.200 µs
Switching frequency, inductive load, max.0.5 Hz
Switching frequency, lamp load, max.8 Hz
6ES7133-1BL01-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C; 40°C for other mountings
Operating temperature, horizontal mount, min.0 °C
6ES7133-1BL01-0XB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width145 mm
Height60 mm
Depth60.5 mm
Weight (approx.)130 g

Product details

Overview

The 6ES7133-1BL01-0XB0 is a Siemens Unclassified module with 16 digital inputs and 16 digital outputs, communicating via PROFIBUS DP at up to 1.5 Mbit/s. It operates on a 24 VDC supply, draws 0.07 A, dissipates 5.0 W, and is rated IP20 for cabinet mounting.

Applications

As a mixed I/O module on PROFIBUS DP, it handles discrete sensing and actuation in machine cells, conveyor sections, and packaging stations.

PROFIBUS DP at 1.5 Mbit/s provides deterministic I/O update for time-sensitive control loops.

MPN
6ES7133-1BL01-0XB0
