Siemens 6ES7134-0HF01-0XB0 — Analog Input Modules

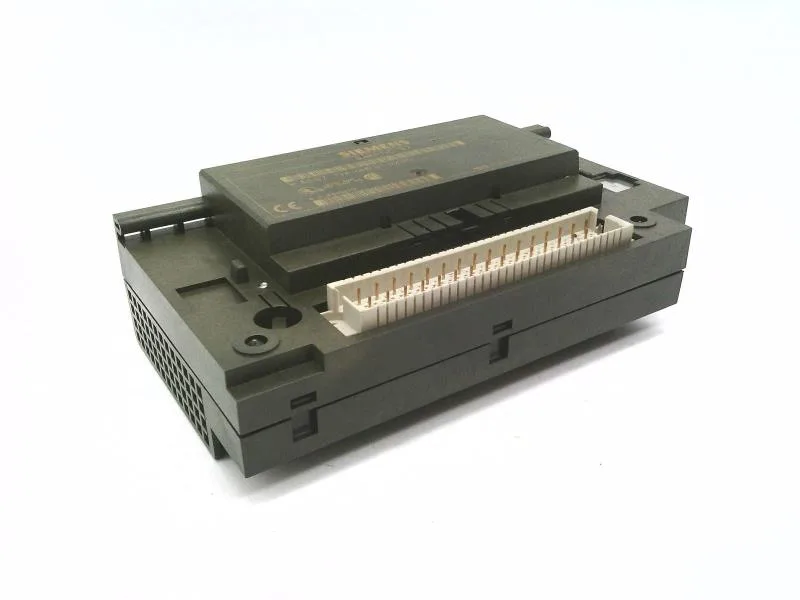

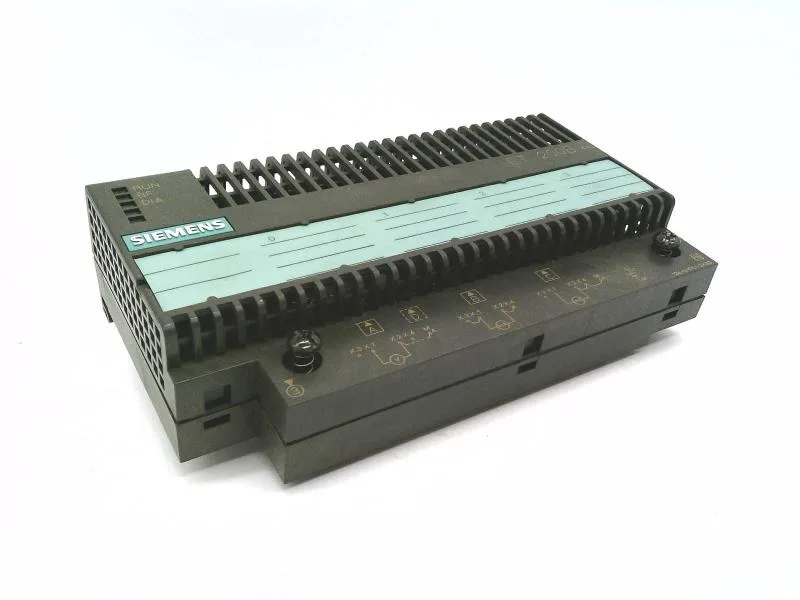

Siemens 6ES7134-0HF01-0XB0 ET 200SP AI 4xU/I, 60×160×130 mm

MPN6ES7134-0HF01-0XB0

Siemens ET 200SP analog input module, 4 AI, 24 V DC, multi-range ±10 V / ±20 mA, successive-approximation conversion, TB8 terminal block.

$622.30Ref. price · indicative, final on quote
Siemens 6ES7134-0HF01-0XB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7134-0HF01-0XB0 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs4
Current input rangeYes
Voltage input rangeYes
Input range: 0 to 20 mAYes
Input range: 4 to 20 mAYes
Input range: -10 to +10 VYes
Input range: -5 to +5 VYes
Current measurement: 2-wire transducerYes
Current measurement: 4-wire transducerYes
Input resistance (0 to 20 mA)125 Ω
Input resistance (4 to 20 mA)125 Ω
Input resistance (-10 to +10 V)100 kΩ
Permissible input voltage, max. (destruction limit)30 V; ±30 V (static) or ±75 V (pulse for max. 1 ms and mark to space ratio 1:20)
Permissible input current, max. (destruction limit)24 mA
Max. shielded signal cable length100 m
6ES7134-0HF01-0XB0 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.12 bit; Two's complement
Measurement principlesuccessive approximation
Voltage measurement error (±)0.15 %
Current measurement error (±)0.2 %
Common-mode interference suppression, min.70 dB; Upp < 1 V
6ES7134-0HF01-0XB0 — Diagnostics & Monitoring
ParameterValue
Diagnostic alarmYes; Parameterizable
Limit value alarmYes; Parameterizable, channels 0 and 2
6ES7134-0HF01-0XB0 — Power
ParameterValue
Rated value (DC)24 V; Value at t < 0.5 s: 35 V
Power loss, typ.1.8 W
6ES7134-0HF01-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C; 41 °C for other mountings
Operating temperature, horizontal mounting, min.0 °C
6ES7134-0HF01-0XB0 — Mechanical
ParameterValue
Width160 mm; EB and TB
Height130 mm; EB and TB
Depth60 mm; EB and TB
Weight, approx.550 g; EB and TB

Product details

Integrator note

The 6ES7134-0HF01-0XB0: Conversion is successive-approximation, not integrating – so you get deterministic per-channel updates at 0.1 ms integration time. Full four-channel cycle finishes within 5 ms, which suits fast closed-loop control or near-DC monitoring.

Input ranges and measurement

Common-mode rejection is 70 dB with UCM below 1 V – adequate for running shielded twisted-pair up to 100 m in mixed-voltage cabinets. The module reports overrange, diagnostic alarm, and limit-value alarm (channels 0 and 2 parameterizable).

Frequently asked questions

What are the physical dimensions of this module?

Width 160 mm, height 130 mm, depth 60 mm. These are the module body dimensions including the terminal block.

MPN
6ES7134-0HF01-0XB0
