Siemens 6ES7134-0KH01-0XB0 — Analog Input Modules

Siemens 6ES7134-0KH01-0XB0 Analog Input Module, RTD/TC

MPN6ES7134-0KH01-0XB0

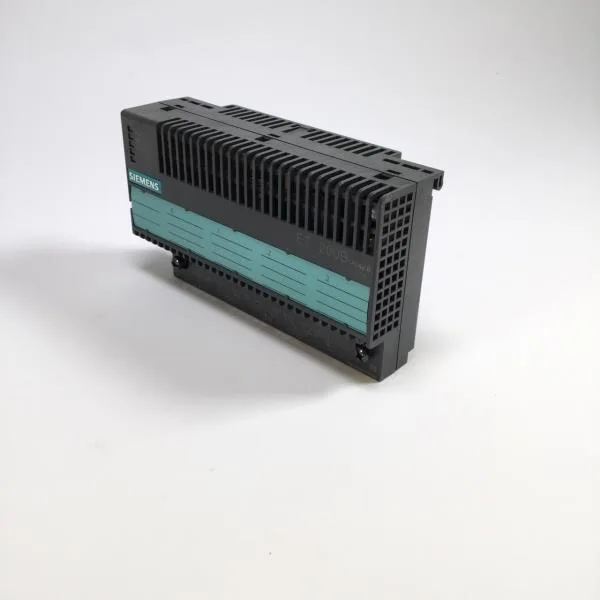

Siemens ET 200S analog input module, 6ES7134-0KH01-0XB0, 8-channel RTD/TC, 24 VDC, 60 x 160 x 130 mm (EB/TB).

$2,822.07Ref. price · indicative, final on quote
Siemens 6ES7134-0KH01-0XB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7134-0KH01-0XB0 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs8; 8 voltage inputs/thermocouples or 4 Pt100, Ni100
Voltage input rangeYes
Resistance measuring rangesYes
RTD support (resistance thermometer)Yes
Thermocouple support (types)Yes
Input range: -80 to +80 mVYes
Input range: 0 to 600 OhmYes
RTD type: Pt100Yes
Permissible input voltage, max. (destruction limit)32 V
Max. shielded signal cable length100 m
6ES7134-0KH01-0XB0 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.12 bit; Two's complement
Measurement principleIntegrating voltage/time conversion
Temperature measurement error (±)0.005 %/K
Voltage measurement error (±)0.6 %; At 80 mV; ±0.4 % from 250 to 1 000 mV
Interference voltage suppression (at interference frequency)400 / 60 / 50 / 10 Hz
Common-mode interference suppression, min.70 dB; Upp < 3 V
6ES7134-0KH01-0XB0 — Diagnostics & Monitoring
ParameterValue
Diagnostic alarmYes; Parameterizable
Limit value alarmYes; Parameterizable, channels 0 and 2
6ES7134-0KH01-0XB0 — Power
ParameterValue
Rated value (DC)24 V; Value at t < 0.5 s: 35 V
Power loss, typ.2 W
6ES7134-0KH01-0XB0 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C; 40°C for other mountings
Operating temperature, horizontal mounting, min.0 °C
6ES7134-0KH01-0XB0 — Mechanical
ParameterValue
Width160 mm; EB and TB
Height130 mm; EB and TB
Depth60 mm; EB and TB
Weight, approx.550 g; EB and TB

Product details

What this module handles on the line

The Siemens 6ES7134-0KH01-0XB0 is an 8-channel analog input module for the ET 200S distributed I/O system. It accepts RTDs (Pt100, Ni100) and thermocouples (Types E, J, K, L, N, R, T, U), converting them to digital values for the backplane bus. The integrating voltage/time conversion measurement principle rejects noise on long field runs — shielded cable up to 100 m is specified.

Supply and power budget

Rated 24 VDC supply with a 35 V surge tolerance for transients under 0.5 s. Typical power loss is 2 W — no forced cooling needed in a standard IP20 enclosure, but account for the heat in a densely packed cabinet near the kiln or preheater.

Diagnostics you can use

Parameterizable diagnostic alarm and a limit value alarm on channels 0 and 2. The RUN LED and bus fault BF (red) LED give on-card status without reaching for a programming device. Overrange detection is built in — useful for catching a broken thermocouple before it drifts the process.

Frequently asked questions

What thermocouple types does 6ES7134-0KH01-0XB0 support?

It supports Types E, J, K, L, N, R, T, and U. It also handles Pt100 and Ni100 RTDs, plus millivolt ranges from -80 mV to +500 mV and resistance ranges from 0 to 600 ohms.

Where can I buy 6ES7134-0KH01-0XB0?

This module is sourced through independent distribution.

MPN
6ES7134-0KH01-0XB0
