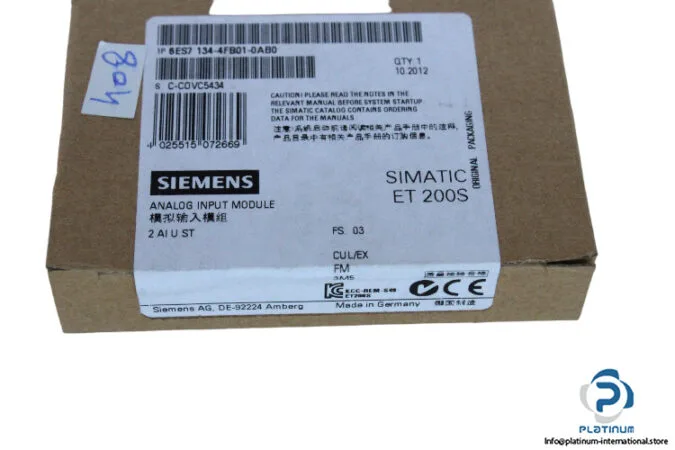

6ES7134-4FB01-0AB0 - Siemens
MPN6ES7134-4FB01-0AB0
SIMATIC DP, Electronics module for ET 200S, 2 AI Standard U 15 mm width, +/-10V; 13 bit+sign +/-5 V; 12 bit+sign, 1..5 V; 12-bit Cycle time 65 ms/channel with SF LED (group fault)
$75.00 – $224.00Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Analog inputs | 2 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Power loss (typ.) | 0.6 W |
| Current consumption from load voltage L+ (no load), max. | 30 mA |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 200 m |
Performance
| Parameter | Value |
|---|---|
| Resolution incl. overrange (bit, with sign), max. | 14 bit; ±10 V: 13 bit + sign, ±5 V: 13 bit + sign; 1 to 5 V: 13 bit |
| Parameterizable | Yes; In four stages by means of digital filtering |
| Group fault indicator (SF, red LED) | Yes |
Mechanical
| Parameter | Value |
|---|---|
| Height | 81 mm |
| Width | 15 mm |
| Depth | 52 mm |
| Weight (approx.) | 40 g |
MPN
6ES7134-4FB01-0AB0
