The 6ES7134-4GB10-0AB0 is a Siemens ET 200S analog input module providing two channels configurable for 4–20 mA or ±20 mA ranges, each with a 50 Ω input resistance. Wire-break diagnostics activate only in the 4–20 mA range; the module flags a group error (SF red) and individual channel faults when enabled. Conversion time runs 65 ms per channel; integration time selectable at 16,7 or 20 ms via parameterization, with four-stage digital filtering. Dimensions are 15 mm wide by 52 mm deep by 81 mm high, fitting standard ET 200S spacing. Isolation is tested at 500 V DC between channels and backplane.

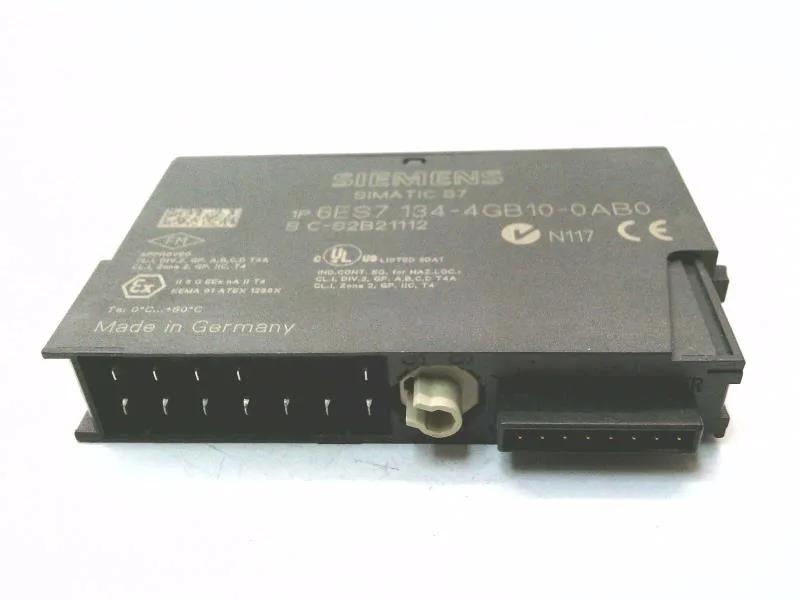

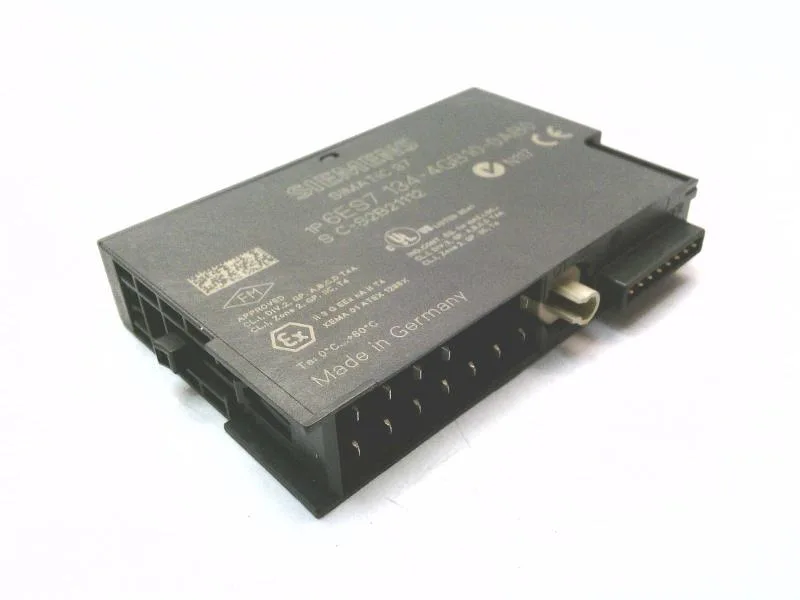

Siemens 6ES7134-4GB10-0AB0 Analog Input Module, 2 AI, 4–20 m
MPN6ES7134-4GB10-0AB0
Siemens ET 200S analog input module, 2 AI, 4–20 mA / ±20 mA, 52 × 81 × 15 mm, parameterizable integration time and diagnostics.
$217.17Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Analog inputs | 2 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Power loss (typ.) | 0.6 W |
| Current consumption from load voltage L+ (no load), max. | 30 mA |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 200 m |
| Parameter | Value |
|---|---|
| Resolution incl. overrange (bit, with sign), max. | 14 bit; ±20 mA: 14 bit, 4 to 20 mA: 13 bit |
| Parameterizable | Yes; In four stages by means of digital filtering |
| Group fault indicator (SF, red LED) | Yes |
| Parameter | Value |
|---|---|
| Height | 81 mm |
| Width | 15 mm |
| Depth | 52 mm |
| Weight (approx.) | 40 g |
Product details
Frequently asked questions
What are the analog input ranges and input resistance?
The module supports 4–20 mA and ±20 mA ranges, both with 50 Ω input resistance.
Does it support wire break detection and how is it configured?
Yes, wire break detection is available but only when the range is set to 4–20 mA. It can be enabled/disabled via parameterization.
What are the physical dimensions of this module?
Width 15 mm, depth 52 mm, height 81 mm.
MPN
6ES7134-4GB10-0AB0
