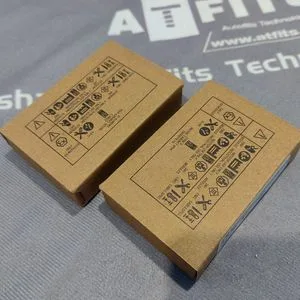

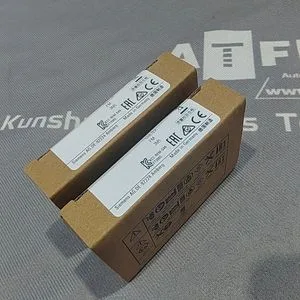

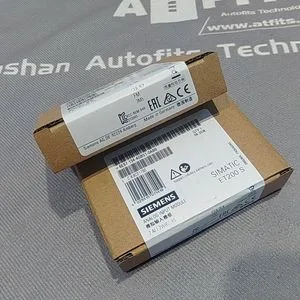

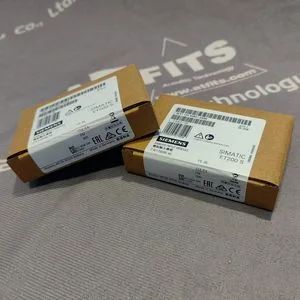

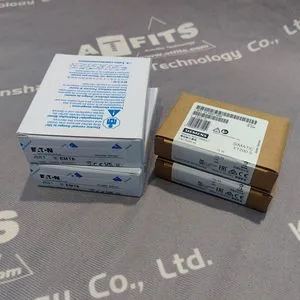

Siemens 6ES7134-4GB51-0AB0
MPN6ES7134-4GB51-0AB0
***Spare part*** SIMATIC DP, Electronics module ET200S: 2AI High Speed I-2-wire 4-20 mA; 14 bit, 15 mm width, for 2-wire transducer Cycle time of module: 1 ms, with SF LED (group fault)
$265.43Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Analog inputs | 2 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Power loss (typ.) | 0.8 W |
| Current consumption from load voltage L+ (no load), max. | 35 mA; Without encoder supply voltage |
| Short-circuit protection | Yes; Electronic |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 200 m |
| Parameter | Value |
|---|---|
| Resolution incl. overrange (bit, with sign), max. | 13 bit; 4 to 20 mA: 13 bit, 0 to 20 mA: 13 bit |
| Parameterizable | Yes; In four stages by means of digital filtering |
| Group fault indicator (SF, red LED) | Yes |
| Parameter | Value |
|---|---|
| Height | 81 mm |
| Width | 15 mm |
| Depth | 52 mm |
| Weight (approx.) | 40 g |
MPN
6ES7134-4GB51-0AB0
