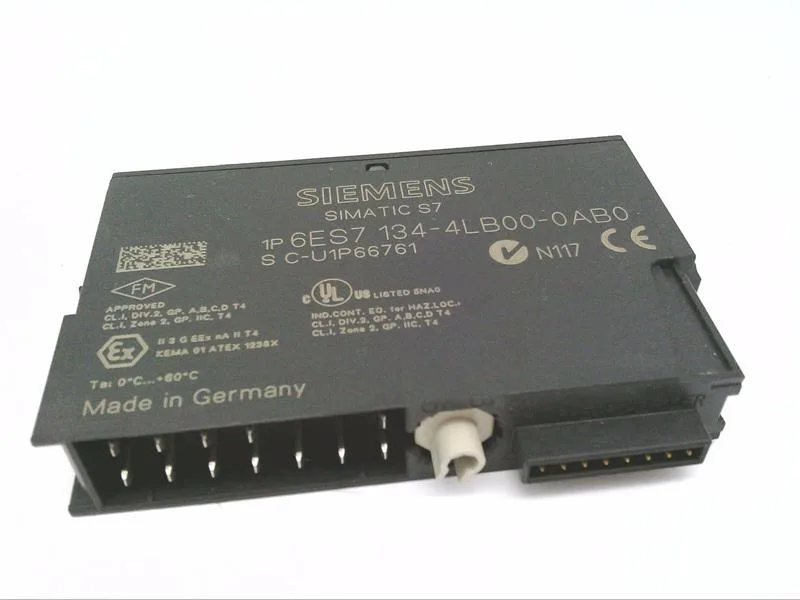

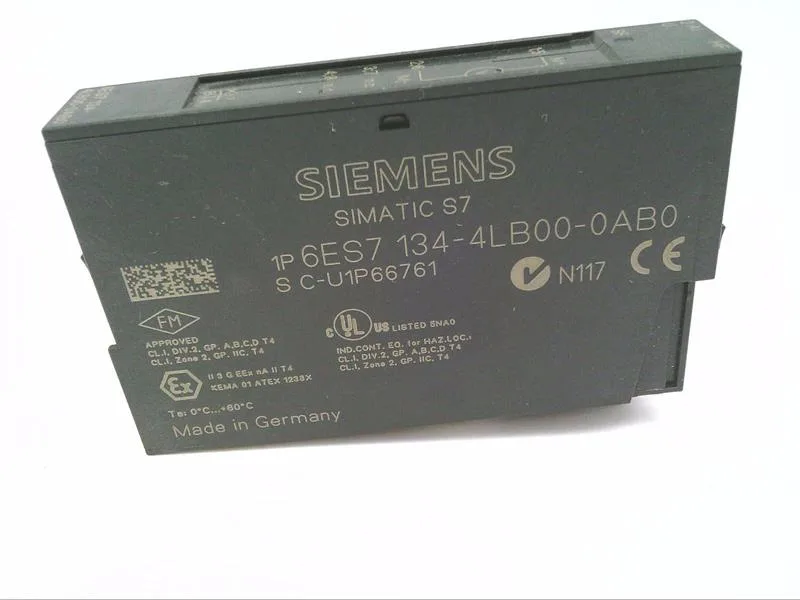

The Siemens 6ES7134-4LB00-0AB0 is a 2-channel analog input module for the ET 200S distributed I/O system. It accepts standard voltage signals across three ranges — ±10 V, ±5 V, and 1 to 5 V — and delivers 16-bit resolution with overrange (±10 V and ±5 V get 16 bits, 1-5 V gets 15 bits). The module measures 81 by 15 by 52 mm, a typical three-high slice that fits any ET 200S terminal block without crowding adjacent modules.
When the loop needs speed or filtering
Group diagnostics, wire break detection, and overflow/underflow are individually disable/enable toggles. The group error SF (red) LED signals any enabled condition — a solid red means something got flagged, not necessarily a hardware fault. Use group diagnostics sparingly on a large I/O rack to avoid flooding the CPU with analog alarms.
