Module integration brief

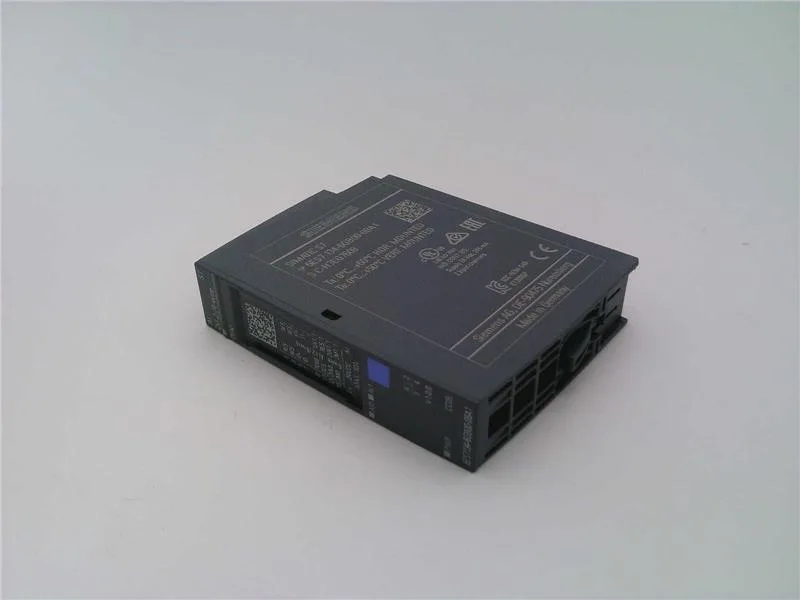

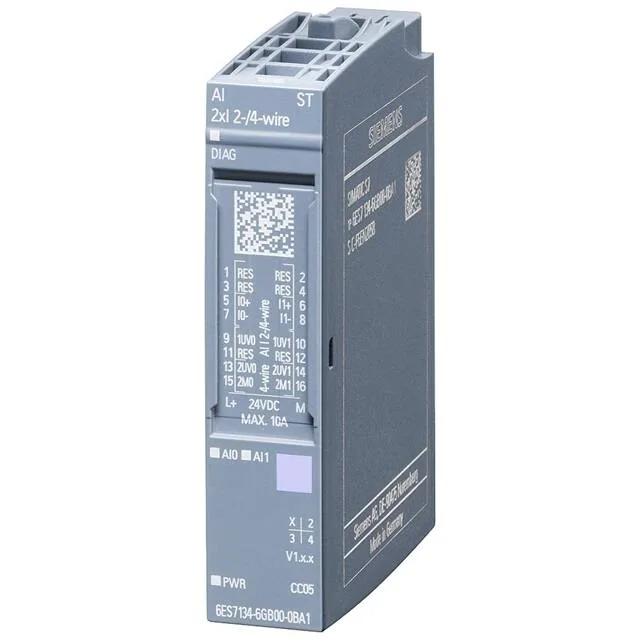

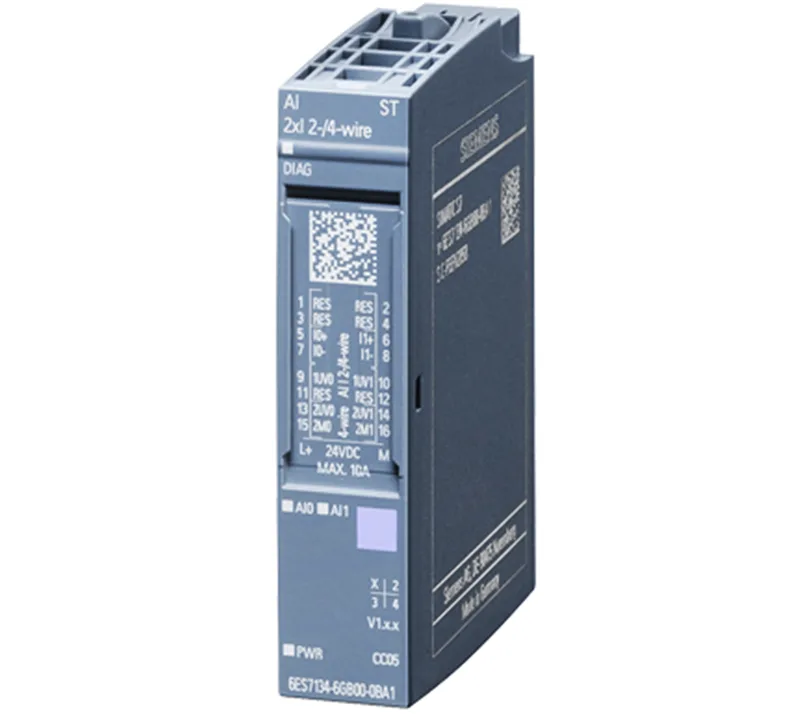

This 6ES7134-6GB00-0BA1 SIMATIC ET 200SP analog input module sits on the backplane, addressed automatically via the BaseUnit. It takes two 4-20 mA signals at 15-bit resolution — enough for flow or pressure transmitters in a standard process cell. The diagnostic register flags wire breaks on the 4-20 mA range and short-circuits on the encoder supply, so the CPU sees exactly what's wrong without ladder logic traps. Power budget: draws 1.1 W from the 24 V backplane, leaving headroom for more slices in the same rack.
Field service note – diagnostics and swap
When you're troubleshooting a bum channel on site, the green LED per channel gives you a quick visual — no guessing. The module supports I&M data (I&M0 to I&M3), so after a swap the PLC can verify it's the correct type and revision. Automatic encoding means the configuration ID is read from the module; drop in a replacement and the hardware catalog picks it up without re-assigning slots. That's the kind of detail that saves a second trip.
