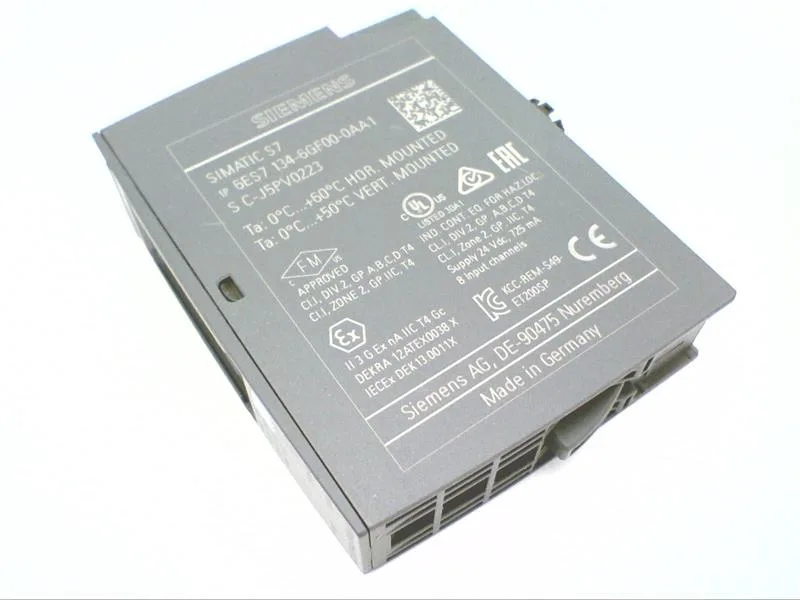

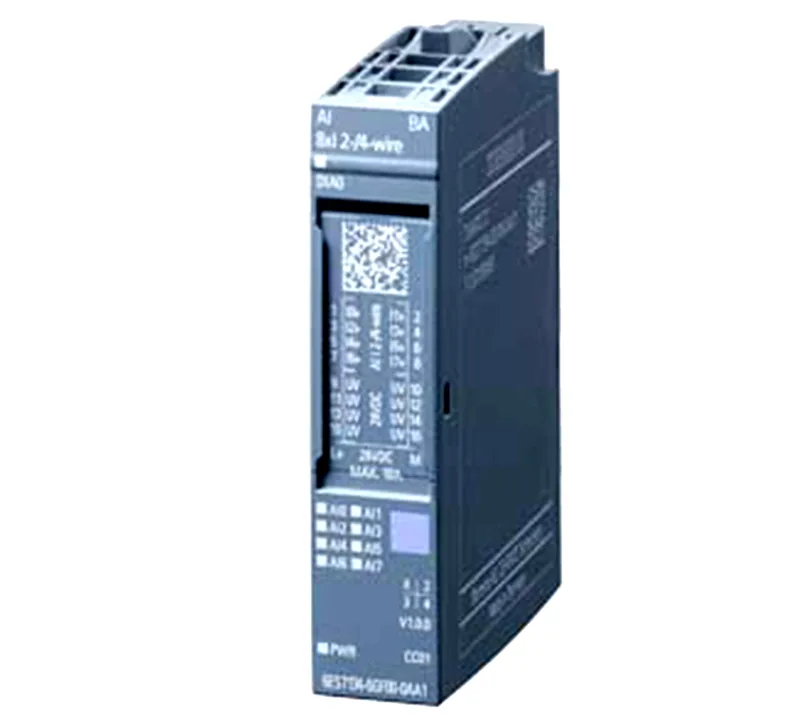

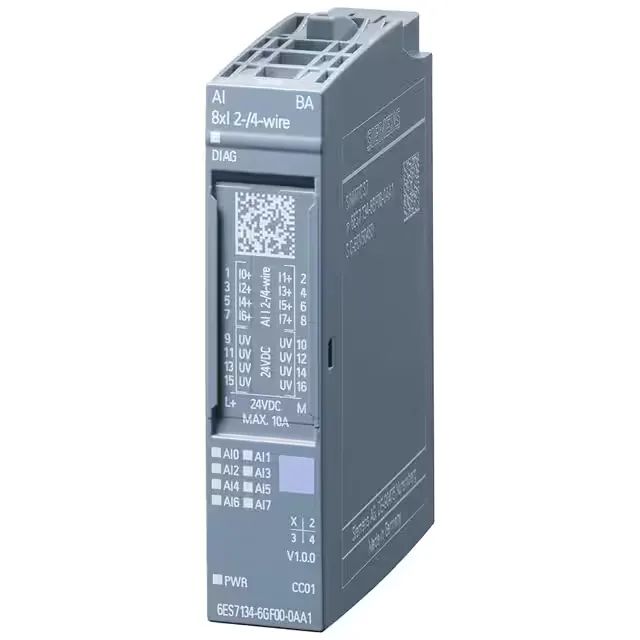

6ES7134-6GF00-0AA1 - Siemens
MPN6ES7134-6GF00-0AA1
Active
SIMATIC ET 200SP, Analog input module, AI 8XI 2-/4-wire Basic, suitable for BU type A0, A1, Color code CC01, Module diagnostics, 16 bit
$157.48Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs & Signal Ranges
| Parameter | Value |
|---|---|
| Number of analog inputs | 8; Single-ended |
| Input range: 0 to 20 mA | Yes |
| Input range: 4 to 20 mA | Yes |
| Current measurement: 2-wire transducer | Yes |
| Current measurement: 4-wire transducer | Yes |
| Input resistance (0 to 20 mA) | 100 Ω; 15 bit |
| Input resistance (4 to 20 mA) | 100 Ω; 15 bit |
| Permissible input current, max. (destruction limit) | 50 mA |
| Max. shielded signal cable length | 200 m |
Measurement Performance
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 16 bit |
| Temperature measurement error (±) | 0.005 %/K |
| Current measurement error (±) | 0.3 % |
| Interference voltage suppression (at interference frequency) | 16.67 / 50 / 60 / 4 800 (16.67 / 50 / 60) |
Diagnostics & Monitoring
| Parameter | Value |
|---|---|
| Wire-break detection | Yes; at 4 to 20 mA |
| Diagnostic alarm | Yes |
| Diagnostics function | Yes |
| Limit value alarm | No |
| Supply voltage monitoring | Yes |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation test voltage | 707 V DC (type test) |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 0.7 W; Without encoder supply voltage |
| Reverse polarity protection | Yes |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mounting, max. | 60 °C |
| Operating temperature, horizontal mounting, min. | -30 °C; < 0 °C as of FS04 |
| Operating temperature, vertical mounting, max. | 50 °C |
| Operating temperature, vertical mounting, min. | -30 °C; < 0 °C as of FS04 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
