Siemens 6ES7134-6HD01-2BA1 — Analog Input Modules

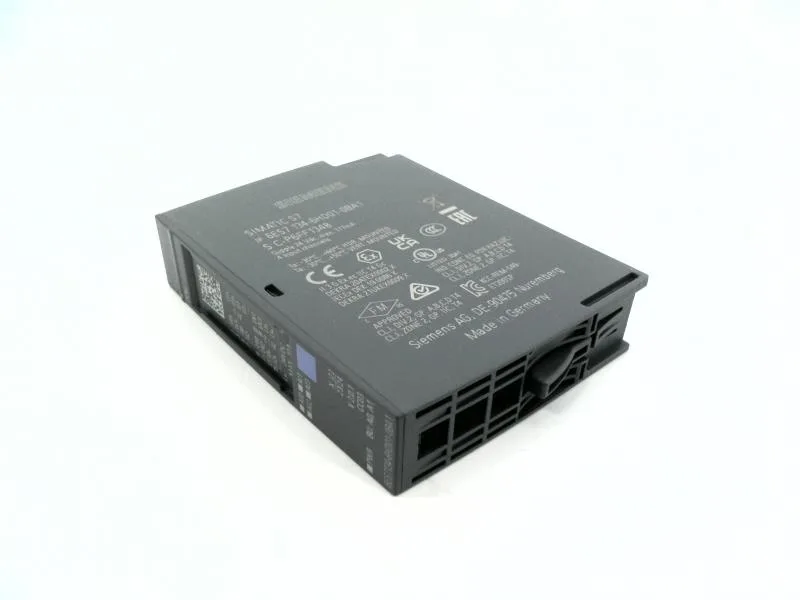

Siemens 6ES7134-6HD01-2BA1 Analog Input Module, 24 V, 2-wire

MPN6ES7134-6HD01-2BA1
Active

Siemens, ET 200SP, analog input module, 6ES7134-6HD01-2BA1, 2-wire, 24 V DC, 15/16-bit resolution, width 15 mm.

$125.73 – $349.76Ref. price · indicative, final on quote
Siemens 6ES7134-6HD01-2BA1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7134-6HD01-2BA1 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs4; Differential inputs
Input range: 0 to 20 mAYes; 15 bit
Input range: 4 to 20 mAYes; 15 bit
Input range: -10 to +10 VYes; 16 bit incl. sign
Input range: -5 to +5 VYes; 16 bit incl. sign
Current measurement: 2-wire transducerYes
Current measurement: 4-wire transducerNo
Input resistance (0 to 20 mA)100 Ω; + approx. 0.7 V diode forward voltage
Input resistance (4 to 20 mA)100 Ω; + approx. 0.7 V diode forward voltage
Input resistance (-10 to +10 V)120 kΩ
Permissible input voltage, max. (destruction limit)30 V
Permissible input current, max. (destruction limit)50 mA
Max. shielded signal cable length1 000 m; 200 m for voltage measurement
6ES7134-6HD01-2BA1 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.16 bit
Measurement principleintegrating (Sigma-Delta)
Temperature measurement error (±)0.005 %/K
Voltage measurement error (±)0.3 %
Current measurement error (±)0.3 %
Interference voltage suppression (at interference frequency)16.6 / 50 / 60 Hz
Common-mode interference suppression, min.90 dB
Common-mode voltage, max.10 V
6ES7134-6HD01-2BA1 — Diagnostics & Monitoring
ParameterValue
Wire-break detectionYes; at 4 to 20 mA
Diagnostic alarmYes
Diagnostics functionYes
Limit value alarmNo
Supply voltage monitoringYes
6ES7134-6HD01-2BA1 — Isolation
ParameterValue
Isolation: channels to backplane busYes
Isolation: between channelsYes; channel group-specific between 2-wire current input group and voltage input group
Isolation test voltage707 V DC (type test)
6ES7134-6HD01-2BA1 — Power
ParameterValue
Rated value (DC)24 V
Power loss, typ.0.85 W; Without encoder supply voltage
Reverse polarity protectionYes
6ES7134-6HD01-2BA1 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C
Operating temperature, horizontal mounting, min.-30 °C; < 0 °C as of FS02
Operating temperature, vertical mounting, max.50 °C
Operating temperature, vertical mounting, min.-30 °C; < 0 °C as of FS02
6ES7134-6HD01-2BA1 — Mechanical
ParameterValue
Width15 mm
Height73 mm
Depth58 mm
Weight, approx.31 g

Product details

What this 2-wire analog input module fits

The Siemens 6ES7134-6HD01-2BA1 is a 2-wire analog input module for the ET 200SP distributed I/O system. It accepts 2-wire transmitters (loop-powered) and 4-wire sensors across voltage and current ranges: 0 to 10 V, 0 to 20 mA, 4 to 20 mA, 1 to 5 V, ±5 V, and ±10 V. The 15-bit resolution covers the standard process ranges; the ±5 V and ±10 V ranges get 16 bits including sign.

Wire-break detection and diagnostics

Wire-break detection is active on the 4 to 20 mA range — a key feature when feeding a loop-powered transmitter on a long cable run. Short-circuit detection is also available on the 1 to 5 V range and in 2-wire mode, covering encoder supply shorts to ground or an input short to the encoder supply. Diagnostics include a group error LED, a per-channel green status LED, and a combined green/red module diagnostics LED. Diagnostic alarms and overflow/underflow detection are built in; limit-value alarms are not supported.

BaseUnit compatibility and panel fit

Automatic encoding is supported, so the module ID is read on insertion without manual addressing. Firmware updates are field-applicable through the ET 200SP backplane.

Frequently asked questions

Is the Siemens 6ES7134-6HD01-2BA1 still active and available to order?

Buyers need to confirm the product is not obsolete before investing in design or BOM.

What base units (BU type) are compatible with 6ES7134-6HD01-2BA1?

Compatibility with base units A0 or A1 determines physical integration in an ET 200SP station.

What is the packing unit for Siemens 6ES7134-6HD01-2BA1 and can I buy a single unit?

The product is sold in packs of 10, impacting order quantity and cost for small projects.

What is the difference between 6ES7134-6HD01-2BA1 and 6ES7134-6HD00-2BA1?

Engineers need to differentiate between similar models to select the correct module for their application.

Does 6ES7134-6HD01-2BA1 support 4-20 mA sensors with wire-break detection?

Wire-break detection is a critical feature for process monitoring, requiring confirmation before purchase.

Where can I buy Siemens 6ES7134-6HD01-2BA1 with fast delivery?

Sourcing buyers need to quickly locate a distributor with stock to avoid production delays.

MPN
6ES7134-6HD01-2BA1
