Siemens 6ES7134-6JD00-0CA1 — Analog Input Modules

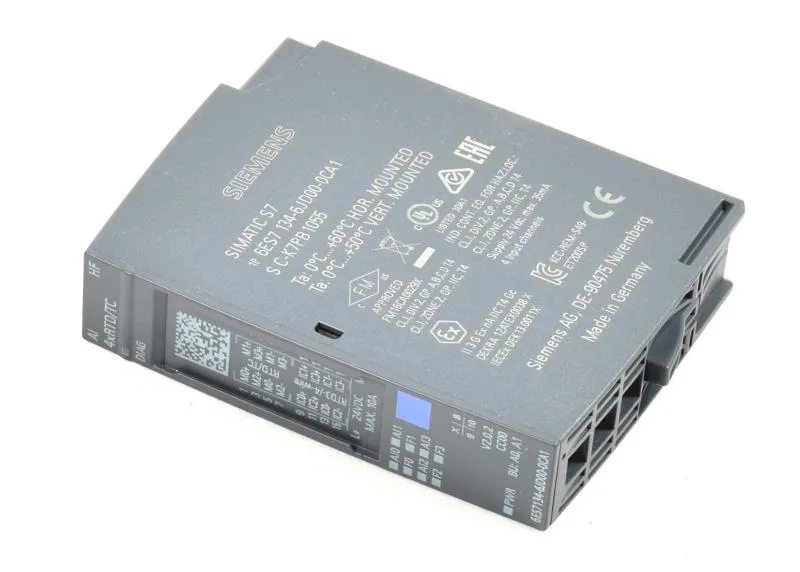

Siemens 6ES7134-6JD00-0CA1 Analog Input Module, PTC 15-bit

MPN6ES7134-6JD00-0CA1
Active

Siemens ET 200SP analog input module, 6ES7134-6JD00-0CA1, PTC 15-bit, RTD/thermocouple/mV, 15 mm width, 58 mm depth.

$171.45Ref. price · indicative, final on quote
Siemens 6ES7134-6JD00-0CA1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7134-6JD00-0CA1 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs4
Input range: -80 to +80 mVYes; 16 bit incl. sign
Input range: 0 to 600 OhmYes; 15 bit
RTD type: Pt100Yes; 16 bit incl. sign
RTD type: Pt200Yes; 16 bit incl. sign
Permissible input voltage, max. (destruction limit)30 V
Max. shielded signal cable length200 m; 50 m with thermocouples
6ES7134-6JD00-0CA1 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.16 bit
Measurement principleintegrating (Sigma-Delta)
Temperature measurement error (±)0.0009 %/K; ±0.005 % / K at thermocouple
Voltage measurement error (±)0.05 %
Interference voltage suppression (at interference frequency)16.6 / 50 / 60 Hz
Common-mode interference suppression, min.90 dB
Common-mode voltage, max.10 V
6ES7134-6JD00-0CA1 — Diagnostics & Monitoring
ParameterValue
Wire-break detectionYes; channel by channel
Limit value alarmYes; two upper and two lower limit values in each case
Supply voltage monitoringYes
6ES7134-6JD00-0CA1 — Power
ParameterValue
Rated value (DC)24 V
Power loss, typ.0.75 W
Reverse polarity protectionYes
6ES7134-6JD00-0CA1 — Environmental
ParameterValue
Operating temperature, horizontal mounting, max.60 °C
Operating temperature, horizontal mounting, min.-30 °C; < 0 °C as of FS08
Operating temperature, vertical mounting, max.50 °C
Operating temperature, vertical mounting, min.-30 °C; < 0 °C as of FS08
6ES7134-6JD00-0CA1 — Mechanical
ParameterValue
Width15 mm
Height73 mm
Depth58 mm

Product details

ET 200SP slice with PTC and RTD coverage

The 6ES7134-6JD00-0CA1 is a 15 mm-wide analog input module for the Siemens ET 200SP distributed I/O system. It reads PTC thermistors at 15-bit resolution and handles the full range of RTDs (Pt100, Pt1000, Ni100, Ni1000) and thermocouples (types B, C, E, J, K, L, N, R, S, T, U) at 16-bit resolution including sign. The module also accepts low-level mV signals (-50 mV to +50 mV, -80 mV to +80 mV, -1 V to +1 V) and resistance ranges up to 6000 ohms, making it a single-slot solution for temperature, strain-gauge, and resistive-sensor inputs.

Sensor types and wiring reach

Maximum cable length is 200 m for shielded RTD/resistance inputs, derated to 50 m for thermocouple inputs — the mV-level signal is more susceptible to noise over longer runs. Channel-by-channel wire-break detection and a group error signal are built in, so a failed sensor flags the specific channel without pulling down the entire module. I&M data (I&M0 to I&M3) is supported for asset tracking in TIA Portal.

Frequently asked questions

Is 6ES7134-6JD00-0CA1 compatible with my Siemens ET 200SP system?

Yes, the 6ES7134-6JD00-0CA1 is a standard ET 200SP I/O module (15 mm width, 58 mm depth, 73 mm height) that snaps onto the DIN rail and connects via the backplane bus. It fits any ET 200SP interface module or bus adapter.

What sensors does 6ES7134-6JD00-0CA1 support?

It supports PTC thermistors (15-bit), RTDs (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, LG-Ni1000) at 16-bit including sign, thermocouples (types B, C, E, J, K, L, N, R, S, T, U) at 16-bit including sign, and low-level mV and resistance ranges.

Where can I buy 6ES7134-6JD00-0CA1?

Send your quantity and target delivery window for a current price and lead-time quote.

MPN
6ES7134-6JD00-0CA1
