The Siemens 6ES7134-7SD00-0AB0 is a 4-channel analog input module for thermocouples in the SIMATIC ET 200SP I/O system. It accepts types B, C, E, J, K, L, N, R, S, T, and U, each with a 1 MΩ input resistance. Measurement is integrating (Sigma-Delta), with parametric step filtering from 1x to 64x cycle time to tune noise rejection against process speed. Shielded cable runs up to 50 m. Diagnostic and limit value alarms are parameterizable. Power draw is 0.4 W typical, 17 mA from the backplane bus.

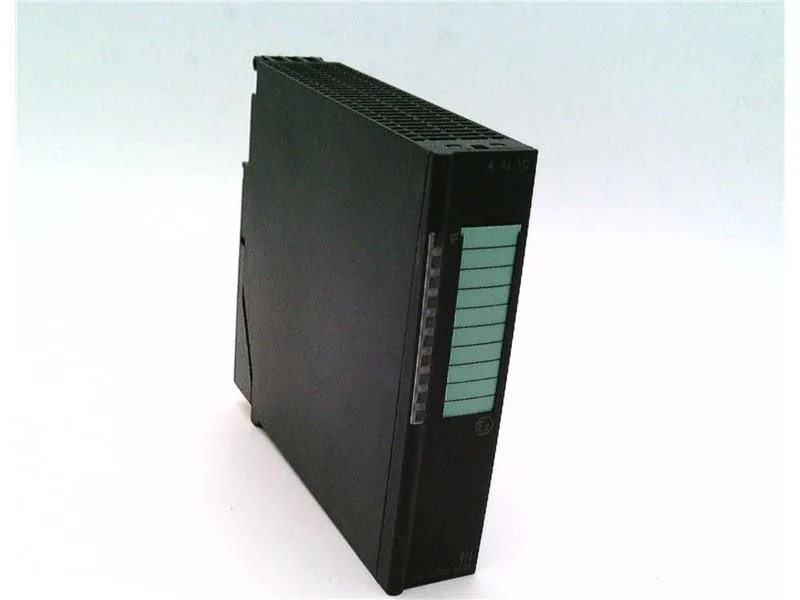

Siemens 6ES7134-7SD00-0AB0 SIMATIC ET 200SP, 4 AI TC Module
MPN6ES7134-7SD00-0AB0
Active
Siemens SIMATIC ET 200SP, 6ES7134-7SD00-0AB0, 4 analog inputs for thermocouples, depth 136.5 mm, width 30 mm, height 129 mm.
$464.82 – $947.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Analog inputs | 4 |
Electrical
| Parameter | Value |
|---|---|
| Power loss (typ.) | 0.4 W |
| Isolation: between channels | Yes; Functional |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 50 m |
Performance
| Parameter | Value |
|---|---|
| Resolution incl. overrange (bit, with sign), max. | 16 bit |
| Parameterizable | Yes; in 4 stages |
| Diagnostic alarm | Yes; Parameterizable |
| Group fault indicator (SF, red LED) | Yes |
Mechanical
| Parameter | Value |
|---|---|
| Height | 129 mm |
| Width | 30 mm |
| Depth | 136.5 mm |
| Weight (approx.) | 230 g |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
Product details
Frequently asked questions
What are the key dimensions of this module?
Width 30 mm, depth 136.5 mm, height 129 mm. It fits standard ET 200SP base units.
What compliance documentation is available for 6ES7134-7SD00-0AB0?
The module carries a CE mark. Other certifications (e.g., RoHS, UL) are not detailed in the standard listing.
