Siemens 6ES7135-4LB00-0AB0 — Analog Output Modules

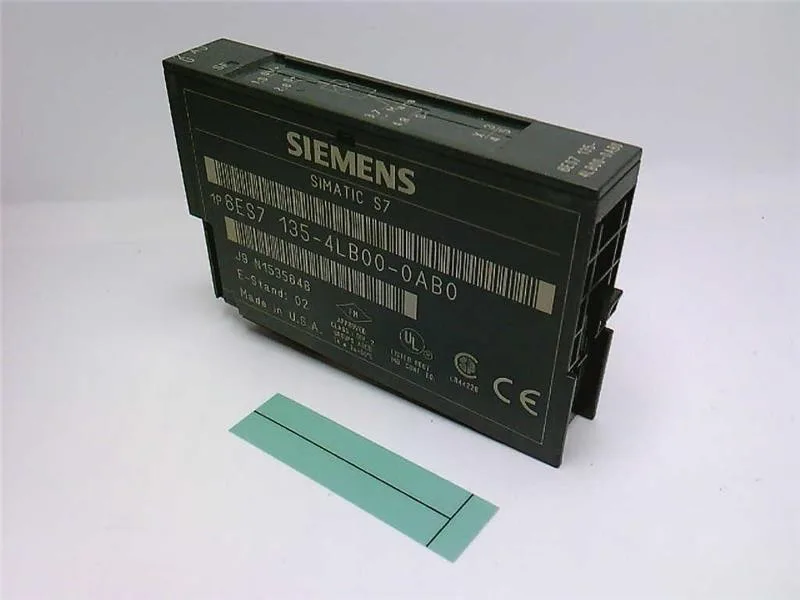

Siemens 6ES7135-4LB00-0AB0 ET 200SP 2AO U, 15x81x52 mm

MPN6ES7135-4LB00-0AB0

Siemens ET 200SP, 6ES7135‑4LB00‑0AB0, 2‑channel analog output module, voltage output (1–5 V / ±10 V), 15 mm×81 mm×52 mm, diagnostics enabled/disabled.

$93.56Ref. price · indicative, final on quote
Siemens 6ES7135-4LB00-0AB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7135-4LB00-0AB0 — Outputs
ParameterValue
Number of analog outputs2
Output range: -10 V to +10 VYes
Output range: 1 V to 5 VYes
Load resistance, voltage outputs, min.1 kΩ
Voltage output, short-circuit current, max.25 mA
Voltage output, short-circuit protectionYes
Capacitive load, voltage outputs, max.1 µF
Cable length, shielded, max.200 m
6ES7135-4LB00-0AB0 — Performance
ParameterValue
Resolution (incl. sign, with overrange), max.16 bit; 1 to 5 V: 14 bit, ±10 V: 16 bit
Error, voltage output (rel. to output range)0.01 %
Settling time, resistive load0.1 ms
Settling time, inductive load0.5 ms
Settling time, capacitive load0.5 ms
6ES7135-4LB00-0AB0 — Power
ParameterValue
Rated value (DC)24 V; From power module
Current consumption from load voltage L+ (no load), max.130 mA
Reverse polarity protectionYes
6ES7135-4LB00-0AB0 — Diagnostics
ParameterValue
Short-circuit detection (voltage outputs)Yes
6ES7135-4LB00-0AB0 — Isolation
ParameterValue
Isolation: channels to backplane busYes
Isolation: between channelsNo
Isolation: channels to load voltage L+Yes
6ES7135-4LB00-0AB0 — Mechanical
ParameterValue
Width15 mm
Height81 mm
Depth52 mm

Product details

The 6ES7135-4LB00-0AB0 is a 2-channel analog output module for ET 200SP, outputs voltage in 1 to 5 V or ±10 V ranges, draws up to 130 mA from load L+ and 10 mA from backplane bus, dissipates 2.5 W, and fits a 15 mm wide slice.

Fit & Ratings

Width of 15 mm fits any standard ET 200SP slot; depth 52 mm and height 81 mm match the system profile. Cycle time across all channels is 2.5 ms – adequate for process control loops but not sub‑millisecond motion axes. The module supports voltage output with a minimum load of 1 kΩ and capacitive load up to 1 µF.

Frequently asked questions

What voltage ranges does the 6ES7135‑4LB00‑0AB0 support?

The module outputs voltage in two ranges: 1 to 5 V and –10 to +10 V, selectable per channel.

MPN
6ES7135-4LB00-0AB0
