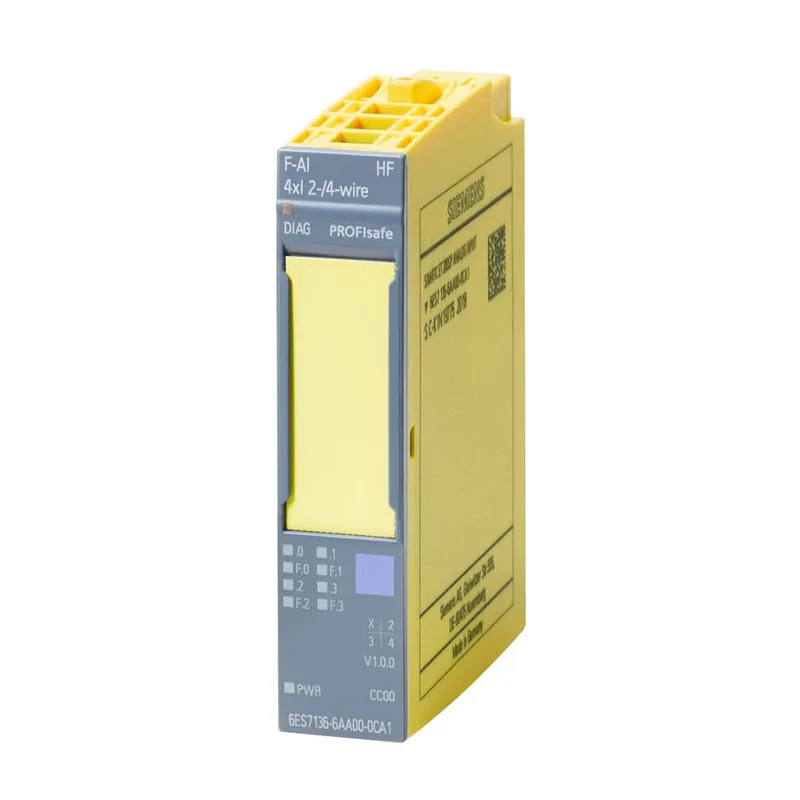

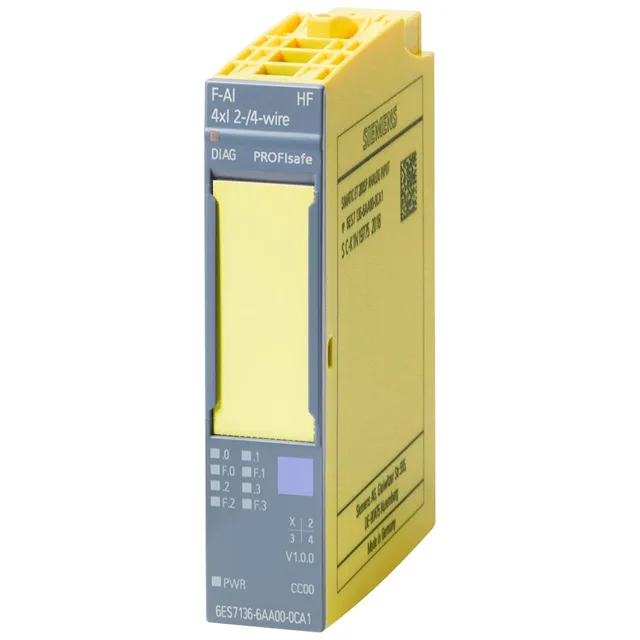

Siemens 6ES7136-6AA00-0CA1 is a 4-channel analog input module for ET 200SP that accepts 0 to 20 mA and 4 to 20 mA signals with configurable integration times. It is rated SIL 3 and operates on 24 V DC with 2 W dissipation.
Mechanical & Diagnostic Fit
Mechanical fit matches the ET 200SP base units BU type A0 or A1. Width is 15 mm, height 73 mm, depth 58 mm. The module auto-encodes its address on the backplane, supports firmware updates, and provides I&M data (I&M0 through I&M3) for asset management. Diagnostic capabilities include wire-break and short-circuit detection, a red/green DIAG LED and per-channel red LED. The analog section is isolated with 707 V DC type test.
