6ES7137-6BD00-0BA0 - Siemens
MPN6ES7137-6BD00-0BA0
Active

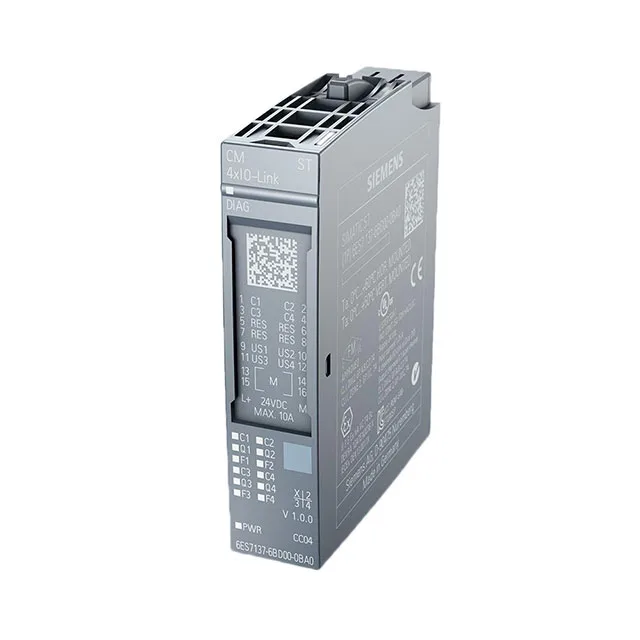

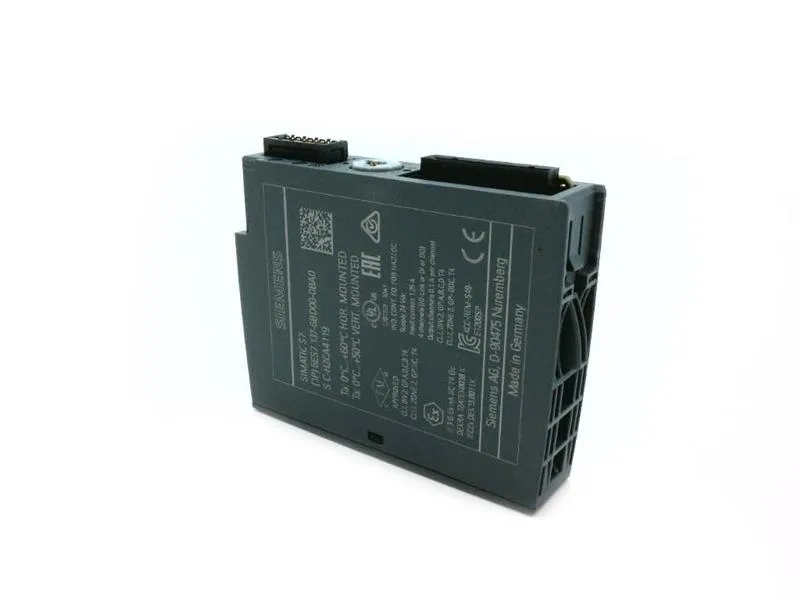

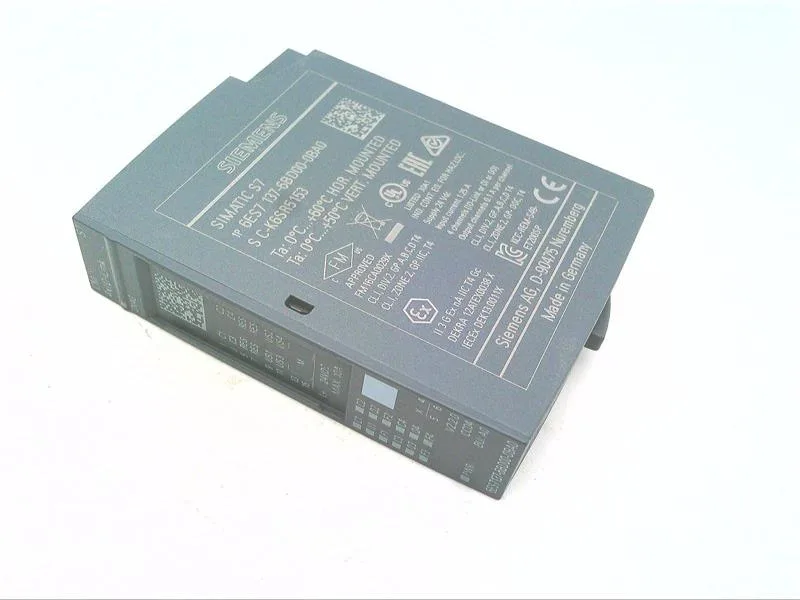

SIMATIC ET 200SP, CM 4xIO-Link ST Communication module IO-Link Master V1.1
$156.21Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Configurable from STEP 7 TIA Portal version | STEP 7 V15 or higher |
| Firmware version | V2.2.2 |
| Hardware functional status (FS) | FS20 |
Communication
| Parameter | Value |
|---|---|
| I&M data support | Yes; I&M0 to I&M3 |
| Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V; 20.5 V if IO-Link is used, as the supply voltage for IO-Link devices has to be at least 20 V at the master. |
| Current consumption, max. | 45 mA; without load |
| Power loss (typ.) | 1 W |
| Short-circuit protection | Yes |
| Isolation test voltage | 707 V DC (type test) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal install, min. | -30 °C |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | -30 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 13 mm |
| Height | 73 mm |
| Depth | 58 mm |
MPN
6ES7137-6BD00-0BA0
