Siemens 6ES7138-4CB11-0AB0

Siemens 6ES7138-4CB11-0AB0 SIMATIC DP PM-E Power Module, 24-

MPN 6ES7138-4CB11-0AB0

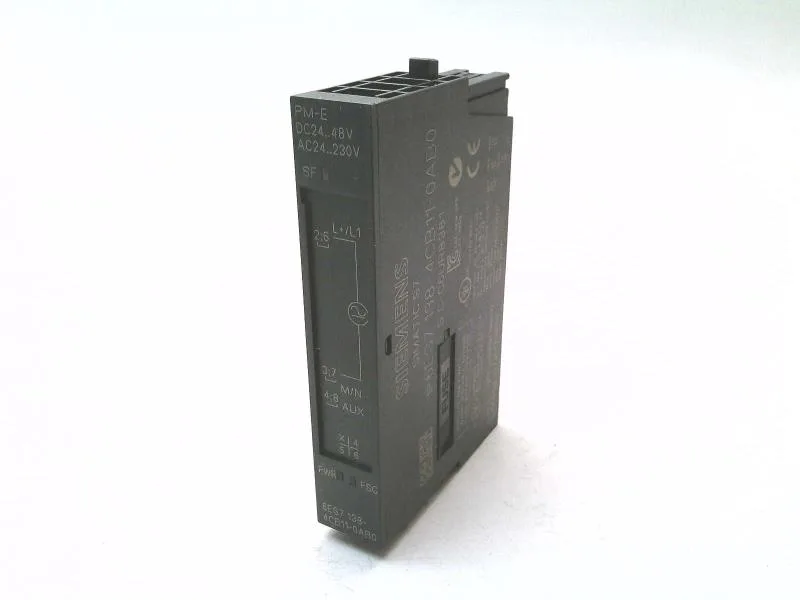

Siemens SIMATIC DP PM-E power module for ET 200S, 6ES7138-4CB11-0AB0, 24-48 V DC / 24-230 V AC input, with diagnostics and integrated fuse, 15 mm wide, 52 mm deep, 5 W max power loss.

$19.91 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7138-4CB11-0AB0 specifications
ParameterValue
Depth52 mm
Width15 mm
Height81 mm

Product details

The 6ES7138-4CB11-0AB0 is a SIMATIC DP PM-E power module for the ET 200S distributed I/O system. It accepts dual-range supply — 24-48 V DC or 24-230 V AC — and feeds the backplane bus and connected electronic modules. The integrated diagnostics and fuse cover the module group downstream, so a blown load circuit doesn't take down the entire station. At 15 mm wide and 52 mm deep, this module occupies a single ET 200S slot on the DIN rail. The 5 W maximum power loss is the heat it dumps into the enclosure; factor that into the panel thermal budget when populating adjacent slots.

Integration notes

Snaps onto the standard 35 mm DIN rail inside the ET 200S mounting rail. The 15 mm width means it consumes one slot position — plan the I/O group layout so the PM-E sits at the start of the segment, per Siemens topology rules. The 24-230 V AC range covers both European 230 V line and North American 120 V control circuits without a separate transformer tap.

MPN
6ES7138-4CB11-0AB0
