What it is and why it matters for uptime

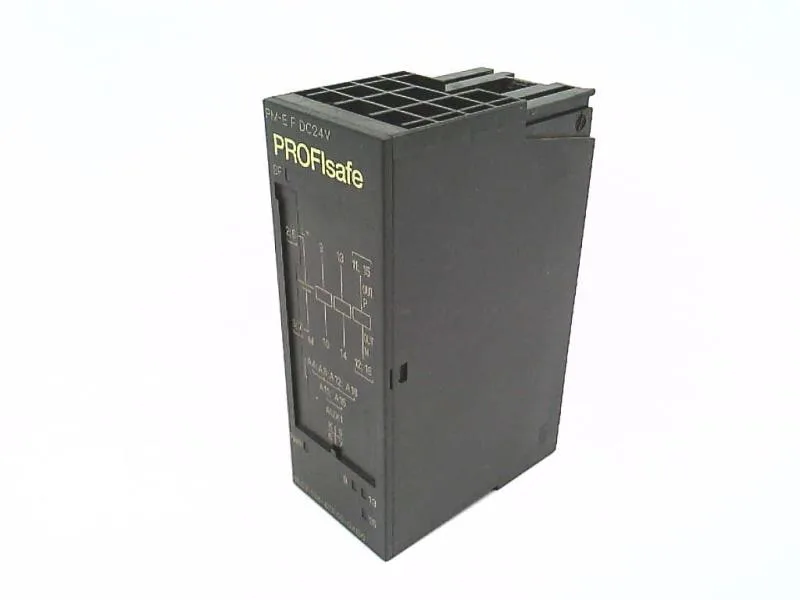

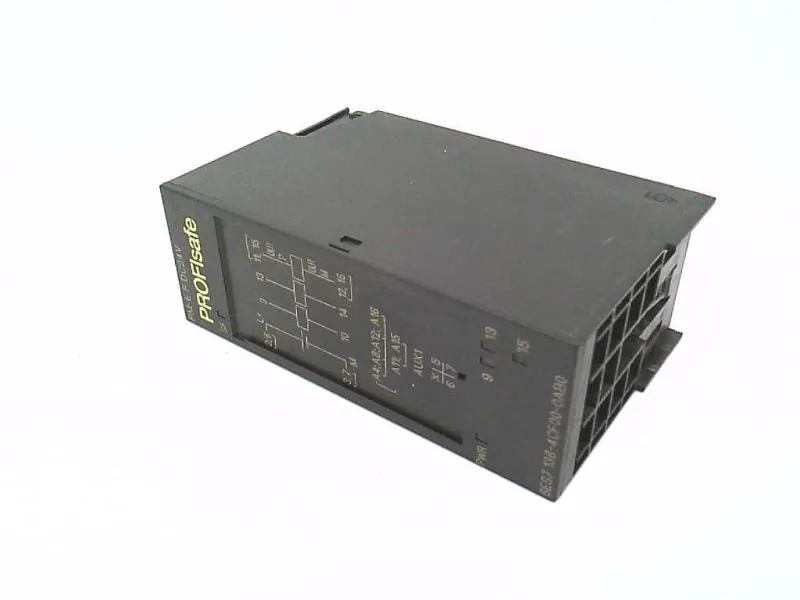

The 6ES7138-4CF00-0AB0 is a SIMATIC DP power module from the ET 200S family, engineered for PROFIsafe safety applications up to Category 4 (EN 954-1). It supplies 24 V DC load voltage to a station segment while feeding the safety bus and monitoring for faults. In a data-center or industrial safety loop, this module is the single point of load-power distribution — its electronic short-circuit protection means no external fuse to blow, and the group error SF (red) LED flags a fault before the safety function is lost. But note: there is no reverse polarity protection, so wiring discipline is non-negotiable during install or swap.
Installation fit: 30 mm on the rail
Width is 30 mm — a single-wide ET 200S module. That leaves room on the DIN rail for additional I/O or a second power module for redundant feed. No external fuseholder to carve out space for; the short-circuit protection is built in. The rated load voltage PWR (green) LED and status indicator per digital output? No, this is a power module, not an output module — the green PWR LED confirms the load voltage bus is up. The group error SF (red) LED lights on a safety fault. No reverse polarity protection means verify L+ and M orientation before inserting the terminal block. Module mounts on the ET 200S rail and connects via the backplane bus. The missing load voltage behavior is configurable (disable/enable) — set it to disable outputs on power loss to avoid a run-to-safe condition? Depends on the safety function.
