Siemens 6ES7138-4DA03-0AB0 — Digital Output Modules

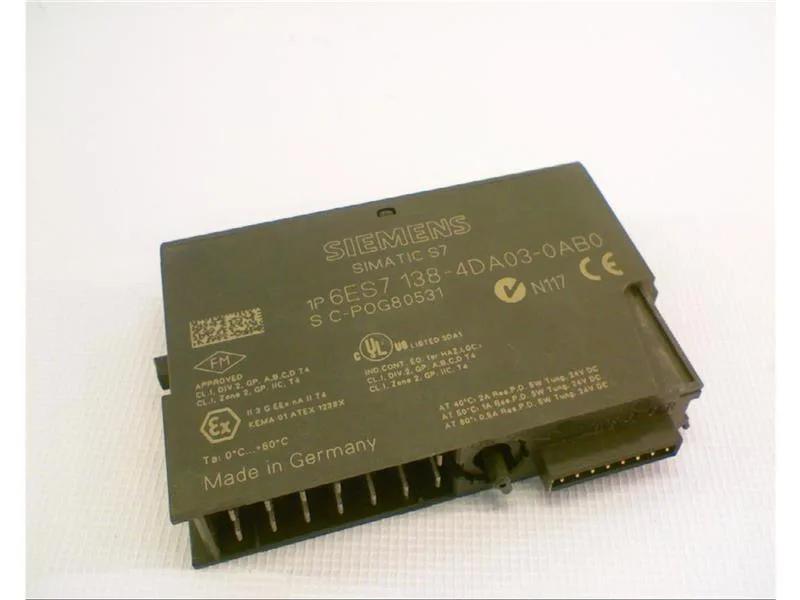

Siemens 6ES7138-4DA03-0AB0 ET 200SP Counter Module

MPN6ES7138-4DA03-0AB0

Siemens SIMATIC ET 200SP, 6ES7138-4DA03-0AB0, counter / digital input/output module, 1 counter input 32-bit, 1 DI, 1 DO, 24 V DC, 15 mm wide.

$152.40Ref. price · indicative, final on quote
Siemens 6ES7138-4DA03-0AB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7138-4DA03-0AB0 — Outputs
ParameterValue
Digital outputs1
6ES7138-4DA03-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)2 mA; 2 A (40 °C); 1 A (50 °C); 0.5 A (60 °C)
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Output voltage at signal "1" (min.)L+ (-1 V)
Residual current at signal "0", max.0.5 mA
Power dissipation (typ.)1 W
Inductive shutdown voltage clampL+ (-50 to -60 V)
Isolation between channels and backplane busYes
6ES7138-4DA03-0AB0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes
Diagnostics functionYes
Short-circuit response threshold (typ.)2.6 A to 4 A
Output can drive a digital inputYes
6ES7138-4DA03-0AB0 — Performance
ParameterValue
Output switching delay 0 to 1, max.100 µs
Switching frequency, inductive load, max.2 Hz
Switching frequency, lamp load, max.10 Hz
6ES7138-4DA03-0AB0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.600 m
Cable length, shielded, max.1 000 m
Width15 mm
Height81 mm
Depth52 mm
Weight (approx.)40 g

Product details

The 6ES7138-4DA03-0AB0 is a single-channel counter module for the Siemens ET 200SP distributed I/O system. It packs a 32-bit counter (up to 100 kHz), one digital input, and one digital output into a 15 mm-wide slice, saving panel space without sacrificing diagnostics. Powered at 24 V DC with reverse-polarity protection.

Input and output characteristics

The digital input is switched for signal '1' from +11 V up to L+ (-1 V), typical sinking 9 mA. The output is rated 24 V DC, 500 mA maximum with short-circuit protection; switching frequency reaches 100 Hz resistive load. For sensor interfacing, it supports 2-wire sensors (Type 2) and directly controls other digital inputs.

Module occupies 15 mm rail width, 81 mm height, 52 mm depth. Unshielded cable runs up to 600 m and shielded up to 1 000 m.

Frequently asked questions

What is the width and depth of this module?

The module is 15 mm wide, 81 mm high, and 52 mm deep. It fits a standard ET 200SP rail slot.

Will the 6ES7138-4DA03-0AB0 replace the 6AG1123-2DB03-2AX0 without rewiring?

No, the 6AG1123-2DB03-2AX0 is a SIPLUS variant of a different module type. You must confirm that the I/O function, voltage, and bus interface match your application before swapping.

MPN
6ES7138-4DA03-0AB0
