Siemens 6ES7138-4DF11-0AB0 — PLC Communication Modules

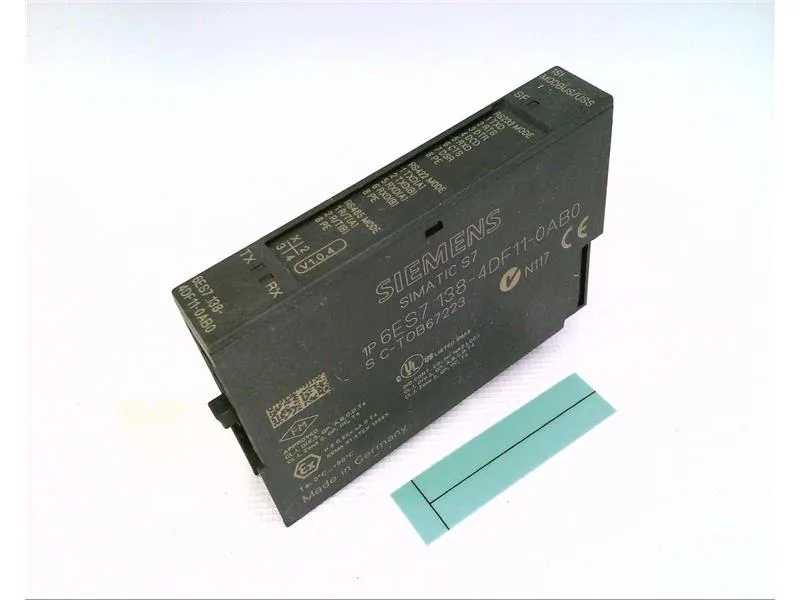

Siemens 6ES7138-4DF11-0AB0 SIMATIC DP Serial Interface Modul

MPN6ES7138-4DF11-0AB0

SIMATIC DP, Electronics module for ET 200S, 1 SI serial interface 1-channel, 15 mm width, RS232/422/485, MODBUS/USS, 24 V DC, 0-60 °C.

$342.90 – $504.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7138-4DF11-0AB0 — Communication
ParameterValue
Transmission rate, max.115.2 kbit/s; half duplex: 110, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, 76 800, 115 200 bps
6ES7138-4DF11-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Power loss (typ.)1.2 W
Reverse polarity protectionYes
6ES7138-4DF11-0AB0 — Environmental
ParameterValue
Operating temperature, max.60 °C
Operating temperature, min.0 °C
6ES7138-4DF11-0AB0 — Mechanical
ParameterValue
Width15 mm
Height81 mm
Depth52 mm

Product details

The 6ES7138-4DF11-0AB0: It can send and receive up to 32 bytes per message with certain IM151-1 versions (otherwise 8 bytes). Parity is selectable as none, odd, or even, but USI only allows even. There's reverse polarity protection on L+, and isolation between the serial port and the backplane.

I've seen folks wonder if the 6ES7138-4DE02-0AB0 (a counter module) is a drop-in — it's not. That part is 30 mm wide, has digital I/O and counter inputs, and does not support serial protocols at all. No wiring swap will make this do the other's job; they're built for completely different tasks. Stick with the right module for the right port.

Qualified to order against an RFQ; we can source this for your BOM line. No need to hunt for obsolete substitutes — it's alive and well.

Frequently asked questions

What serial protocols does the module support?

It supports MODBUS and USS, and can operate as RS232, RS422, or RS485.
