Siemens 6ES7138-4FB00-0AB0 — Digital Output Modules

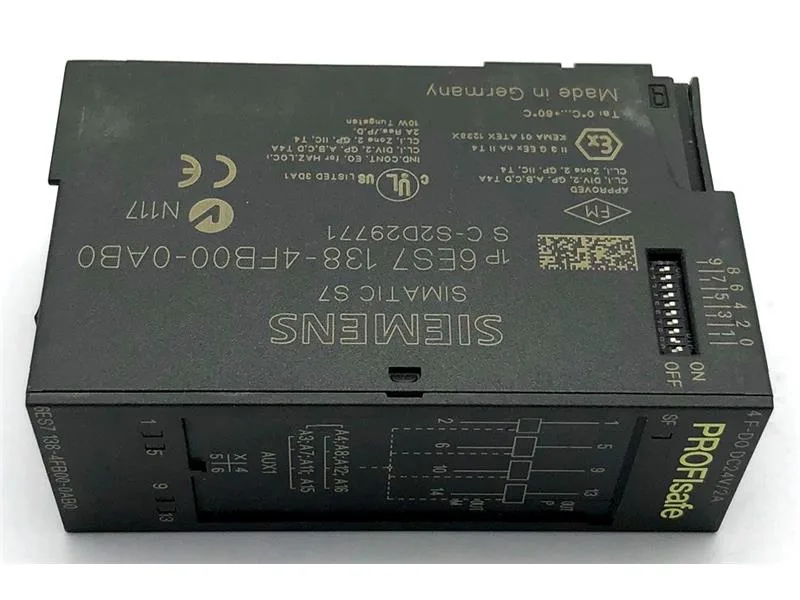

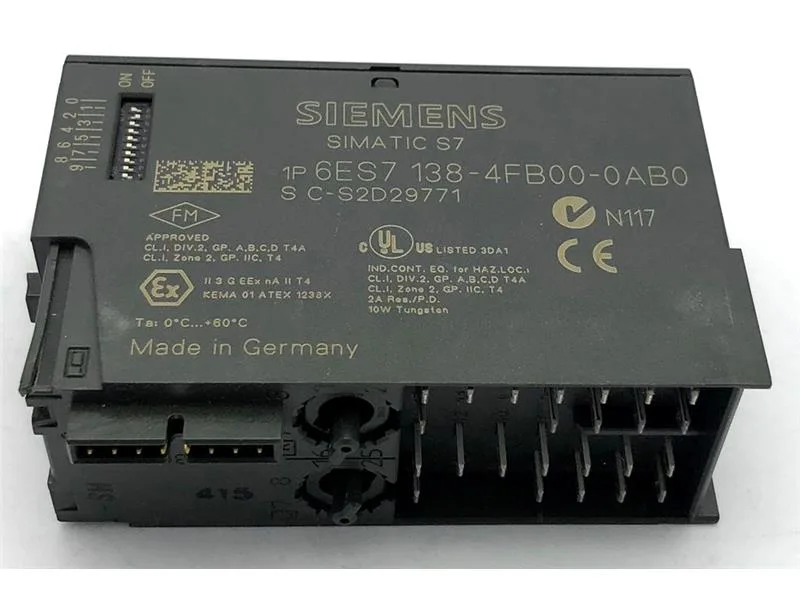

Siemens 6ES7138-4FB00-0AB0 ET 200S DO, 4x2A, SIL 3

Name: 6ES7138-4FB00-0AB0
Brand: Siemens
SKU: 6ES7138-4FB00-0AB0
Availability: LimitedAvailability
Author: Huaqiang Hank

MPN6ES7138-4FB00-0AB0

Siemens SIMATIC ET 200S digital output module, 4 channels, 2 A rated, SIL 3, Cat. 4, wire-break detection.

$181.61Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7138-4FB00-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7138-4FB00-0AB0 — Outputs
Parameter	Value
Digital outputs	4

6ES7138-4FB00-0AB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Output current, resistive load, max.	30 Hz
Output current at signal "1" (rated)	2 A
Output current, max. per circuit / per module	2.4 A
Total output current per module, max.	6 A
Output voltage at signal "1" (min.)	L+ (-2,0 V), current sourcing switch: L+ (-1,5 V), voltage drop on current sinking switch: max. 0.5 V
Residual current at signal "0", max.	0.5 mA; Current-sourcing: max. 0.5 mA; Current sinking: max. 4 mA
Power dissipation (typ.)	3.5 W
Inductive shutdown voltage clamp	L+ (-47 V)
Load resistance, upper limit	1 kΩ
Load resistance, lower limit	12 Ω
Isolation between channels	No
Isolation between channels and backplane bus	Yes

6ES7138-4FB00-0AB0 — Protection & Diagnostics
Parameter	Value
Reverse polarity protection	No
Diagnostics function	Yes
Short-circuit response threshold (typ.)	Response threshold (short-circuit): 5 to 12 A; response threshold (external short-circuit to ground): 5 to 12 A; response threshold (external short-circuit to P potential): 25 to 45 A
Wire-break detection	Yes
Redundant load control	No
Output can drive a digital input	No

6ES7138-4FB00-0AB0 — Performance
Parameter	Value
Switching frequency, inductive load, max.	0.1 Hz
Switching frequency, lamp load, max.	10 Hz

6ES7138-4FB00-0AB0 — Mechanical & Connection
Parameter	Value
Cable length, unshielded, max.	200 m
Cable length, shielded, max.	200 m
Width	30 mm
Height	81 mm
Depth	52 mm
Weight (approx.)	85 g

Product details

Digital output slice for ET 200S

The Siemens 6ES7138-4FB00-0AB0 is a four-channel digital output module for the ET 200S distributed I/O system, rated at 2 A per channel and delivering SIL 3 and Cat. 4 in safety applications. Operated from 24 V DC, the module draws 100 mA from the load supply typical and 28 mA from the backplane bus, with a total power loss of 3.5 W. Dimensions are 30 mm wide, 81 mm high, and 52 mm deep, fitting a single slot in the ET 200S terminal block carrier.

Safety and diagnostics

Rated to SIL 3 and Cat. 4, and carries AK 6, making it appropriate for fail-safe output circuits in machine safety. Wire-break detection on each channel monitors the load circuit; a group error LED (SF, red) lights on fault, and the module reports diagnostic data to the controller. Switching frequency depends on load type: 30 Hz resistive, 10 Hz lamp, 0.1 Hz inductive. The per-channel rated current of 2 A applies across the module total of 6 A maximum.
