Siemens 6ES7138-4FB02-0AB0

Siemens 6ES7138-4FB02-0AB0 ET 200SP DQ 4x24VDC/2A SIL3

MPN 6ES7138-4FB02-0AB0

Siemens SIMATIC ET 200SP, digital output module DQ 4x24VDC/2A, 4 channels, 2A rated, SIL 3, diagnostics, wire-break detection, width 30 mm.

$77.77 – $190.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7138-4FB02-0AB0 specifications
ParameterValue
Depth52 mm
Width30 mm
Height81 mm

Product details

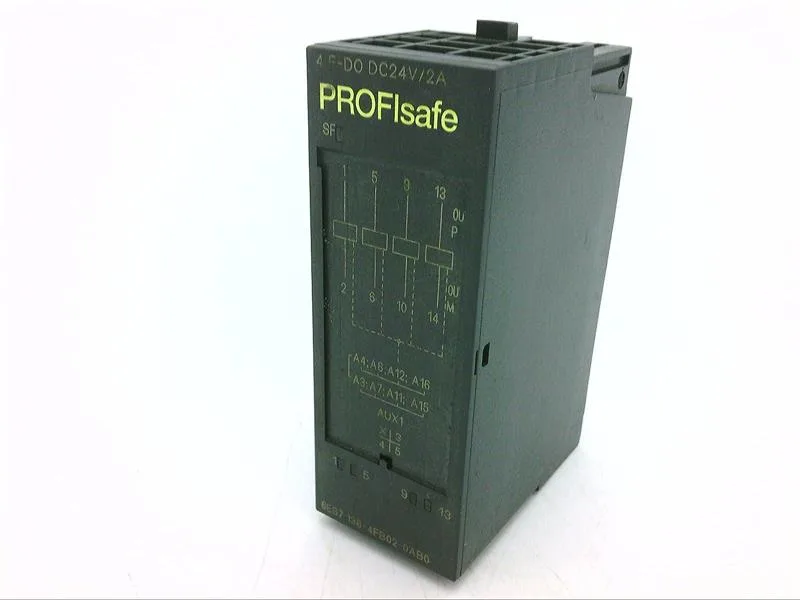

The Siemens 6ES7138-4FB02-0AB0 is an ET 200SP digital output module providing four 24 V DC outputs rated at 2 A each, with integrated diagnostics for wire-break and short-circuit, and certifications for SIL 3 and Category 4.

Module width 30 mm, depth 52 mm, height 81 mm. Per-channel rated current is 2 A; total module current limited to 6 A. Switching frequency: 30 Hz with resistive loads, 0.1 Hz with inductive loads, 10 Hz with lamp loads. Reverse polarity protection is not fitted — verify L+ wiring. Cable runs: shielded or unshielded up to 200 m. Channels are not isolated from each other but are isolated from the backplane bus.

MPN
6ES7138-4FB02-0AB0
