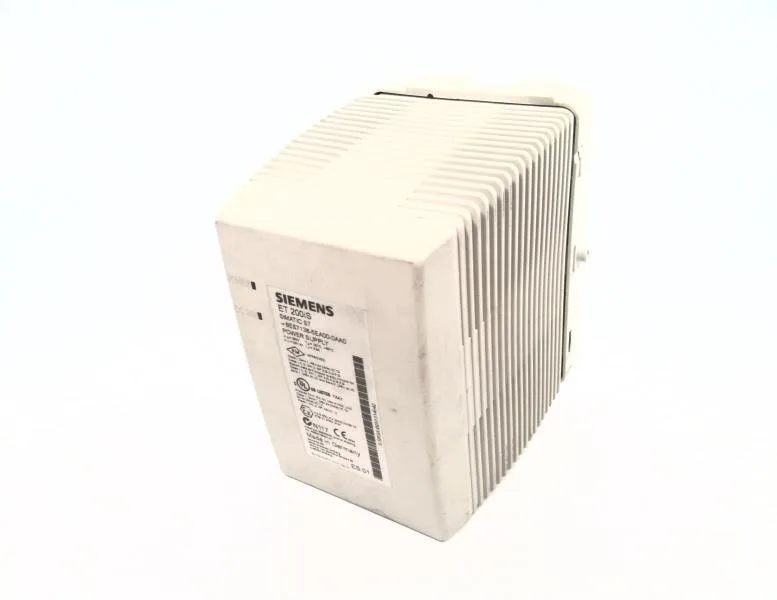

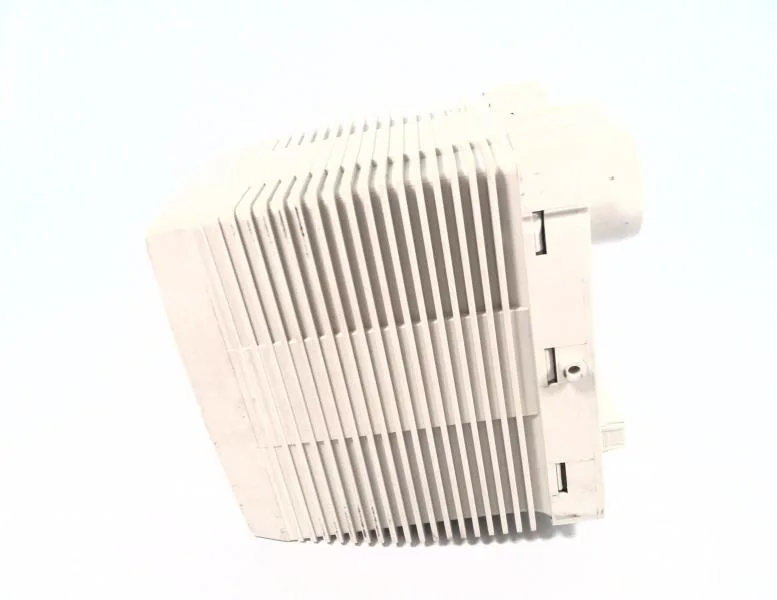

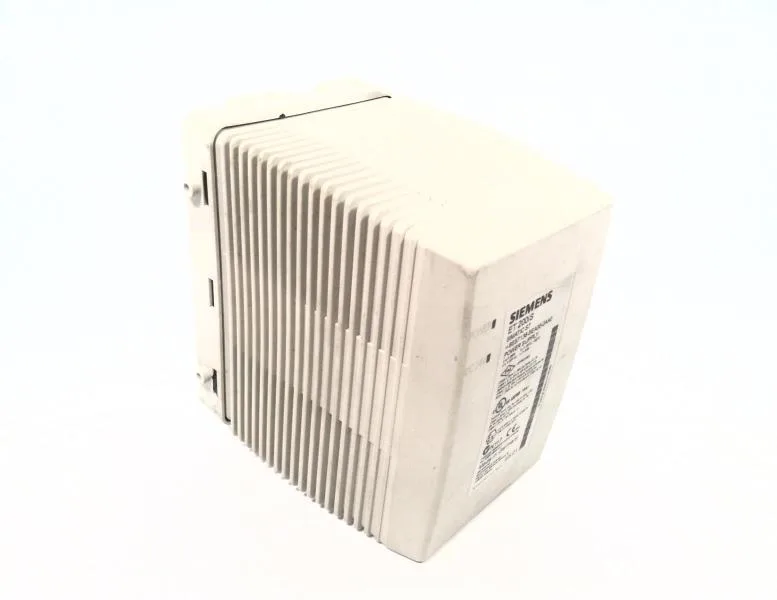

SIMATIC DP 6ES7138-5EA00-0AA0 Power Supply, 24 V DC, 150 mm

MPN6ES7138-5EA00-0AA0

Siemens SIMATIC DP 6ES7138-5EA00-0AA0 power supply module for ET200iS, 24 V DC, 150 mm depth, 150 mm height, 96.5 mm width, diagnostics, reverse polarity protection.

Siemens 6ES7138-5EA00-0AA0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7138-5EA00-0AA0 — Communication
ParameterValue
Diagnostics functionYes
6ES7138-5EA00-0AA0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption, max.2 800 mA
Reverse polarity protectionYes
Isolation test voltage1 500 V AC between supply voltage and all secondary voltages, 500 V AC between all output voltages
6ES7138-5EA00-0AA0 — Mechanical
ParameterValue
Width96.5 mm
Height150 mm
Depth150 mm
6ES7138-5EA00-0AA0 — Other specifications
ParameterValue
AlarmsNo
Weight, approx.2 500 g
Power loss, max.14 W
Type of protection acc. to FMAvailable soon: FM 3611: Class I, Division 2, Group A-D, Class I, Zone 2 or FM 3610: Class I, Zone 1, Tu = -20 °C to +60 °C
Design of electrical isolationbetween supply voltage and power bus, between supply voltage and backplane bus as well as PROFIBUS DP interface, between power bus and backplane bus as well as PROFIBUS DP interface, between backplane bus and PROFIBUS DP interface
Rated load voltage PWR (green)Yes
Status indicator output 24 v OK (green)Yes
Mains (voltage failure stored energy time)20 ms; To backplane bus / electronics of the IM 151-2 and to PROFIBUS-DP Ex i interface
Type of protection acc. to EN 50020 (CENELEC)II2G EEx de [ia/ib] IIC/IIB T4, Tu = -20 °C to +60 °C (Tu = +60 °C for horizontal mounting)

Product details

Lead – Integration & Compliance

The 6ES7138-5EA00-0AA0: Rated 24 V DC input, with reverse polarity protection and a diagnostic status indicator for 24 V OK. Power loss max 14 W and current consumption max 2 800 mA — factors for enclosure thermal management and backplane budget. Isolation tested at 1 500 V AC between supply voltage and all secondary voltages, and 500 V AC between all output voltages.

Hazardous area approvals: CENELEC II2G EEx de [ia/ib] IIC/IIB T4, Tu = -20 °C to +60 °C. FM 3611 Class I, Division 2, Group A-D, Zone 2 and FM 3610 Class I, Zone 1 are listed as 'available soon' — request the final certificate from Siemens for your validation package.

Installation & Integration

Electrical isolation design: separate between supply voltage and power bus, between supply voltage and backplane bus as well as PROFIBUS DP interface, and between power bus and backplane bus as well as PROFIBUS DP interface. This multi-layer isolation simplifies intrinsic safety barriers. Mains/voltage failure hold-up time: 20 ms to the backplane bus / electronics of the IM 151-2 and to PROFIBUS-DP Ex i interface. Sufficient for orderly shutdown in a safety loop.

Frequently asked questions

What hazardous area certifications does this module carry?

It holds CENELEC II2G EEx de [ia/ib] IIC/IIB T4 certification. FM approval (Class I, Division 2, Zone 2 and Class I, Zone 1) is listed as 'available soon'.

What are the key power ratings for cabinet design?

Input: 24 V DC, maximum current consumption 2 800 mA, maximum power loss 14 W.

MPN
6ES7138-5EA00-0AA0
