The 6ES7138-7EC00-0AA0: Production status is active – no end-of-life notice on record. No direct replacement; specify this exact order code for your ET200iSP backplane. Sourced to order; submit an RFQ with your BOM line. No functional substitute exists in this form factor.

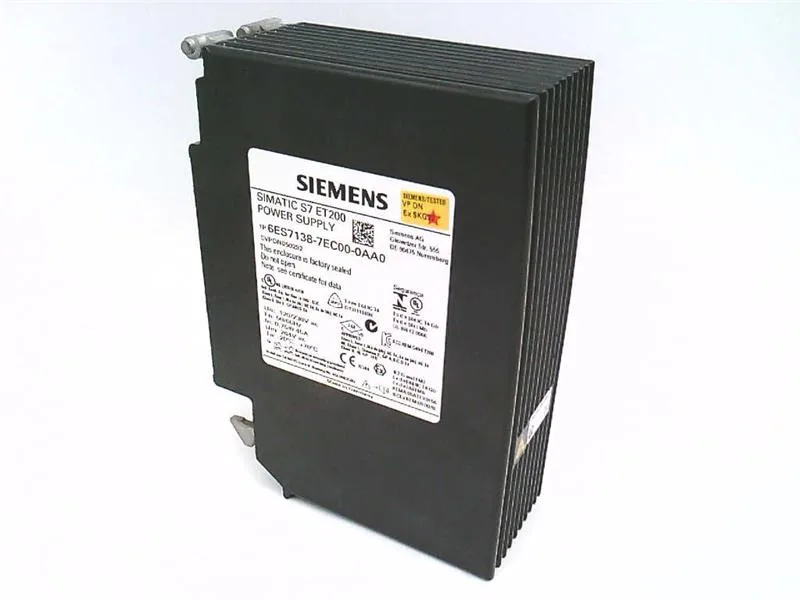

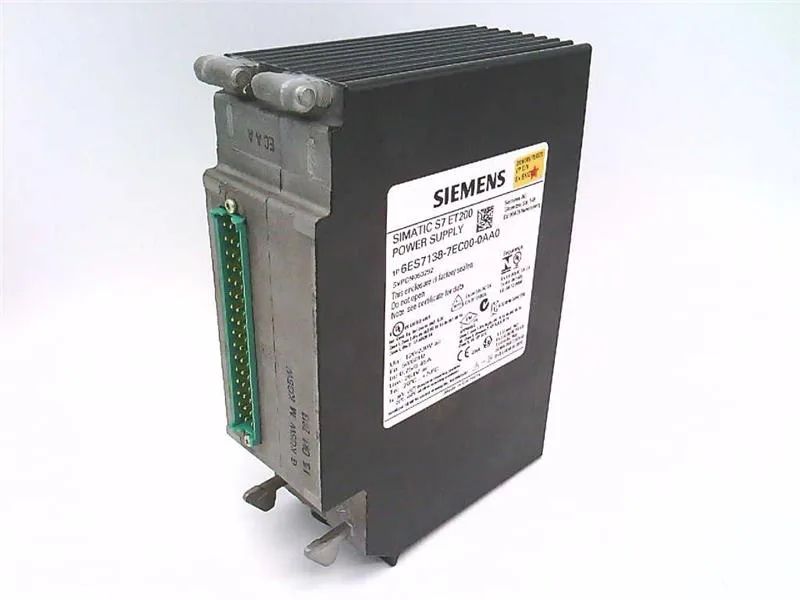

Siemens 6ES7138-7EC00-0AA0 SIMATIC DP Power Supply, 120/230
MPN6ES7138-7EC00-0AA0
Active
Siemens SIMATIC DP, power supply module 120/230 V AC for ET200iSP, Ex db eb [ib] IIC T4 Gb, 190x60x136.5 mm, 2.7 kg.
$953.77 – $1,953.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Power loss (typ.) | 5 W; 5 W + 1.2 x total power loss of the electronics modules |
| Parameter | Value |
|---|---|
| Group fault indicator (SF, red LED) | No |
| Parameter | Value |
|---|---|
| Height | 190 mm |
| Width | 60 mm |
| Depth | 136.5 mm |
| Weight (approx.) | 2 700 g |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Parameter | Value |
|---|---|
| Rated value (AC) | 230 V; 120/230 V AC |
| Parameter | Value |
|---|---|
| Alarms | No |
| ATEX marking | Ex de [ib]IIC T4 |
| Power loss, max. | 21.3 W |
| Status indicator | Yes |
| Primary (Secondary) | Yes |
| From supply voltage l1, max. | 1.04 A; at rated voltage 230 VAC:0.45A at rated voltage 120 VAC:0.75A |
| Permissible range, lower limit | 47 Hz |
| Permissible range, upper limit | 63 Hz |
| Diagnostic information readable | Yes; via IM 152 |
| Between supply voltage and electronics | No |
Product details
MPN
6ES7138-7EC00-0AA0
