What this module is and what it handles

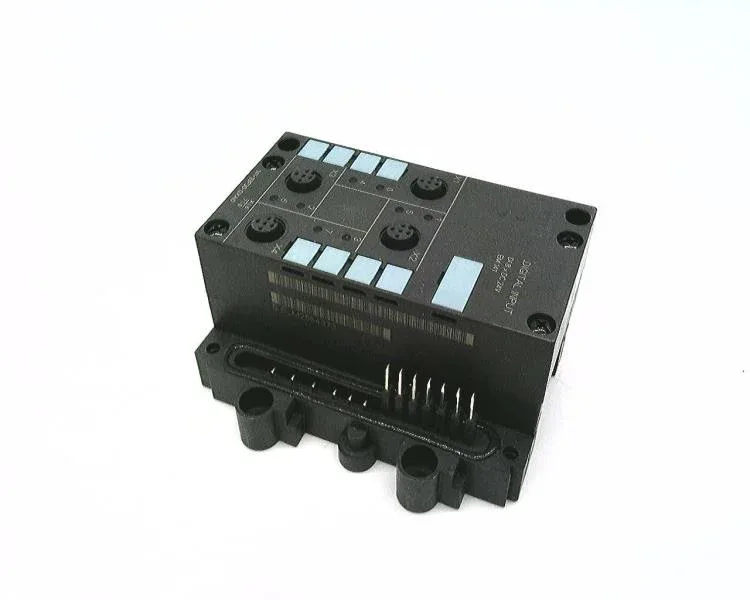

The 6ES7141-1BF00-0XB0 is a SIMATIC S5/S7 basic module BM141 for the ET200X distributed I/O family. It brings 8 digital inputs at 24V DC to an IP65-rated 5-pin M12 housing, suited for direct mounting on machine frames in wet or dusty areas. The integrated PROFIBUS DP interface runs at 12 Mbaud and carries a double-assignment feature—meaning a single bus connection can pass data through to a downstream ET200X module, reducing cabling on a drop.
Integration notes for the panel
Mounts as a fieldbox—IP65 housing allows placement near sensors without an enclosure. Power and PROFIBUS arrive through the integrated T-connector on the M12 bus in; the double-assignment port passes traffic downstream. Verify slave address assignment via the rotary switch on the module face before commissioning. Input groups share a common reference; ensure 24V DC return is properly distributed across all eight channels.
