Siemens 6ES7141-1BF01-0AB0 — Digital Input Modules

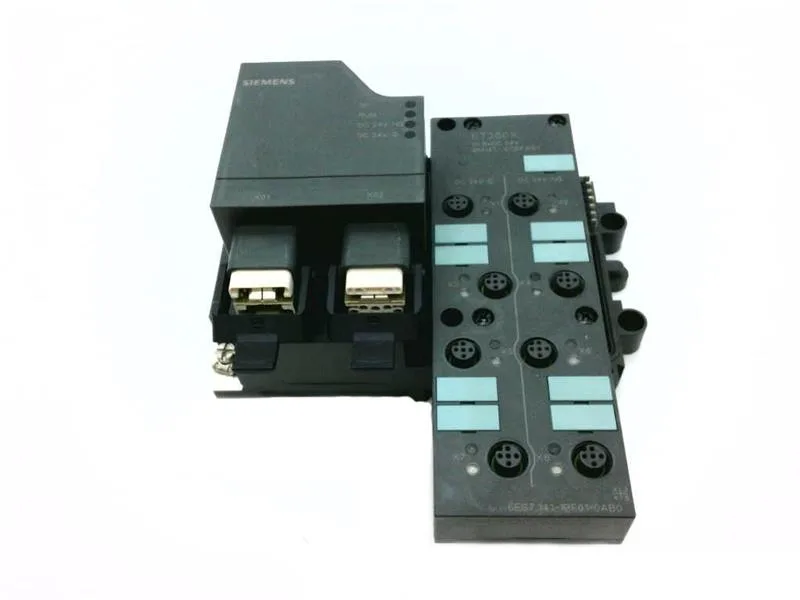

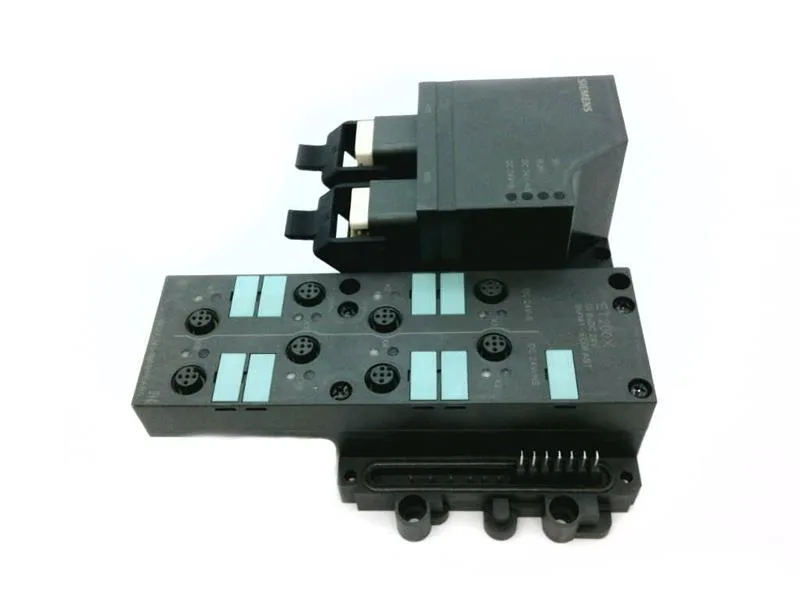

Siemens 6ES7141-1BF01-0AB0 ET200S DI/DO Module, 8 DI/8 DO, P

Name: 6ES7141-1BF01-0AB0
Brand: Siemens
SKU: 6ES7141-1BF01-0AB0
Availability: LimitedAvailability
Author: Coldchain Camila

MPN6ES7141-1BF01-0AB0

Siemens ET200S, 6ES7141-1BF01-0AB0, Digital I/O Module, 8 DI, 8 DO, 24 V DC, PROFIBUS DP.

$1,754.51Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7141-1BF01-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7141-1BF01-0AB0 — Inputs
Parameter	Value
Number of digital inputs	8; 8 process channels DI, single channel connector
Max. inputs, up to 40 °C	1 A
2-wire sensor support	Yes

6ES7141-1BF01-0AB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Input voltage at signal "1"	13 to 30V
Input voltage at signal "0"	-3 to +5V
Input current at signal "1" (typ.)	7 mA
Power loss (typ.)	3.5 W
Current consumption from backplane bus (5 V DC), max.	180 mA
Permissible quiescent current, 2-wire sensor, max.	1.5 mA
Cable length, unshielded, max.	30 m; for signal lines

6ES7141-1BF01-0AB0 — Timing
Parameter	Value
Input delay 0 to 1, min.	1.2 ms
Input delay 1 to 0, min.	1.2 ms
Input delay 0 to 1, max.	4.8 ms
Input delay 1 to 0, max.	4.8 ms

6ES7141-1BF01-0AB0 — Diagnostics & Isolation
Parameter	Value
Short-circuit protection	Yes; Electronic
Diagnostics function	Parameterizable
Diagnostic alarm	Yes
Isolation between channels	No
Isolation between channels and backplane bus	No
Isolation test voltage	500 V DC
Status indicator per channel (green)	Yes

6ES7141-1BF01-0AB0 — Mechanical
Parameter	Value
Depth	110 mm; 90 when screw mounted
Height	180 mm; 174 when screw mounted
Width	175 mm; 180 when screw mounted

Product details

The Siemens 6ES7141-1BF01-0AB0 is a digital input/output module with 8 inputs and 8 outputs, a PROFIBUS DP interface, and an active lifecycle status. It runs on 24 V DC and draws 180 mA from the 5 V backplane bus.

The module supports diagnostic alarms, a parameterizable diagnostics function, and status LEDs per digital input (green). It also includes FREEZE and SYNC capabilities for synchronized acquisition.

Mounting and expansion

Dimensions change depending on mounting: screw-mounted reduces depth from 110 mm to 90 mm, width from 175 mm to 180 mm, and height from 180 mm to 174 mm. Account for these two sets when laying out the panel and routing wiring. Expand up to 7 additional modules (including a maximum of 6 pneumatic interface modules) on the same rack. The PROFIBUS DP interface handles up to 12 Mbit/s; transmission rate is set automatically.
