Siemens 6ES7141-1BF12-0XB0 — Digital Input Modules

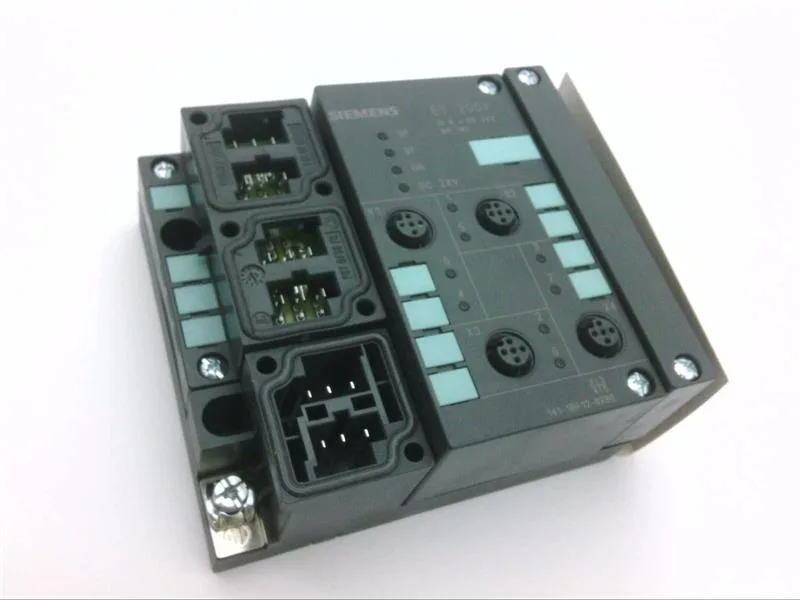

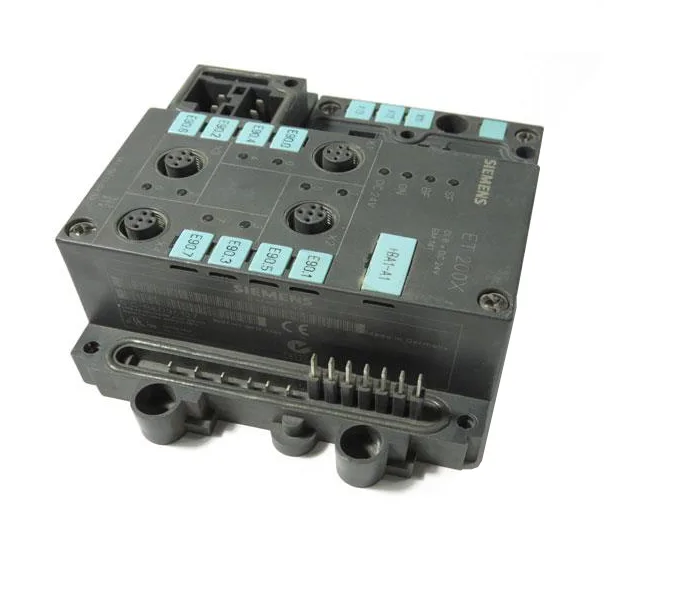

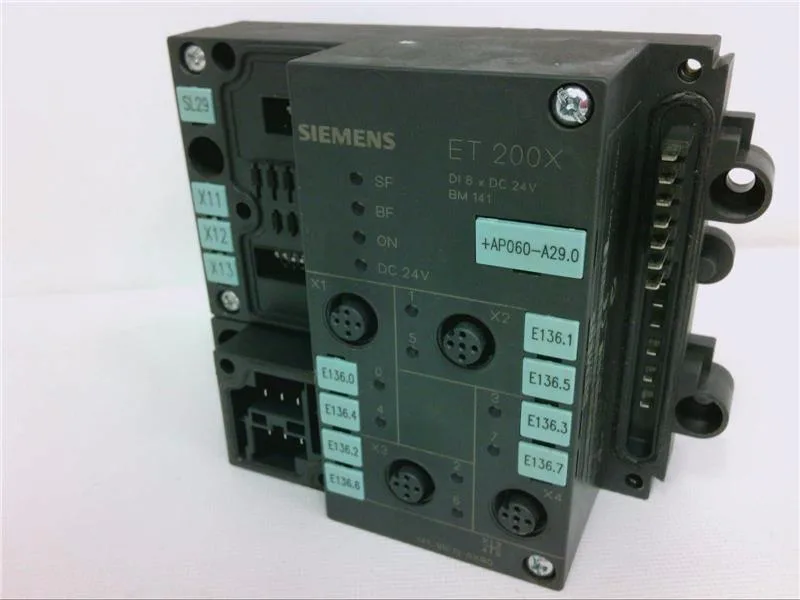

Siemens 6ES7141-1BF12-0XB0 ET 200X Basic Module

MPN6ES7141-1BF12-0XB0

***Spare part*** SIMATIC DP, Basic module BM 141 ET 200X, 8 DE 24 V DC, 5-pole M12, double assigned, IP66/67 int. PROFIBUS DP interface 12MBit/s, int. SV connections

$904.88Ref. price · indicative, final on quote
Siemens 6ES7141-1BF12-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7141-1BF12-0XB0 — Inputs
ParameterValue
Number of digital inputs8
Max. inputs, up to 40 °C0.9 A
2-wire sensor supportYes
6ES7141-1BF12-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Input voltage at signal "1"13 to 30V
Input voltage at signal "0"-3 to +5V
Input current at signal "1" (typ.)7 mA
Power loss (typ.)3.5 W
Permissible quiescent current, 2-wire sensor, max.1.5 mA
Cable length, unshielded, max.30 m
6ES7141-1BF12-0XB0 — Timing
ParameterValue
Input delay 0 to 1, min.1.2 ms
Input delay 1 to 0, min.1.2 ms
Input delay 0 to 1, max.4.8 ms
Input delay 1 to 0, max.4.8 ms
6ES7141-1BF12-0XB0 — Diagnostics & Isolation
ParameterValue
Short-circuit protectionYes; Electronic
Diagnostics functionParameterizable
Diagnostic alarmYes
Isolation between channelsNo
Isolation test voltage500 V DC
Status indicator per channel (green)Yes
6ES7141-1BF12-0XB0 — Mechanical
ParameterValue
Depth55 mm
Height110 mm
Width134 mm
MPN
6ES7141-1BF12-0XB0
