8 digital inputs on a 5-pin M12, IP65-rated for distributed I/O

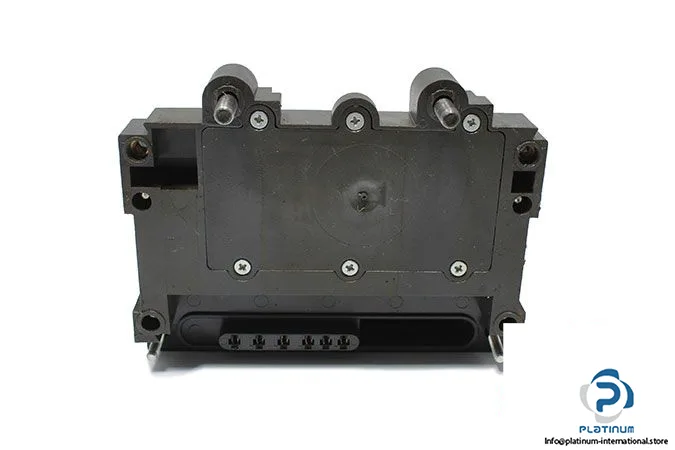

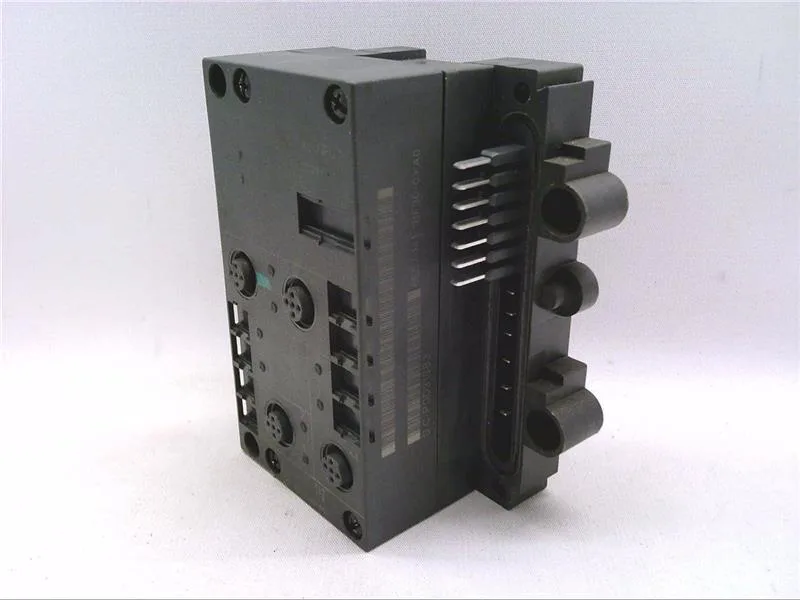

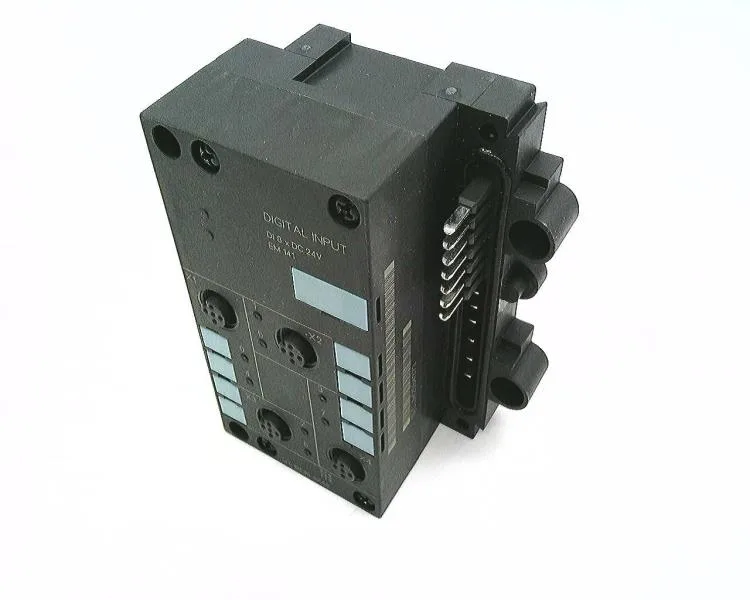

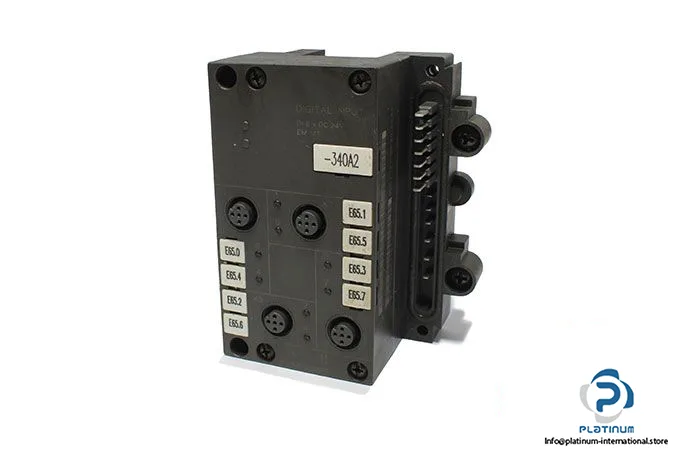

The Siemens 6ES7141-1BF30-0XA0 is a SIMATIC DP expansion module EM 141 for the ET 200X family, delivering 8 digital inputs at 24 V DC through a single 5-pin M12 connector per channel group. Rated IP65, this module mounts directly on the machine frame or in the field — no control cabinet required — and accepts 2-wire sensors with a permissible quiescent current up to 1.5 mA.
Input thresholds and filter timing for the commissioning engineer
Signal "0" spans -3 to +5 V; signal "1" spans 13 to 30 V, so the module works with standard 24 V DC proximity switches and pushbuttons without level shifting. The input filter is parameterizable at 0.5 / 3 / 15 / 20 ms — set 0.5 ms for fast counting edges or 20 ms to debounce mechanical contacts in a noisy environment. Transition from "0" to "1" takes 1.2 ms minimum and 4.8 ms maximum at the selected filter setting, which defines the shortest pulse the module will register.
Field wiring and power budget for the panel builder
The module draws 16 mA max from the 5 V DC backplane bus and dissipates 1.5 W typical — negligible thermal load inside a sealed IP65 enclosure. Unshielded sensor cable runs up to 30 m are permitted, which covers most machine-mounted sensor drops without special cabling. Dimensions are 87 mm wide (module body 60 mm), 110 mm high, and 55 mm deep — the M12 connectors project beyond the module face, so account for connector clearance in the enclosure layout.
